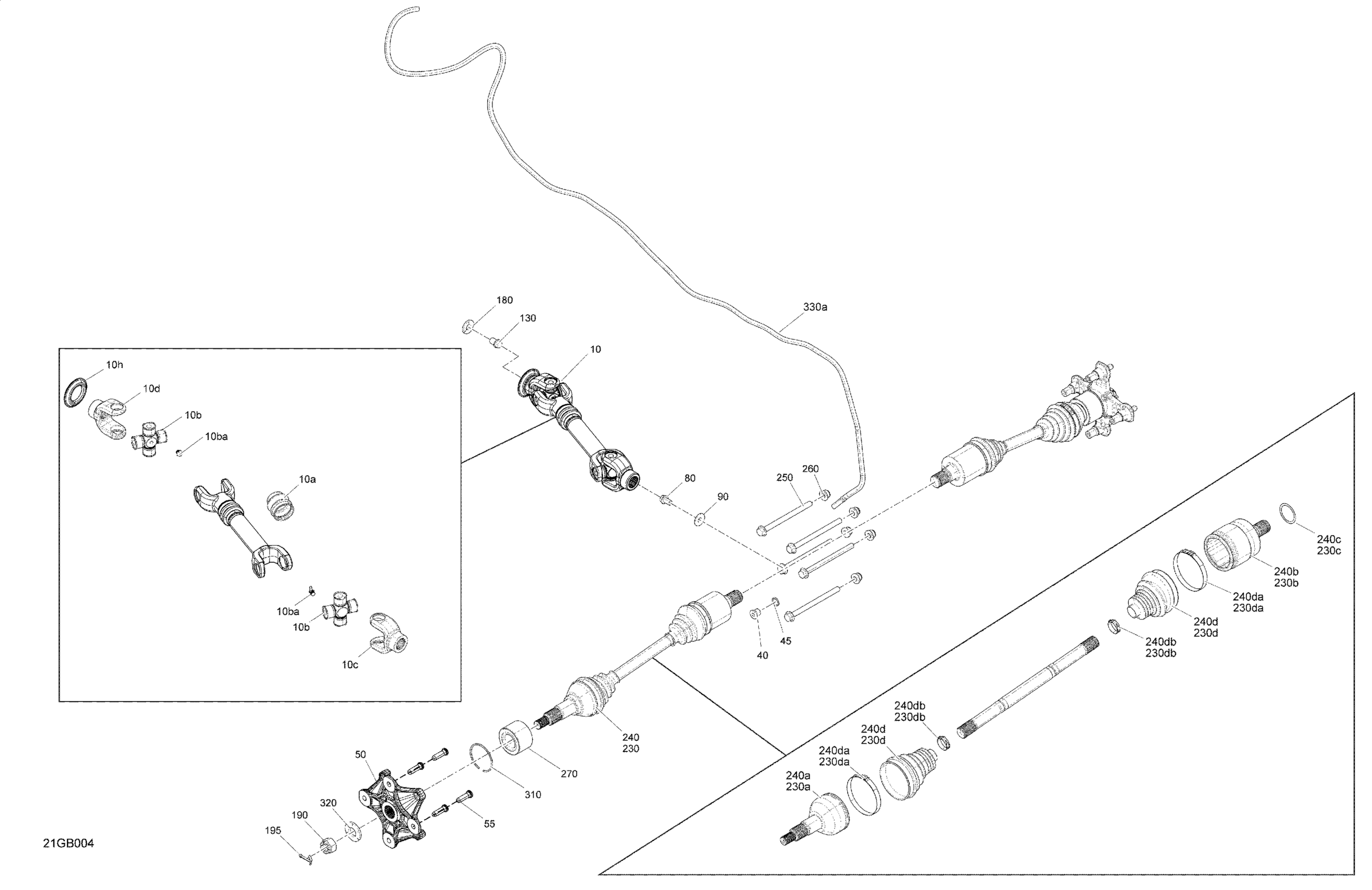

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2022 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit | Includes 10 to 10b

703501017

$241.01

10a

Rubber Boot

715900118

$13.28

10b

Universal Joint Ass'y | T3

703500846

$55.19

10ba

Grease Fitting | T3

715900295

$4.09

10c

Yoke

715900499

$23.10

10d

Yoke

715900438

$23.10

10h

Protector

705501123

$5.90

Fill Level Plug | 4X4

705500504

$8.73

Copper Washer | 4X4

705500506

$0.42

Wheel Hub

705503257

$94.00

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.00

Flat Washer M10 | 4X4

250200014

$1.34

130

Hex Flange Screw M12 X 16

250001039

$2.00

180

Conical Spring Washer M12

250200005

$3.04

190

Hex. Flange Castellated Nut M18

232291413

$3.24

195

Cotter Pin

250400071

$2.00

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$226.84

230a

CV Joint

705501776

Unavailable

230b

Plunging Joint

715900604

$102.21

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230da

Oetiker Clamp, 82.1 mm

715900241

$9.00

230db

Oetiker Clamp, 27.3 mm

715900242

$9.00

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$226.84

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$5.10

240d

Boot Kit

705501864

$39.52

240da

Oetiker Clamp, 82.1 mm

715900241

$9.00

240db

Oetiker Clamp, 27.3 mm

715900242

$9.00

250

Hex. Flange Screw M10 X 135

250001041

$5.12

260

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Ball Bearing

293350150

$52.21

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$6.06

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60
