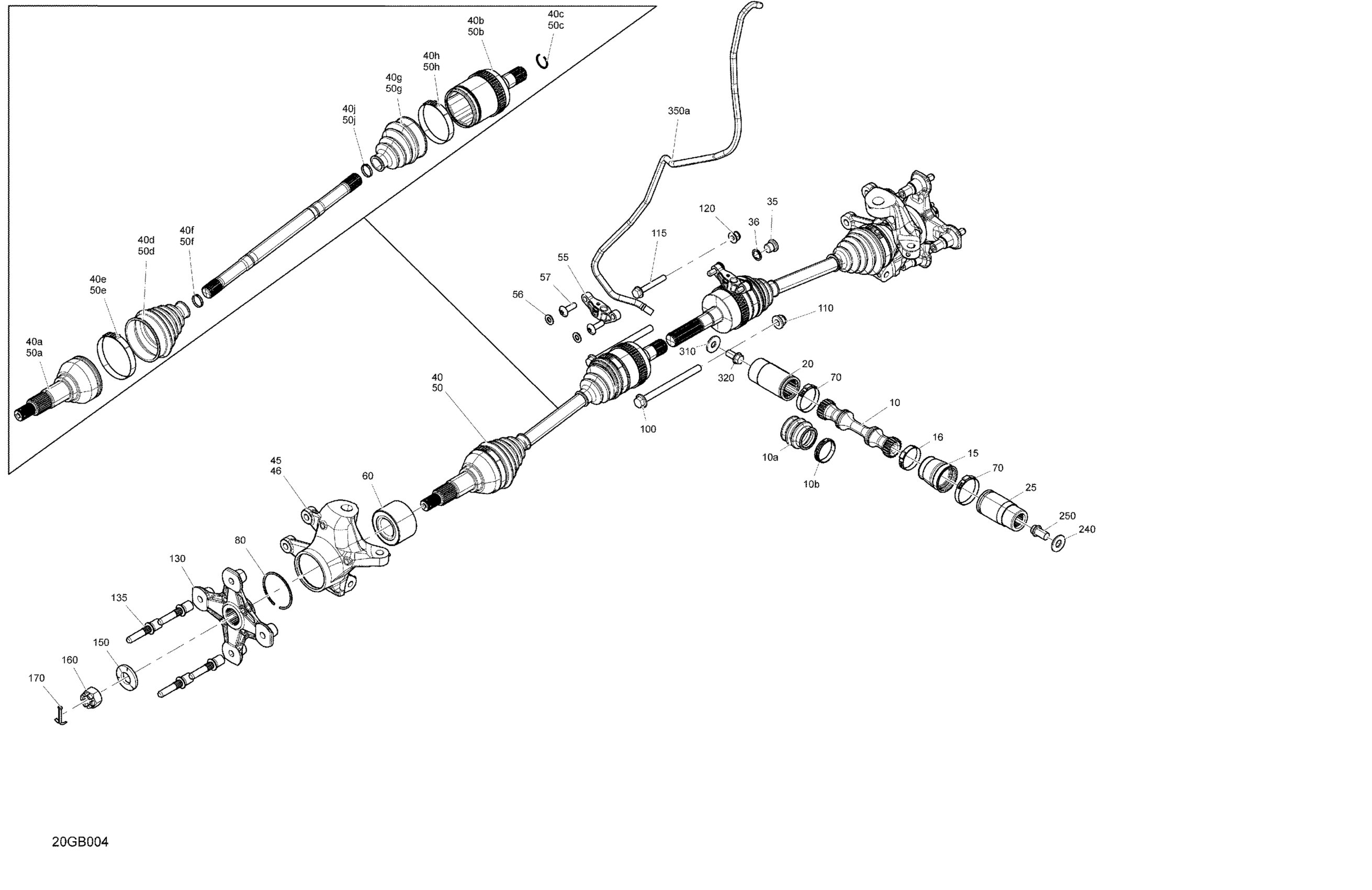

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2022 Drive - Front - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$195.49

10a

Rubber Boot

715900118

$13.28

10b

Oetiker Gear Clamp 36.1MM

509000045

$4.07

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$8.22

20

Coupling Sleeve

705401969

$26.09

25

Front Bushing Shaft Kit | 4X4

703500678

$101.46

25a

Front Bushing Shaft Kit | 4X4

703500678

$101.46

25b

Wear Ring | 4X4

705400036

$24.60

35

Fill Level Plug | 4X4

705500504

$8.73

36

Copper Washer | 4X4

705500506

$0.42

40

RH Homocinetic Joint | Includes 40 to 40f2

705402021

$226.84

40a

CV Joint

705401344

$241.01

40b

RH Plunging Joint

715900602

$102.21

40c

Circlip Joint | Not shown

705401349

$5.10

40d

Boot Kit, Wheel Side

705401345

$39.52

40e

Oetiker Clamp

715900282

$5.04

40f

Oetiker Clamp, Small

715900283

$5.04

40g

Boot Kit, Differential Side

705401346

$39.52

40h

Oetiker Clamp, Large

715900284

$5.04

40j

Oetiker Clamp, Small

715900261

$5.04

45

LH Knuckle

705403307

$167.13

46

RH Knuckle

705403308

$167.13

50

LH Homocinetic Joint | Includes 50 to 50f2

705402022

$226.84

50a

CV Joint

705401344

$241.01

50b

LH Plunging Joint

715900603

$91.01

50c

Circlip Joint | Not shown

705401349

$5.10

50d

Boot Kit, Wheel Side

705401345

$39.52

50e

Oetiker Clamp

715900282

$5.04

50f

Oetiker Clamp, Small

715900283

$5.04

50g

Boot Kit, Differential Side

705401346

$39.52

50h

Oetiker Clamp, Large

715900284

$5.04

50j

Oetiker Clamp, Small

715900261

$5.04

55

Sensor Support

705402088

$2.51

56

Flat Washer 8 mm

234081410

$0.79

57

Torx Truss M8 X 25

250000874

$2.00

60

Ball Bearing

293350150

$52.21

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$6.99

110

Hex. Flange Elastic Nut M10

233201436

$2.00

115

Hex. Flange Screw M8 X 55

207685544

$5.06

120

Hex. Flange Elastic Nut M8

233281414

$1.31

130

Wheel Hub

705503257

$94.00

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

150

Conical Spring Washer M18

250200171

$6.06

160

Hex. Flange Castellated Nut M18

232291413

$3.24

170

Cotter Pin

250400071

$2.00

240

Flat Washer M12

250200102

$2.00

250

Hex Flange Screw M12 X 20

250001042

$1.79

310

Flat Washer M10 | 4X4

250200014

$1.34

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.15

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60
