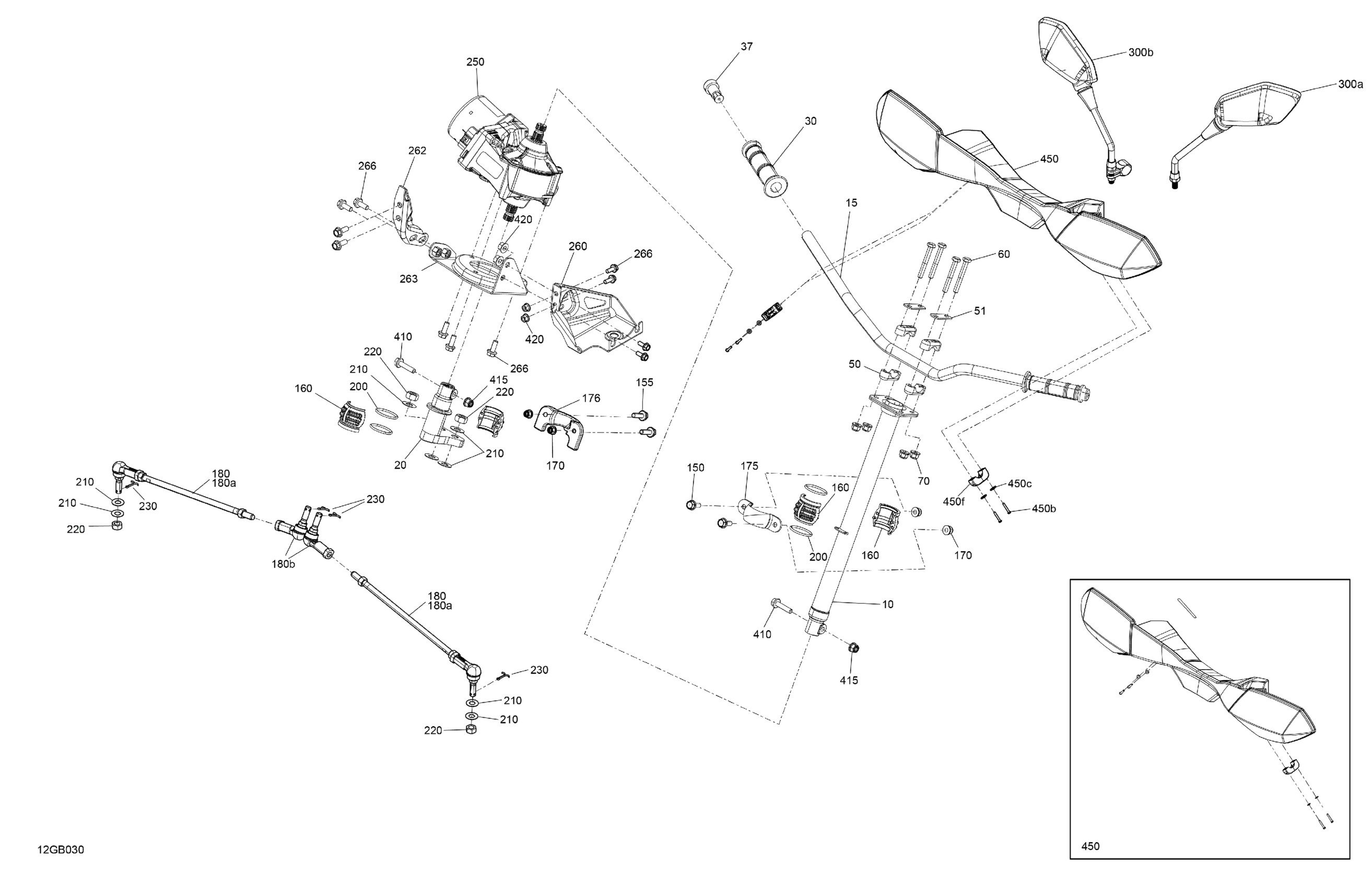

Can-Am Outlander T MAX 570 EFI - XT - T Regulation, 2022 Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$61.16

Deep Black, Handlebar

709402872

$52.96

Pitman Arm | Model With DPS Except XMR

703501160

$39.52

Handle Grip

709400493

$13.82

End Piece

709400449

$7.57

Steering Support

709401799

$20.12

Stiffner

709400509

$4.30

Hex. Screw M8 X 60

207086046

$2.64

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 25

207682544

$1.03

Spherical Half Bushing

709400783

$5.96

Hex. Elastic Flange Nut M8

233281416

$1.43

Upper Column Attachment

709400827

$0.97

Column Attachment

709401428

$35.04

Tie Rod Ass`y | Includes 15 to 17

703501038

$89.52

LH Ball Joint

709402303

$34.30

RH Ball Joint

709402302

$34.30

O-Ring

293300068

$6.07

Hardened Washer

706200281

$2.69

Hex Nut M12

250100239

$1.88

Cotter Pin

211400013

$0.31

Power Steering Ass'y | Model With DPS

709403187

$1,131.31

Power Steering Module Bracket

709402192

$22.36

RH Bracket | Model With DPS

709402185

$25.34

Power Steering Support | Model With DPS

709401743

$16.39

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

LH Rearview Mirror

708200963

$33.55

RH Rearview Mirror

708201092

$44.75

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Flange Nut

233081436

$1.87

ATV Handlebar Air Deflector Kit | Includes 450 to 450f

709402845

$91.01

DPS Decal

704902966

$10.55

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer | XT

211200035

$0.52

Mounting Clamp

517308718

$11.09
