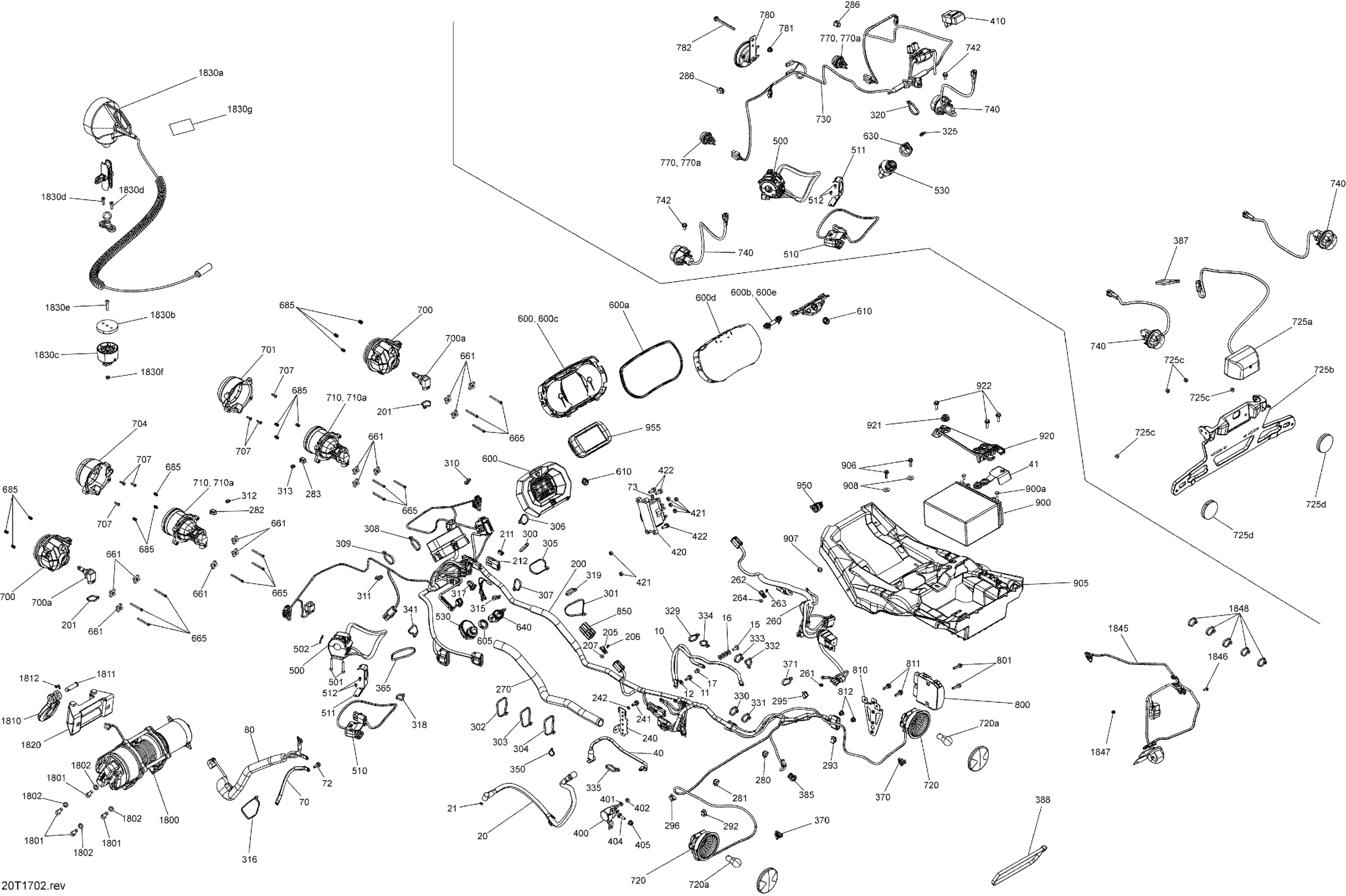

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Electrical System - All Models Diagram

Ground Cable

710004382

$17.88

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Lock Washer Helical M6

234161601

$1.06

Torx Head Screw M6 X 16

250000717

$2.00

Flat Washer

224061121

$0.51

Domed Nut M6

232361493

$2.03

Positive Cable

710004377

$24.60

Elastic Stop Nut M6

232561414

$1.78

Connector Ass'y

710004375

$30.57

Positive Cable

710004376

$43.25

Battery Cable Cap

710006729

$6.72

NEGATIVE HARNESS - Call your local BRP dealership | Package Hunter

710004379

Unavailable

Hex. Flange Screw M6 X 16

210261640

$2.00

Hex. Flange Screw M6 X 16

210261640

$2.00

Hex. Flange Screw M6 X 16

210261640

$2.00

Hex. Flange Screw M6 X 16

210261640

$2.00

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.79

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.79

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.79

External Serrated Lock Washer 6 mm

234461608

$1.06

External Serrated Lock Washer 6 mm

234461608

$1.06

External Serrated Lock Washer 6 mm

234461608

$1.06

Winch Cables

710004378

$48.48

Main Harness

710005005

$846.99

Main Harness

710005036

$846.99

Tie Wrap 142 mm

293750002

$1.01

Clip

270000141

$9.57

Pop Rivet 3/16"

390402300

$0.73

Washer | DS 650 X

391301600

$0.46

Clip

710000992

$3.88

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

Connector Bracket

710004118

$5.04

Hex. Flange Screw M6 X 20

210262040

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.06

Compressor Harness

710005160

$152.96

External Serrated Lock Washer 6 mm

234461608

$1.06

Clip

270000141

$9.57

Pop Rivet 3/16"

390402300

$0.73

Washer | DS 650 X

391301600

$0.46

Protective Tubing

710003260

$31.31

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Clip

414227300

$1.40

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap Clip

710002896

$3.93

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 368 mm

293750008

$0.97

Mount Dart

293730040

$0.99

Tie-Rap 180 mm

414115200

$0.10

Tie-Rap Clip

710002896

$3.93

Tie Wrap 368 mm

293750008

$0.97

Tie-rap 627 mm

293750041

$0.87

Starter Relay

710007777

$45.49

Lock Washer Helical M6

234161601

$1.06

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Screw M6 X 20

207662054

$0.96

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Flasher Unit

710003239

$73.10

Winch Solenoid | XT Models

710001000

$114.15

Elastic Stop Nut M6

232561414

$1.78

Hex. Flange Screw M6 X 20

210262040

$2.00

Multi-Function Handle

710004040

$158.93

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

Socket Head Screw M5 X 35

205053588

$1.79

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

Winch Switch

710005241

$153.70

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$9.54

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Switch_Ignition | Model-Europe

710007865

$64.15

Speedometer Ass'y | Package STD, DPS, Pro

710005073

$344.75

Speedometer Ass'y | Package STD, DPS, Pro

710005073

$344.75

Speedometer Ass'y | Package STD, DPS, Pro

710005073

$344.75

Speedometer Ass'y | XTP

710005075

$344.75

Speedometer Ass'y | XTP

710005075

$344.75

Trim Ring

710002092

$8.73

Lens

415129320

$22.36

Button

710001473

$11.81

Gauge Ring

415129348

$11.36

Lens | XTP

415129349

$22.36

Speedometer Button | XTP

415129355

$13.52

Safety Nut (DESS Switch)

278002963

$3.12

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

BRP Logo13 mm

704904615

$11.09

BRP Logo13 mm

704904615

$11.09

BRP Logo13 mm

704904615

$11.09

Black, Electronic Key

710000817

$53.70

Grey, Electronic Key

710002183

$53.70

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

Handle

572106600

$9.03

Hex. Screw K40 X 45

250000718

$2.00

Spring

517168600

$6.70

Low Beam | Includes 54 to 55

710006177

$108.18

Bulb 12V 55W

715900141

$38.78

RH High Front Housing

710002291

$25.34

LH High Front Housing

710002292

$20.12

Phillips Screw K40 X 16

250000723

$0.93

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

Halogen Bulb

415129249

$38.78

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

Bulb

520000758

$8.60

License Plate Light | Europe

710005563

$117.88

Plate Support | Europe

708300434

$24.60

Flange Elastic Nut M5

233251434

$1.91

Red Reflector

705011221

$11.96

Harness Ass'y | Model-Europe

710004842

$117.88

Flasher | Europe

710002964

$34.30

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

Day Light | Europe

710001726

$32.81

Cap Protector | Model-Europe

710003269

$10.12

Horn

710004791

$36.54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Screw M6 X 70

207667044

$0.81

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

Rectifier Support

710001752

$6.90

Hex. Flange Screw M6 X 20

207662044

$1.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Housing

710003006

$8.31

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Battery Support

710008370

$41.76

Hexagonal Head Screw

210262050

$2.00

Rubber Bumper

293830005

$6.12

Stainless Steel Flat Washer

234062670

$2.00

Retaining Plate

710009129

$7.09

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.96

DC Outlet

710001248

$35.79

GPS | Package LTD North America

710005034

$809.99

GPS - Call your local BRP dealership | Package LTD Europe

710005035

Unavailable

GPS - Call your local BRP dealership | Package LTD Europe

710005035

Unavailable

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Socket Head Screw M8 X 20

205082044

$1.06

Lock Washer 8 mm

234181401

$0.87

Winch Hook Kit

705014949

$23.10

Clevis Pin

250400021

$11.48

Cotter Pin

250400022

$8.40

Fairlead_Roller Kit

715007699

$74.60

Portable Headlamp | Model Hunter

710005423

$174.99

LED Headlamp Bracket | Package Hunter

710005472

$58.93

Tool Holder Base | Package Hunter

705010209

$6.60

Torx Screw M6 X 20

250000722

$1.54

Black, Torx Screw M6 X 35

250000646

$0.90

Hex. Flange Elastic Nut M6

233261494

$1.45

Warning Label | Package Hunter

704906289

Unavailable

Trailer Plug | Model T3

705205993

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Tie-Rap 180 mm

414115200

$0.10
