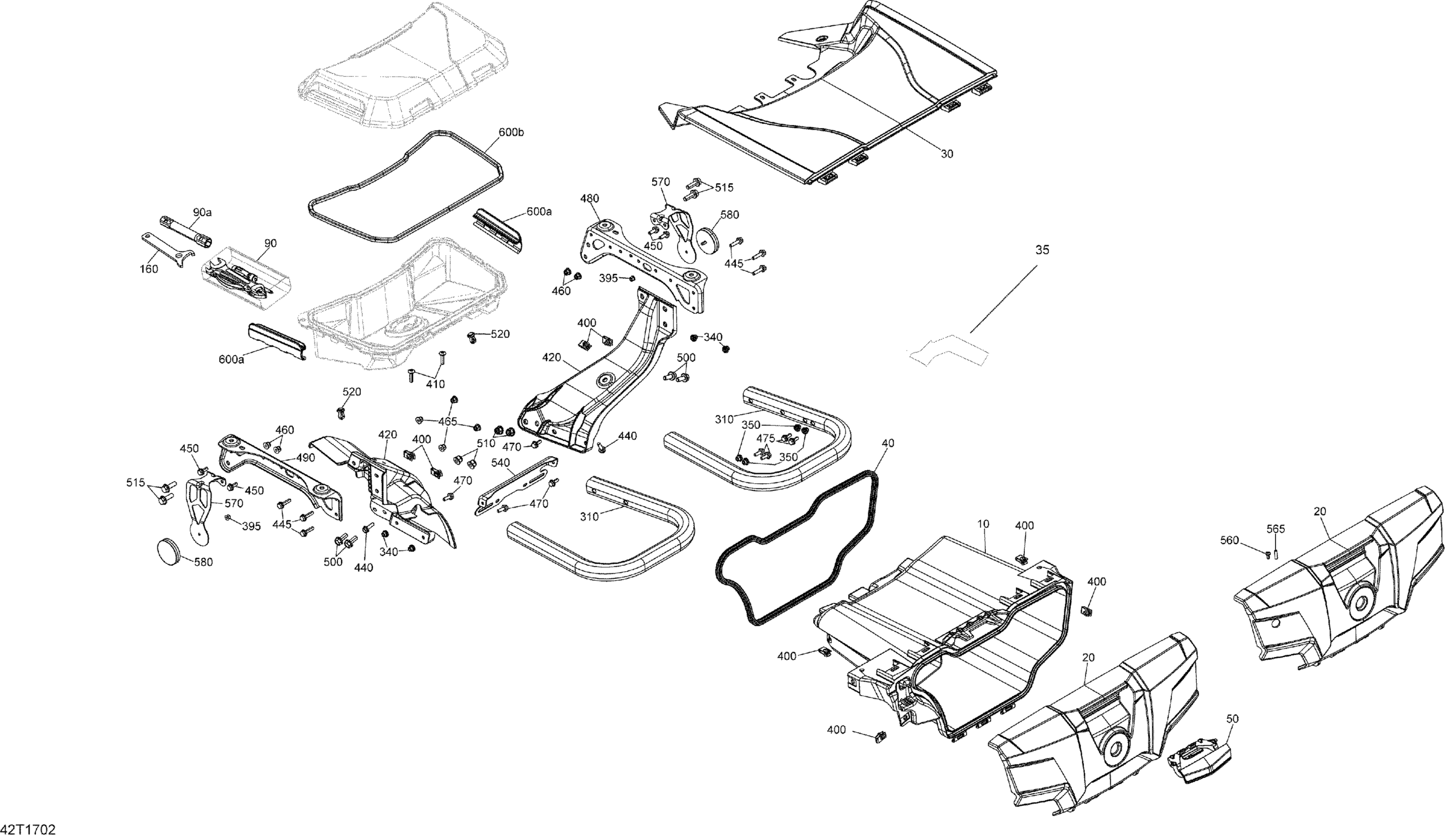

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Rear Cargo Box - All Models Diagram

Rear Storage Box

708300674

$87.66

Rear Panel

708300150

$36.89

Rear Panel | Europe

708300511

$55.35

Rear Storage Box Cover

708301212

$50.74

Rear Storage Box Cover | Model- North America

715002635

$55.35

Rear Storage Box Cover | Model- International

715002638

$59.97

Rear Storage Box Cover | Package XMR 1000 North America

715004097

$59.97

Rear Storage Box Cover | Package XMR 1000 International

715004099

$59.97

Heat Shield

707002102

$9.23

Was 293200163 Neoprene Seal

219704369

$27.66

Handle Latch

708201250

$11.54

Tool Kit

704700168

$44.99

Socket Wrench 14/16MM

529000085

$6.99

Adjustment Wrench

529000035

$2.19

Rear Bumper Ass'y

715001564

$55.35

Rear Bumper Ass'y | Model- International

715005832

$55.35

Rear Bumper Ass'y | Model- Europe

715007915

$46.12

Rear Bumper Ass'y | Model- Europe

715007915

$46.12

Black Rear Bumper Ass'y | Model Black North America

715004101

$55.35

Black Rear Bumper Ass'y | Model Black International

715004103

$54.58

Black Rear Bumper Ass'y | Model Black Europe, T3

715004104

$55.35

Black Rear Bumper Ass'y | Model Black Europe, T3

715004104

$55.35

Threaded Insert M6 X 1.0

250100242

Unavailable

Threaded Insert M6 X 1.0

250100242

Unavailable

Flange Elastic Nut M5

233251434

$1.66

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 25

250000807

$1.74

LH Cargo Support

705006997

$51.51

RH Cargo Support

705006998

$51.51

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Hex. Flange Screw M6 X 16

207661634

$1.74

LH Support

705004563

$28.43

RH Support

705004564

$28.43

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

Tuflok Plastic Rivet

293150230

$1.21

Plate Support

705004806

$14.75

Socket Head Screw M5 X 10

205951046

$2.38

Socket Set Screw M5 X 20 | Europe

206252044

$1.25

Reflector Support | Except Europe

705202576

$7.11

Red Reflector

705011221

$12.32

Box Ass'y

708200408

$80.74

Clip | Outlander Max

269501945

$15.19

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$36.89
