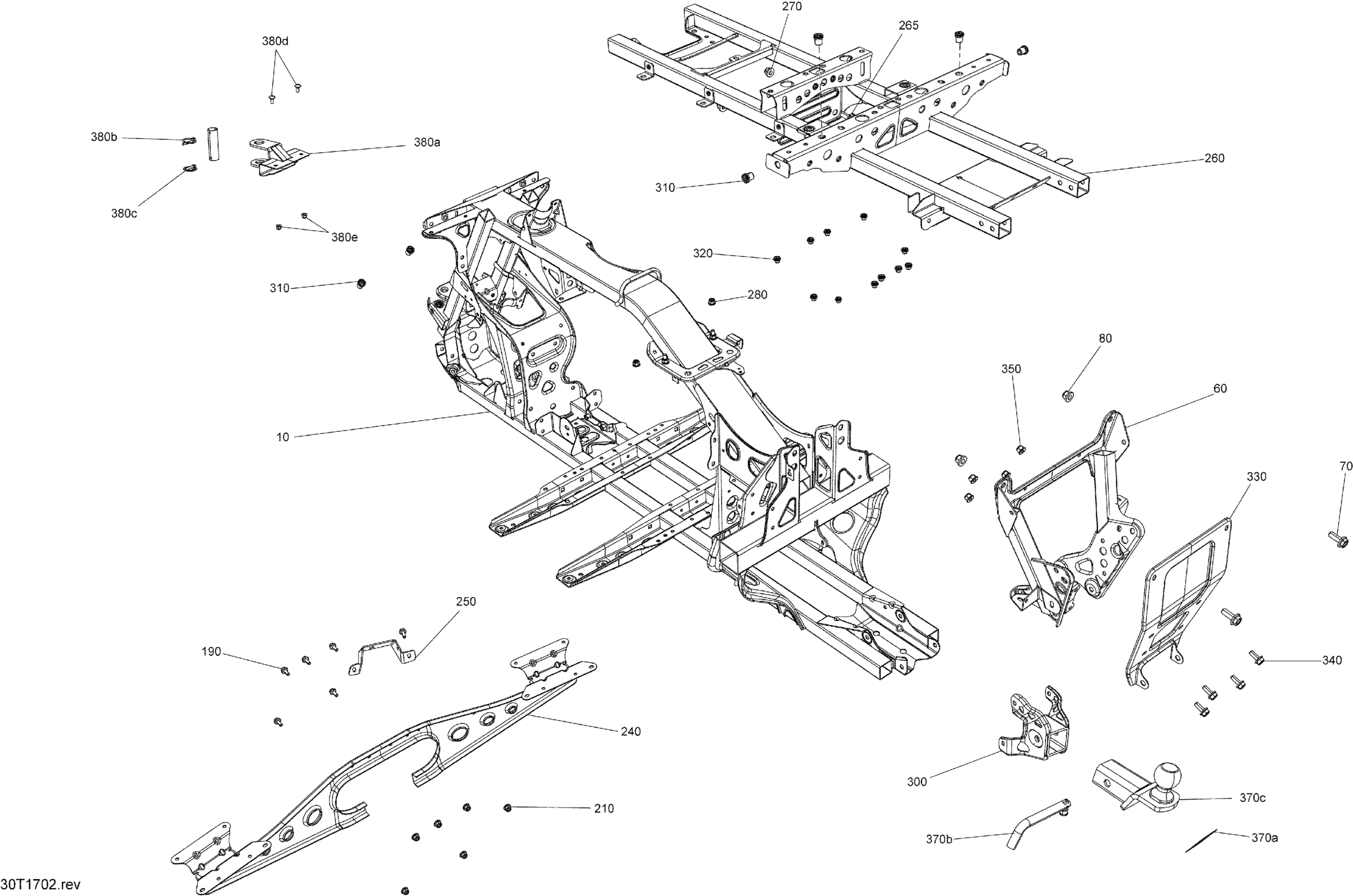

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Frame - All Models Diagram

#

Description
Price

10

Black Frame | Outlander

705206365

$1,049.99

10

Black Frame | Outlander Max

705206363

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$2.00

80

Hex. Flange Elastic Nut M10

233201436

$2.00

190

Hex. Flange Screw M6 X 16

207661644

$0.70

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

240

Footrest Support

705210817

$76.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210821

$151.99

260

Chassis Extension

705210822

$118.74

265

Hex. Flange Screw M10 X 25

207602546

$2.00

270

Hex. Flange Elastic Nut M10

233201436

$2.00

280

Hex. Flange Elastic Nut M8

233281414

$1.31

300

Trailer Hitch

715005186

$128.49

310

Insert Half Hex Body M8 x 1.25

293450307

$1.97

320

Threaded Insert M6 X 1.0

250100242

Unavailable

330

Rear Support

705203301

$43.99

330

Rear Support

705203301

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.76

350

Hex. Elastic Flange Nut M8

233281416

$1.43

370>370b

Trailer Hitch Kit | Package PRO International

705210328

$223.10

370a

Towing Capacity Label | Package PRO International

704908748

Unavailable

370b

Hitch Pin

705204490

$52.96

370>370c

REAR HITCH KIT - Call your local BRP dealership | Package PRO Europe, T3

705205995

$207.43

370a

WARNING LABEL - Call your local BRP dealership | Package PRO Europe

704902939

Unavailable

370b

Hitch Pin

705204490

$52.96

370c

BALL 50MM - Call your local BRP dealership | Package PRO Europe, T3

705202391

Unavailable

380a

Front Coupling Device

705204452

Unavailable

380a

Front Coupling Device

705205025

Unavailable

380b

Pin

605456511

Unavailable

380c

Pin

605456518

Unavailable

380d

Carriage Bolt, M8 X 20

207782044

$1.79

380e

Hex. Flange Elastic Nut M8

233281414

$1.31
