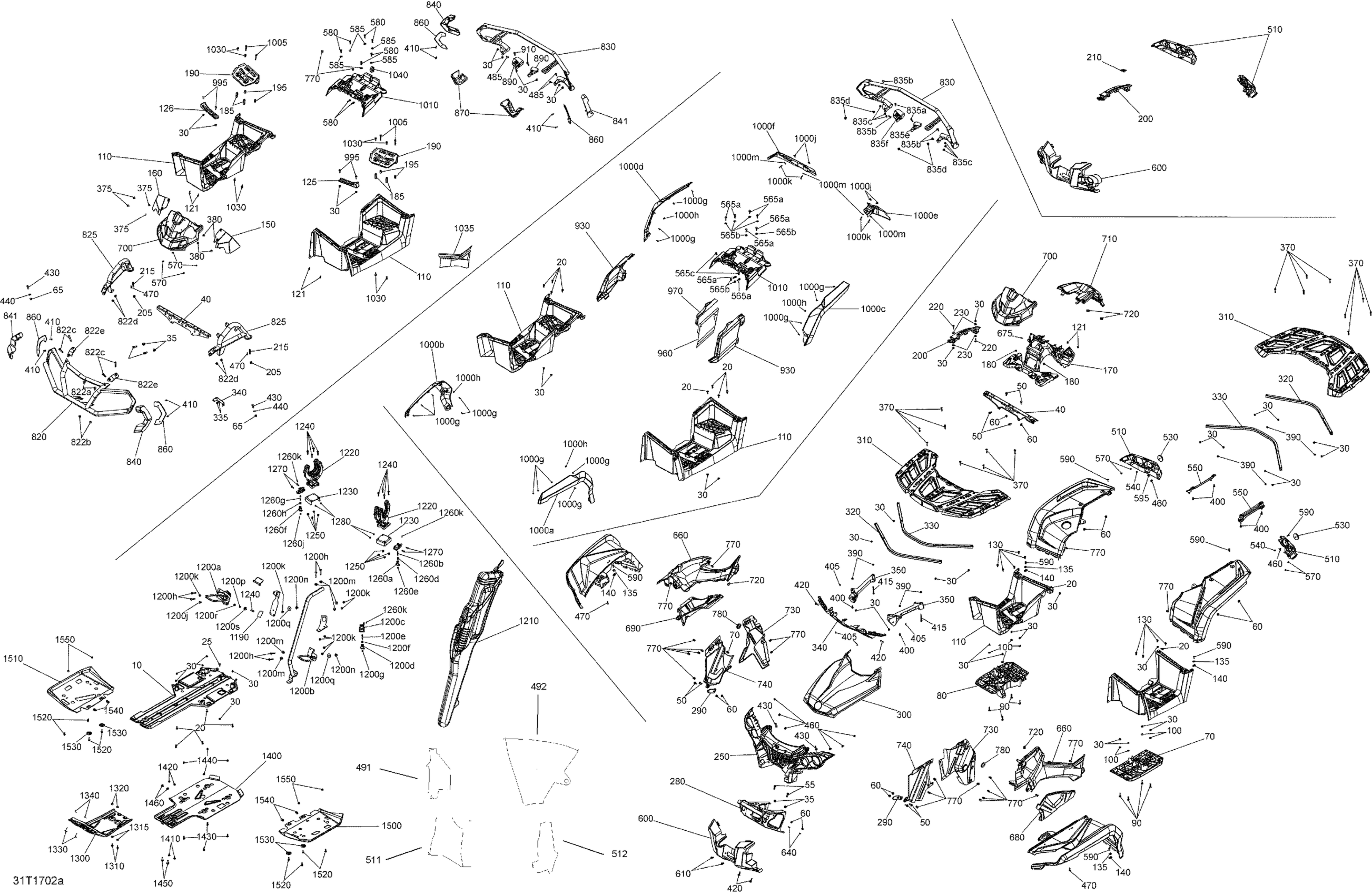

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Body And Accessories - without Fenders All Models Diagram

Protective Plate Kit

715002374

$59.67

Hex. Flange Screw M6 X 20

207662054

$0.96

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M10

233201434

$1.87

Front Bumper Center Support

705006220

$79.82

Cargo Rack Center Support

705006812

$55.19

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$2.00

Elastic Flange Nut M8

233281464

$0.96

LH Structural Footboard

705011540

$108.18

RH Structural Footboard

705011542

$95.49

Carriage Bolt M6 X 35

207763554

$1.96

Flat Washer 6 mm

234062410

$0.73

LH Step

705007040

$87.28

RH Step

705007039

$113.40

LH Footrest Max

705003525

$117.88

RH Footrest Max

705003521

$117.88

LH Step

705007040

$87.28

RH Step

705007039

$113.40

LH Footrest

705009810

$92.51

RH Footrest

705009811

$92.51

LH Footboard

705005978

$162.66

RH Footboard

705005977

$162.66

Torx Screw K50 X 16

250000720

$1.60

LH Footrest

705004352

$30.57

RH Footrest

705005395

$35.79

Hex. Flange Screw M6 X 16

207661654

$2.00

Flat Washer

224061201

$1.27

Panel Nut M6 X 1.0

250100198

$1.99

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Rubber Bumper

293830005

$6.12

Coupling Nut, Large

705006819

$11.64

Black, Footrest | Package XMR, Engine 1000R

705015693

$64.90

Coupling Nut, Short

705006818

$8.87

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Indicator | Engine 570 Europe, T3

715003979

$23.85

Indicator | Package PRO T3

715004087

$23.85

Indicator | Package PRO T3

715004087

$23.85

Indicator | Package PRO International

715004085

$23.85

Indicator | Package PRO International

715004085

$23.85

Indicator | Engine 570 Europe, T3

715003979

$23.85

Indicator | Package PRO T3

715004087

$23.85

Hex. Flange Elastic Nut M8

233281434

$2.00

Shiftgate Trim | Europe

705005003

$7.73

Socket Set Screw M8 x 50

206285044

$4.37

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Flat Washer

224061201

$1.27

Fascia

705012822

$108.18

Front Bumper Support

705016893

$314.90

Lower Fender Support

705004565

$6.19

BLACK HOOD ASS'Y - Call your local BRP dealership | Matte Black International

715003240

Unavailable

Black Hood Kit | Model White

715004076

$155.94

MIDNIGHT BLUE HOOD KIT - Call your local BRP dealership | Package LTD North America

715004080

Unavailable

MIDNIGHT BLUE HOOD ASS'Y - Call your local BRP dealership | Package LTD Except North America

715004082

Unavailable

Breakup Country, Hood Kit | Camo Model International

715003247

$732.81

Breakup Country, Hood Kit | Camo Model North America

715003245

$732.81

BRUSHED ALUMINIUM HOOD KIT - Call your local BRP dealership | Model-Brushed Aluminium North America

715002610

Unavailable

Brushed Aluminium Hood Kit | Model-Brushed Aluminium Europe

715002612

$334.30

Matte Black Hood Kit | Matte Black North America

715003238

$155.94

Grey Hood Kit | Model-Grey Nord America

715002237

$103.70

Grey Hood Kit | Model-Grey Europe

715002239

$103.70

Red, Hood Kit | Viper Red

715001543

$103.70

RED HOOD KIT - Call your local BRP dealership | Model-Red International

715002235

Unavailable

Yellow Hood Kit | Yellow

715001541

$103.70

Yellow Hood Kit | Model-XTP Europe

715002234

$103.70

Bright White Hood Kit | P-XMR White/Red/Black

708301706

$129.82

Luggage Rack Kit

715001852

$200.72

Rack Kit | Europe, Int'l

715002784

$172.36

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Hex. Flange Screw M6 X 10

210261040

$1.43

Lugage Rack Moulding

705004523

$21.61

LH Inner Fender Bracket

705007140

$18.63

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Black, Torx Screw M6 X 35

250000646

$0.90

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Washer

517124300

$0.18

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Screw K40 X 10

241140060

$1.43

Torx Screw K50 X 16

250000720

$1.60

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.00

Torx Screw M8 X 30

250000886

$2.00

Hex. Cap Screw M8 X 30

207183054

$4.15

Hex. Flange Screw M8 X 35

207683534

$2.00

Stainless Steel Flat Washer 8 mm

234081670

$0.64

Edge Clip

517302785

$0.81

Hex. Flange Screw, Scotch Grip

207551634

$1.91

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Heat Shield | Package XTP, XMR

707002104

$8.66

Heat Shield | Package XTP, XMR

707002105

$8.66

LH Rear Facia | North America, International

705006643

$14.27

RH Rear Facia | North America, International

705006650

$14.27

LH Rear Facia | Europe

705006651

$14.27

RH Rear Facia | Europe

705006652

$14.27

Heat Shield

707002103

$8.66

Heat Shield

707002107

$1.91

Red Reflector

705011221

$11.96

Flange Elastic Nut M5

233251434

$1.91

LH Support

705007277

$27.58

RH Support

705007278

$27.58

Hex Flange Screw M6 X 25

250000841

$7.06

Stainless Steel Flat Washer

234062670

$2.00

Tuflok Plastic Rivet

293150230

$1.39

Push Nut

732610072

$1.97

Hex Flange Screw M6 X 25

250000841

$7.06

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw M6 X 20

250000722

$1.54

Hex. Flange Screw M6 X 16

207661654

$2.00

Front Guard Plate | North America, International

705006299

$46.24

Front Guard Plate | North America, International

705006299

$46.24

Front Guard Plate | Europe

705006300

$39.52

Socket Screw M10 x 30 | XT

205003044

$3.00

Socket Screw M10 x 30 | XT

205003044

$3.00

Socket Screw M10 x 30 | XT

205003044

$3.00

Socket Screw M10 x 30 | XT

205003044

$3.00

Hex. Screw M8 X 20

236282054

$1.40

Hex. Screw M8 X 20

236282054

$1.40

Ring

705004497

$3.87

Black, RH Lateral Panel | Model Black T3

715004090

$238.03

Mat Black, LH Lateral Panel | Model Black T3

705009293

Unavailable

Bright White, LH Lateral Panel | P-XMR White/Red/Black

705009914

$51.46

Bright White, RH Lateral Panel | P-XMR White/Red/Black

705009915

$51.46

Brushed Aluminium LH Lateral Panel | Model-Brushed Aluminium

705008588

$272.36

Brushed Aluminium RH Lateral Panel | Model-Brushed Aluminium

705008589

$272.36

BRUSHED ALUMINIUM RH LATERAL PANEL ASS'Y - Call your local BRP dealership | Model Aluminum T3

715004092

Unavailable

Camo, LH Lateral Pannel | Camo Model

705009903

$272.36

Camo, RH Lateral Pannel | Camo Model

705009912

$272.36

Flat Black LH Lateral Panel | Model Black

705010521

$246.24

Flat Black RH Lateral Panel | Model Black

705010522

$246.24

PANEL_BODY LH B-401 - Call your local BRP dealership | Model Blue

705011926

Unavailable

PANEL_BODY RH B-401 - Call your local BRP dealership | Model Blue

705011927

Unavailable

Quarry Gray LH Lateral Panel | Model-Gray

705007530

$55.19

PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray

705009116

$49.22

QUARRY GREY RH LATERAL PANEL ASS'Y - Call your local BRP dealership | Model Gray T3

715004091

Unavailable

Viper Red, LH Lateral Pannel | Viper Red

705005237

$65.64

Viper Red, RH Lateral Panel | Viper Red

705009115

$51.46

Viper Red, RH Lateral Panel | Model Red T3

715003981

$93.25

Panel_Body Lh B-341

705011913

$272.36

Panel_Body Rh B-341

705011914

$272.36

Yellow, LH Lateral Panel | Yellow

705003446

$51.46

Yellow, RH Lateral Panel | Yellow

705009019

$51.46

Phillips Screw K40 X 16

250000723

$0.93

Deflector_Body Panel Kit

715007008

$49.97

Engine Cover

705003444

$18.63

Gauge Support

705006321

$40.27

Gauge Support

705006321

$40.27

Gauge Support | XTP Model

705006322

$40.27

Gage Support

705006373

$40.27

Gauge Support

705007095

$40.27

Gauge Support

705007095

$40.27

Dash Kit

715006098

$25.34

Dash Kit | Europe, Int'l

715002783

$58.18

Grommet

705003264

$3.94

RH Rear Inner Fender

705011462

$19.37

LH Rear Inner Fender

705013111

$19.37

RH Front Inner Fender

705011463

$14.13

LH Front Wheel Arch Protector

705017001

$14.13

Tuflok Plastic Rivet

293150230

$1.39

Rubber Cover

293250242

$5.18

Front Bumper | XT

705005018

Unavailable

Front Bumper | XT

705005018

Unavailable

Deep Black, Front Bumper

705014128

$308.93

Can-Am Red, Front Bumper | P-XMR White/Red/Black

705014575

$259.67

Carriage Bolt, M8 X 20

207782044

$1.79

Carriage Bolt, M8 X 20

207782044

$1.79

Carriage Bolt, M8 X 20

207782044

$1.79

Carriage Bolt, M8 X 20

207782044

$1.79

Torx Screw M8 X 30

250000886

$2.00

Torx Screw M8 X 30

250000886

$2.00

Hex. Flange Elastic Nut M8

233281434

$2.00

Hex. Flange Elastic Nut M8

233281434

$2.00

Hex. Flange Elastic Nut M8

233281434

$2.00

Hex. Flange Elastic Nut M8

233281434

$2.00

Torx Screw M8 X 55

250000535

$3.01

Torx Screw M8 X 55

250000535

$3.01

Elastic Flange Nut M8

233281464

$0.96

Elastic Flange Nut M8

233281464

$0.96

Black Upper Bracket

705006691

$44.75

Red, Upper Bracket

705009891

$42.51

LH RADIATOR SUPPORT - Call your local BRP dealership

705007878

Unavailable

Red, LH Bracket | P-XMR White/Red/Black

705013934

$223.10

RH Radiator Support

705007879

$229.82

Red, RH Rad Bracket | P-XMR White/Red/Black

705013935

$223.10

Black Bumper | XT

705005019

Unavailable

Black Bumper | XT

705005019

Unavailable

Black Bumper | XT

705005019

Unavailable

Can-Am Red, Rear Bumper | P-XMR White/Red/Black

705018601

$267.88

Rear Bumper Ass'y

715001564

$51.46

Rear Bumper Ass'y | Model- International

715005832

$51.46

Rear Bumper Ass'y | Model- Europe

715007915

$42.51

Black Rear Bumper Ass'y | Model Black North America

715004101

$51.46

Black Rear Bumper Ass'y | Model Black International

715004103

$51.46

Black Rear Bumper Ass'y | Model Black Europe, T3

715004104

$51.46

Stainless, Torx Screw M6 X 30

250000842

$2.00

Stainless, Torx Screw M6 X 30

250000842

$2.00

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Flange Elastic Nut M6

233261434

$4.15

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Elastic Nut M8

233281434

$2.00

Hex. Flange Elastic Nut M8

233281434

$2.00

LH Bracket | XT

705005094

$6.39

LH Bracket | XT

705005094

$6.39

RH Bracket | XT

705005095

$6.39

RH Bracket | XT

705005095

$6.39

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

Cap (Front LH) (Rear RH) | XT

705004409

$6.76

Cap (Front RH) (Rear LH) | XT

705004410

$6.76

Bracket Cover | XT

705004987

$4.25

Bracket Cover | XT

705004987

$4.25

Bracket Cover | XT

705004987

$4.25

LH Rear Bracket | XT

705008164

$33.55

RH Rear Bracket | XT

705008165

$33.55

LH Rear Bracket | XT

705008164

$33.55

RH Rear Bracket | XT

705008165

$33.55

LH Rear Bracket | XT

705008164

$33.55

RH Rear Bracket | XT

705008165

$33.55

LH Bracket | XT

705005094

$6.39

RH Bracket | XT

705005095

$6.39

Stainless, Torx Screw M6 X 30

250000842

$2.00

LH Extension Panel

715001897

$24.60

RH Extension Panel

705004348

$23.85

Heat Shield

705006870

$4.76

Heat Shield

705006871

$4.76

Hex. Flange Screw M6 X 20

207662034

$2.00

LH Front Mudguard

705003914

$11.51

RH Front Mudguard

705003915

$11.51

LH Rear Mudguard

705003918

$11.51

RH Rear Mudguard

705003920

$11.51

LH Rear Mudguard, Part 2

705003921

$11.51

RH Rear Mudguard, Part 2

705003922

$11.51

Hex. Screw K40 X 13

241141340

$0.96

Push Nut

732610072

$1.97

Extruded Panel Nut M4 X 0.7

250100143

$7.78

Hex. Cap Screw M4 X 25

207342544

$0.85

Washer

517124300

$0.18

LH Mud Guard

705006988

$34.30

RH Mud Guard

705006989

$33.55

LH Rear Mudguard

705003918

$11.51

RH Rear Mudguard

705003920

$11.51

LH Rear Mudguard, Part 2

705003921

$11.51

RH Rear Mudguard, Part 2

705003922

$11.51

Hex. Screw K40 X 13

241141340

$0.96

Push Nut

732610072

$1.97

Extruded Panel Nut M4 X 0.7

250100143

$7.78

Hex. Cap Screw M4 X 25

207342544

$0.85

Washer

517124300

$0.18

Hex. Flange Screw M6 X 45

207664536

$2.70

Seat Holder

705007948

$52.21

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Heat Shield

705008438

$8.66

Rod Cap

708200462

$2.97

Protector Decal | Model Hunter

516006405

$9.25

Boot Bracket | Package Hunter

715002112

$199.99

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 20

207682044

$1.06

LH Lever | Package Hunter

708200373

$3.81

LH Latch | Package Hunter

708200266

$3.09

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

Spring | Package Hunter

708200263

Unavailable

Elastic Flange Nut M5

233251494

$2.00

Torx Screw M6 X 45

250000748

$1.79

Torx Screw M6 X 16

250000755

$0.82

Hex. Flange Elastic Nut M6

233261494

$1.45

Offset Washer

705202223

$4.09

Elastic Flange Nut M8

250100131

Unavailable

Hex. Nut M6

250000135

$0.49

Flat Washer 8 mm

250200128

$2.00

Flat Washer

250200039

$0.70

Rubber Bumper

291003688

$11.72

Gun Boot kit | Package Hunter

715001419

$109.24

Kit Gear Crip | Package Hunter

715001421

$99.49

Plate | Package Hunter

705005252

$34.30

TORX SCREW M6 X 30 - Call your local BRP dealership

250000245

Unavailable

Hex. Flange Elastic Nut M6

233261494

$1.45

Link Kit

715001707

$32.99

LH Latch | Package Hunter

708200266

$3.09

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

Spring | Package Hunter

708200263

Unavailable

Elastic Flange Nut M5

233251494

$2.00

RH Latch | Package Hunter

708200267

$3.09

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

Spring | Package Hunter

708200263

Unavailable

Elastic Flange Nut M5

233251494

$2.00

Set Screw | Package Hunter

250000591

$4.12

Torx Screw M5 X 20

250000792

$2.00

Elastic Flange Nut M5

233251494

$2.00

Front Skid Plate | Package Hunter

715000926

$96.49

Torx Screw M6 X 20

250000712

$2.00

Stainless Steel Flat Washer

234062670

$2.00

Flange Elastic Nut M6

233261434

$4.15

Hex Torx Truss M8 X30

250000745

$2.96

Hex. Flange Elastic Nut M8

233281434

$2.00

Central Skid Plate | Package-XXC

705204031

$159.67

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Flange Elastic Nut M6

233261434

$4.15

Hex. Flange Screw M6 X 20

207662054

$0.96

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M8 X 25

207682534

$1.03

Hex. Flange Elastic Nut M8

233281434

$2.00

LH Skid Plate | Package Hunter

705010659

$109.67

RH Skid Plate | Package Hunter

705010660

$109.67

Hex. Flange Screw M6 X 20

207662054

$0.96

Cup | Package Hunter

705007171

$6.00

Panel Nut M6 X 1.0

250100198

$1.99

Threaded Insert M6 X 1.0

250100242

Unavailable
