08- Rear Suspension - All Models

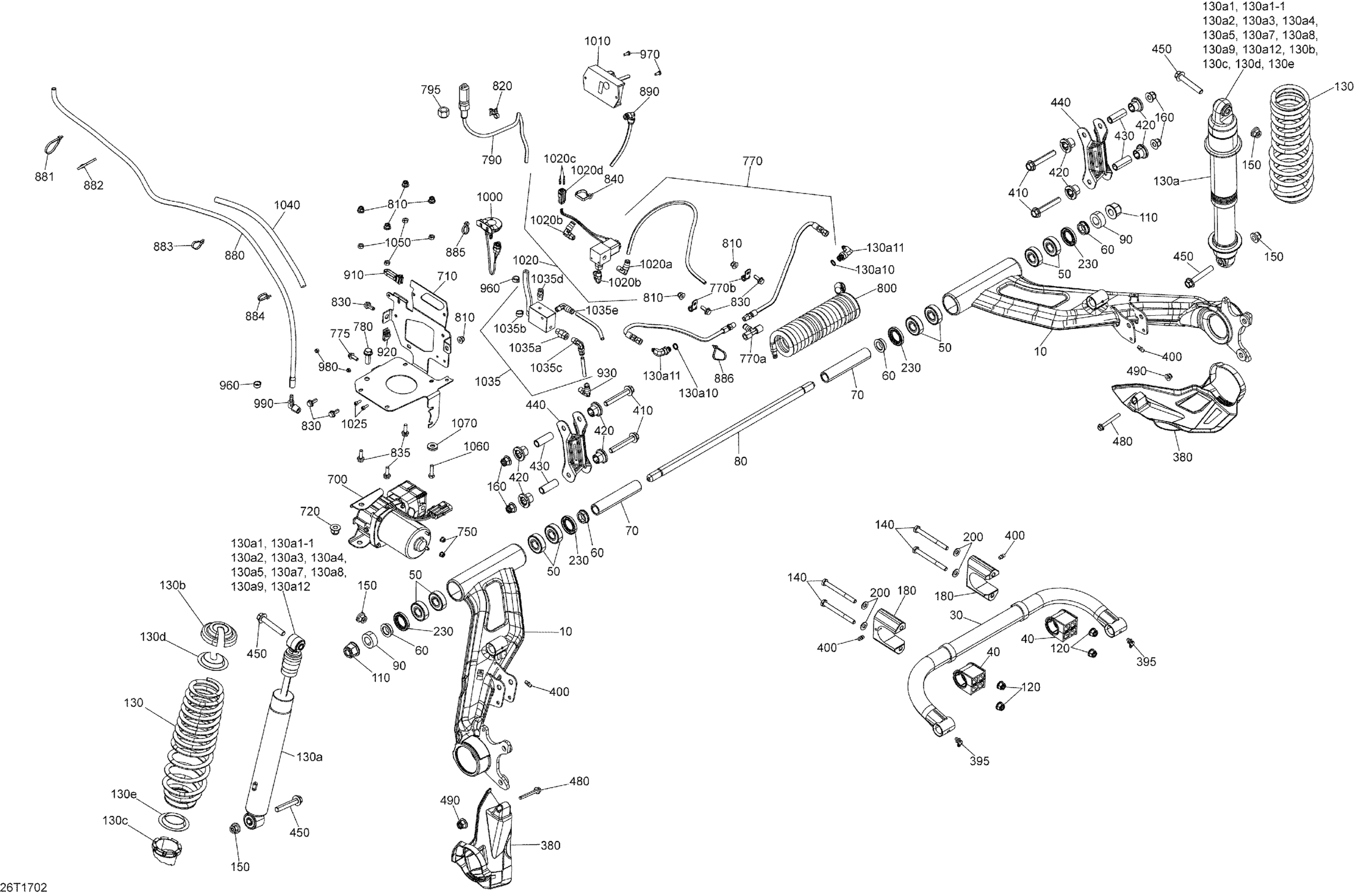

Can-Am 011 - Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 08- Rear Suspension - All Models Diagram
#
10
Black LH Swing Arm | Except Package XMR Red/White/Black
706002414
Unavailable
10
Black RH Swing Arm | Except Package XMR Red/White/Black
706002415
Unavailable
10
Red LH Swing Arm | Package XMR Red/White/Black
706002634
Unavailable
10
RH SWING ARM - Call your local BRP dealership | Package XMR Red/White/Black
706002635
Unavailable
30
Swaybar
706000988
Unavailable
40
Stabilizer Bar Bushing
706004640
Unavailable
50
Ball Bearing
293350145
Unavailable
60
Spacer
706001282
Unavailable
70
Spacer
706002259
Unavailable
80
Axial Pivot M16
706001664
Unavailable
90
Flat Washer M17
250200112
Unavailable
110
Hex. Flange Elastic Nut M16
233211466
Unavailable
120
Hex. Flange Elastic Nut M8
233281434
Unavailable
130a
Rear Shock
706000958
Unavailable
130a
Rear Shock | XT
706000970
Unavailable
130a1>130a9
Rear Shock | Package XTP
706002597
Unavailable
130a1>130a8
Rear Shock | Package XMR Engine 850
706002339
Unavailable
130a1>130a10
Rear Shock | Package XMR 1000
706002601
Unavailable
130a10>130a12
Rear Shock | LTD
706000930
Unavailable
130a1
Ball Journal
715900336
Unavailable
130a1-1
SPHERICAL BEARING - Call your local BRP dealership | Package XMR 1000
715900484
Unavailable
130a2
O-Ring Bushing
715900209
Unavailable
130a3
Retaining Ring
715900252
Unavailable
130a4
Bushing Sleeve | XTP
706201585
Unavailable
130a5
Bushing Sleeve | XTP
706201586
Unavailable
130a7
Interior Bushing | XTP
715900210
Unavailable
130a8
Bushing | Renegade STD
706201584
Unavailable
130a8
Bushing | XTP
706201648
Unavailable
130a9
Protector
715900331
Unavailable
130a10
O-Ring Bushing
715900209
Unavailable
130a11
Elbow 90° | XMR
706001200
Unavailable
130a12
Interior Bushing | XTP
715900210
Unavailable
130b
Spring Stopper
706200881
Unavailable
130c
Adjustment Cam
505073625
Unavailable
130d
Cap
706200785
Unavailable
130e
Spring Guide
503187500
Unavailable
130
Black Rear Spring
706002785
Unavailable
130
Black Spring | Package Pro, Hunter
706002585
Unavailable
130
Black, Spring | DPS
706002427
Unavailable
130
Black Spring | Outlander STD, DPS, XT
706002464
Unavailable
130
SPRING COMPRESSION B-160 PAINTED - Call your local BRP dealership | OUT XTP
706002468
Unavailable
130
SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | MAX Model Red
706002473
Unavailable
130
Red Spring | Model XMR
706002494
Unavailable
140
Hex. Screw M8 X 85
250001035
Unavailable
150
Hex. Flange Elastic Nut M10
233201436
Unavailable
160
Hex. Flange Elastic Nut M10
233201414
Unavailable
180
Bushing Holder
706001099
Unavailable
200
Flat Washer M8
234081430
Unavailable
230
Seal
293200144
Unavailable
380
LH Protector
706002482
Unavailable
380
RH Protector
706002483
Unavailable
395
Grease Fitting 90°
293550056
Unavailable
400
Grease Fitting
250000315
Unavailable
410
Hex. Flange Screw M10 X 65
207606536
Unavailable
420
Bushing
706200181
Unavailable
430
Sleeve
706201587
Unavailable
440
Sway Bar Linkage
706001020
Unavailable
450
Hex. Flange Screw M10 X 6
207606046
Unavailable
480
Torx Screw M6 X 20
250000712
Unavailable
490
Hex. Flange Elastic Nut M6
233261494
Unavailable
700
Compressor Ass'y
706000964
Unavailable
710
Bracket | Package LTD
706002114
Unavailable
720
Hex. Flange Elastic Nut M10
233201414
Unavailable
750
Flange Elastic Nut M5
233251434
Unavailable
770>770a
Rear Shock Distributor
706002020
Unavailable
770a
T Fitting
706000946
Unavailable
770b
Clamp
293650256
Unavailable
775
Hex. Flange Screw M6 X 16
210261650
Unavailable
780
Hex. Flange Screw M10 X 25
250001054
Unavailable
790
Inflater Ass'y | Package LTD
706001827
Unavailable
795
Hex. Nut With Nylon 1/2" X 20
250100124
Unavailable
800
Auxiliary Hose
706000808
Unavailable
810
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
820
Tie-Rap 173 mm
293750009
Unavailable
830
Hex. Flange Screw M6 X 16
207661644
Unavailable
835
Hex. Flange Screw M6 X 20
207662044
Unavailable
840
Tie Wrap 368 mm
293750008
Unavailable
880
Polyurethane Hose 10000Mm Long
219704410
Unavailable
881
Tie Wrap 142 mm
293750002
Unavailable
882
Tie Wrap 142 mm
293750002
Unavailable
883
Tie Wrap 142 mm
293750002
Unavailable
884
Tie Wrap 142 mm
293750002
Unavailable
885
Tie Wrap 142 mm
293750002
Unavailable
886
Tie Wrap 142 mm
293750002
Unavailable
890
Hose Ass'y
706002015
Unavailable
910
Clip Tie-Rap
710002899
Unavailable
920
Panel Nut M6 X 1.0
250100198
Unavailable
930
Elbow 90°
706000928
Unavailable
960
Clamp Oetiker
293650207
Unavailable
970
HEX. SCREW M4 X 12 - Call your local BRP dealership
207141244
Unavailable
980
Elastic Stop Nut M4
232541414
Unavailable
990
Elbow 90°
706001405
Unavailable
1000
Air Suspension Sensor
710001825
Unavailable
1010
Calibrated Module | LTD
710004405
Unavailable
1020>1020d
Pressure Collector Ass'y
706002014
Unavailable
1020a
Connector
706000869
Unavailable
1020b
Elbow 90°
706000928
Unavailable
1020c
Male Terminal
515175232
Unavailable
1020d
Male Terminal Housing, 2 Circuits
515175654
Unavailable
1025
Socket Head Screw M4 X 12
205041254
Unavailable
1035>1035e
Hose Ass'y
706002012
Unavailable
1035a
Check Valve
706000860
Unavailable
1035b
Clamp Oetiker
293650207
Unavailable
1035c
Elbow 90°
706000928
Unavailable
1035d
Connector
706000869
Unavailable
1035e
Elbow 90°
706000872
Unavailable
1040
Protector Tube
504153074
Unavailable
1050
Hex. Nut M6
232061414
Unavailable
1060
Hex. Screw M6 X 25
207162544
Unavailable
1070
Flat Washer
224061121
Unavailable
