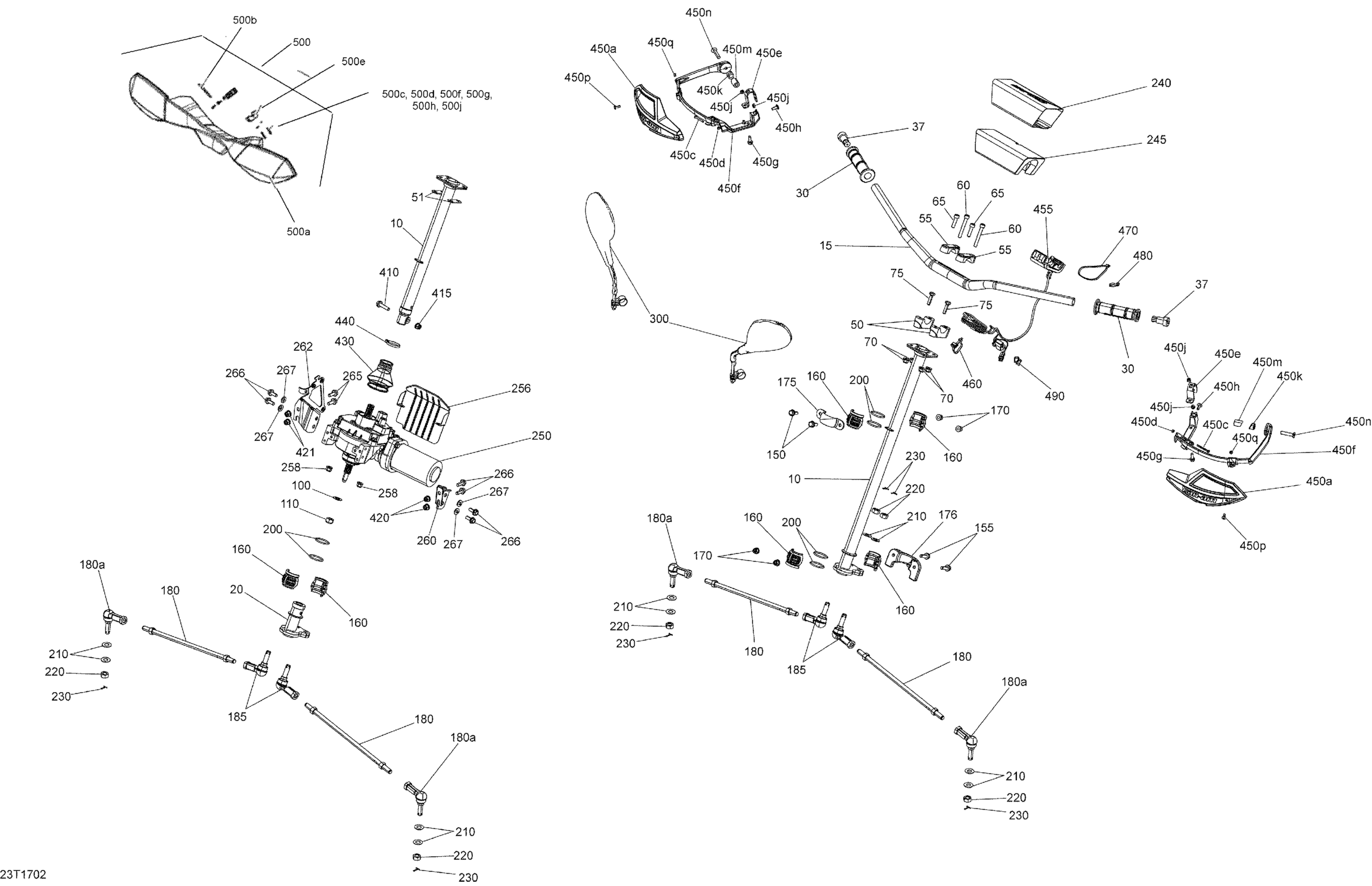

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Steering - All Models Diagram

Main Tube

709401008

$144.99

Kit Tube-Main.

703501137

$184.99

Aluminum Handle Bar

709400513

$63.49

Black, Handle Bar

709401240

$69.99

Black, Handle Bar

709401240

$69.99

Black, Handle Bar

709401240

$69.99

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$99.49

Aluminum Handle Bar

709400513

$63.49

Pitman Kit

703500812

$159.99

Pitman Kit | Includes 3 to 5

703500785

$159.99

Grey, Handle Grip

709400443

$13.77

Handle Grip

709400493

$14.83

End Piece

709400449

$8.49

Lower Mounting Clamp

709402750

$25.99

Steering Support

709401799

$22.49

Stiffner

709400509

$4.69

Steering Support

709401799

$22.49

Support

709400496

$22.49

Socket Head Screw M8 X 60

205086060

$4.12

Hex. Screw M8 X 60

207086046

$2.85

Socket Screw M8 X 30

205083060

$2.96

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Screw M8 X 30

207183060

$1.58

Hardened Washer

706200281

$2.85

Hex. Flange Elastic Nut M12

250000047

$1.90

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682534

$2.11

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

Rod-Tie Ass'y | Incl 36

703501037

$110.99

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Cover

709400939

$24.99

Cover

709400939

$24.99

Cover | Package-XXC Digital Camo

709402111

$33.99

Cover | Package-XXC Digital Camo

709402111

$33.99

Cover | Package XMR Engine 1000 Red Model

709402112

$33.99

Foam

709400422

$17.49

Power Steering

709401608

$1,010.49

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

Power Steering Module Bracket

709400848

$16.49

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Conical Spring Washer M8

234281474

$1.48

LH Mirror | Europe

709400406

$32.99

RH Mirror | Europe

709400407

$47.49

Hex. Flange Screw M8 X 35

207683544

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Bellows

709400674

$18.99

Tie-Rap 180 mm

414115200

$0.11

Handlebar Wind Deflectors | Package-XTP

715003813

$34.99

Deflector Kit | Package XXC White/Red/Black

715003811

$34.99

Deflector Kit | Package XXC White/Red/Black

715003811

$34.99

ORANGE RH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401620

Unavailable

ORANGE LH DEFLECTOR - Call your local BRP dealership | Package-XTP

709401621

Unavailable

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$35.99

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$35.99

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

$35.99

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

$35.99

Socket Head Screw M4 X 40

205444056

$2.11

Elastic Stop Nut M4

232541414

$0.58

Air Deflector Support Kit | X

715001378

$138.49

Air Deflector Support Kit | X

715001378

$138.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Elastic Stop Nut M6

232561600

$1.15

Small Bracket | DS 650 X

709400161

$21.99

Large Bracket | DS 650 X

709400162

$20.99

Socket Head Screw | X

205384034

$6.49

Torx Screw M5 X 14

250000742

$1.47

Hex. Elastic Nut M5 | X

232551600

$1.15

GPS Support | LTD Model

710003210

$214.99

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

Handle Guard Ass'y, XT

703100352

$98.49

Handle Guard Ass'y, LTD

703100357

$92.99

Handle Bar Protector | XT

709400822

$90.99

Handle Guard Ass'y, LTD

703100357

$92.99

DPS Decal

704902966

$14.49

DPS Decal

704902966

$14.49

Hex. Flange Screw K40 X 25

241142560

$2.64

Flat Washer | XT

211200035

$0.55

U-Clamp | XT

517303264

$11.99

Rubber Bumper

709400781

$4.39

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

Unavailable

Flat Washer 4 mm, Stainless

234042600

$1.15

Elastic Stop Nut M4

232541414

$0.58
