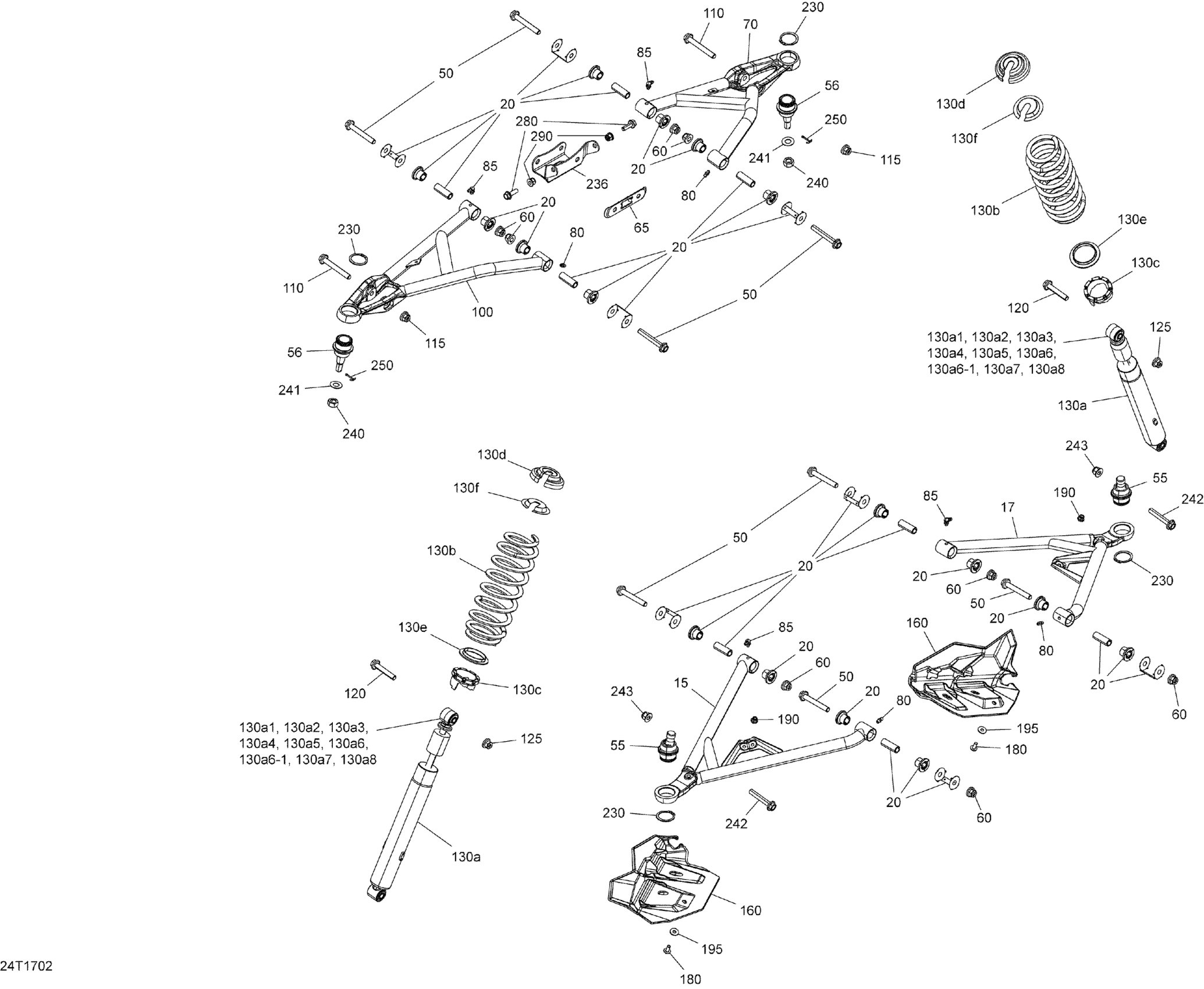

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Front Suspension - All Models Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$147.73

17

Black, RH Lower Arm

706202870

$147.73

20

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

50

Hex. Flange Screw M10 X 70

207607046

$2.82

55

Ball Joint

706202045

$34.30

56

Ball Joint

706202044

$34.30

60

Hex. Flange Elastic Nut M10

233201436

$2.00

65

Front Suspension Cross Plate

706200998

$4.76

70

Black RH Upper Arm

706201797

$147.73

80

Grease Fitting

408200700

$3.21

85

Grease Fitting 90°

293550056

$1.04

100

Black LH Upper Arm

706201796

$147.73

110

Hex. Flange Screw M10 X 75

250001038

$6.36

115

Hex. Flange Elastic Nut M10

233201436

$2.00

120

Hex. Flange Screw M10 X 55

207605546

$2.00

125

Hex. Flange Elastic Nut M10

233201436

$2.00

130a

Shock Absorber | Outlander MAX, DPS, XT

706201243

$170.12

130a

Shock Absorber | Outlander MAX, DPS, XT

706201243

$170.12

130a

Shock Absorber | Engine 850 Package XMR

706202489

$306.69

130a1>130a7

Shock Absorber | Package XTP

706202729

$602.21

130a1>130a8

Shock Absorber | Package XMR 1000

706202732

$467.88

130a1

O-Ring Bushing

715900209

$12.49

130a1

O-Ring Bushing

715900209

$12.49

130a2

Interior Bushing | XTP

715900210

$13.58

130a2

Interior Bushing | XTP

715900210

$13.58

130a3

Bushing | Renegade STD

706201584

$13.58

130a3

Bushing | XTP

706201648

$12.72

130a4

Bushing Sleeve | XTP

706201585

$29.82

130a4

Bushing Sleeve | XTP

706201585

$29.82

130a5

Bushing Sleeve | XTP

706201586

$29.82

130a5

Bushing Sleeve | XTP

706201586

$29.82

130a6

Spherical Bearing

715900251

$73.85

130a6

Ball Journal

715900336

$79.07

130a6-1

SPHERICAL BEARING - Call your local BRP dealership | Package XMR 1000

715900484

$71.61

130a7

Retaining Ring

715900252

$10.24

130a8

Protector

715900331

$12.49

130b

Black Spring | STD

706201171

$102.21

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Outlander MAX, DPS

706201649

Unavailable

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Outlander Max XT, Max T3

706202579

Unavailable

130b

Black Spring | XT

706202553

$102.21

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Outlander Max XT, Max T3

706202579

Unavailable

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package Pro, Hunter

706202716

Unavailable

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package XMR 1000 Black

706202605

$67.13

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package XTP

706202631

Unavailable

130b

Red Spring | Package XMR 1000 Red/White/Black

706202632

Unavailable

130b

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Model XMR

706202576

Unavailable

130b

Red Spring | Package XMR 1000 Red/White/Black

706202632

Unavailable

130c

Adjustment Cam

505073625

$11.82

130d

Spring Stopper

706200881

$11.82

130e

Spring Guide

503187500

$8.46

130f

Cap

706200785

$4.28

160

LH Joint Protector

706202808

$8.42

160

RH Joint Protector

706202809

$8.42

180

Torx Screw M6 X 16

250000755

$0.82

190

Hex. Flange Elastic Nut M6

233261494

$1.45

195

Stainless Steel Flat Washer

234062670

$2.00

230

Circlip

293370035

$2.48

236

Upper Front Holder

705203247

$13.09

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

242

Hex. Flange Screw M10 X 60

207606044

$3.19

243

Hex. Flange Elastic Nut M10

233201434

$1.87

250

Cotter Pin

211400017

$0.28

280

Hex. Flange Screw M8 X 25

207682534

$1.03

290

Hex. Flange Elastic Nut M8

233281414

$1.31
