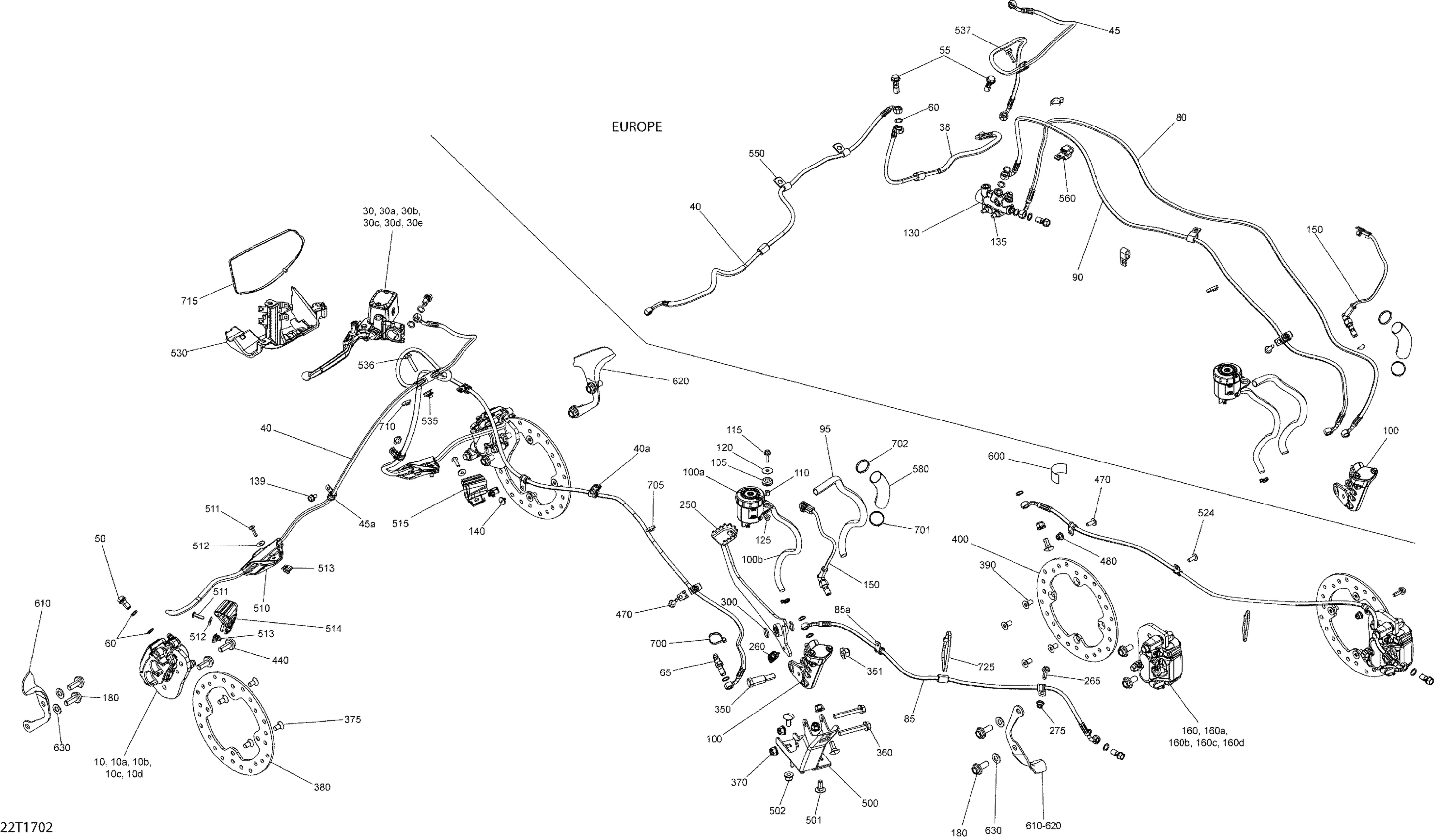

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Brakes - All Models Diagram

#

Description
Price

10>10d

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$218.49

10>10d

RH Front Caliper Ass'y | Model XMR

703500967

$284.99

10>10d

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$218.49

10>10d

LH Front Caliper Ass'y | Model XMR

703500968

$284.99

10a

RH Organic Brake Pad Kit

705601014

$40.37

10a

RH Metallic Brake Pad Kit | Model XMR

715900249

$49.39

10a

LH Organic Brake Pad Kit

705601015

$40.37

10a

LH Metallic Brake Pad Kit | Model XMR

715900248

$49.39

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$239.97

30a

Lever Set

705601013

$59.97

30b

Clamp And Screw Kit

507032477

$23.05

30b1

Hex. Flange Screw M6 X 25

250000447

$2.06

30c

Cap Set

219800096

$23.05

30c1

Screw M4 X 20

415129356

$2.17

38

RH Front Hose

705601521

$46.12

38

RH Front Hose

705601521

$46.12

40

LH RH Front Hose

705601519

$170.74

40

LH RH Front Hose

705601519

$170.74

40

LH Front Hose

705601520

$46.12

40

LH Front Hose

705601520

$46.12

45>45a

Brake Handle Line | Includes 17 to 18

705600967

$46.12

45>45a

Brake Handle Line | Includes 17 to 18

705600967

$46.12

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

55

Banjo Bolt

705600958

$7.60

55

Banjo Bolt

705600958

$7.60

60

Copper Washer

705601628

$4.34

65

Bleeding Screw

705601051

$11.98

80

Outlet Hose, Master Cylinder

705601518

$69.20

80

Outlet Hose, Master Cylinder

705601518

$69.20

85

RH Rear Hose

705601301

$41.51

85

RH Rear Hose

705601323

$50.74

85

RH Rear Hose

705601302

$41.51

85

RH Rear Hose

705601324

$50.74

85

RH Rear Hose

705601324

$50.74

85>85a

Brake Line Ass'y

705601002

$36.89

85>85a

RH Brake Line | Includes 24 to 25

705601005

$46.12

85a

Clamp

293650256

$4.36

90

Inlet Hose, Master Cylinder

705600973

$64.58

90

Inlet Hose, Master Cylinder

705600973

$64.58

95

Tubing 10 MM 1000MM Long

219704407

$2.20

100>100b

Rear Master Cylinder | Includes 21 to 23

705601273

$253.82

100>100b

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$216.89

100a

Oil Tank

705601020

$36.89

100b

Oil Housing Hose

705601019

$15.35

105

Grommet

414036300

$2.22

110

Bushing

293900112

$10.14

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.15

125

Flange Elastic Nut M5

233251434

$1.66

130

Splitter

705600994

$147.66

130

Splitter

705600994

$147.66

135

Hex. Flange Screw M6 X 50 | Model Europe, T3

210265040

$1.74

135

Hex. Flange Screw M6 X 50 | Model Europe, T3

210265040

$1.74

139

Hex. Flange Screw M6 X 16

210261640

$1.74

139

Hex. Flange Screw M6 X 16

210261640

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Brake Switch

705601250

$59.97

150

Brake Switch

705601250

$59.97

150

Brake Switch

705601251

$50.74

150

Brake Switch

705601251

$50.74

160>160d

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

160>160d

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$284.99

160a

Pin Set

705601016

$9.98

160b

Bleeding Screw

705601017

$6.45

160c

Retaining Spring

705601018

$7.98

160d

RH Organic Brake Pad Kit

705601014

$40.37

160d

RH Metallic Brake Pad Kit | Model XMR

715900249

$49.39

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$147.66

260

Brake Pedal Spring

705600792

$9.22

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.98

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

380

Disc Brake

705600999

$85.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Disc Brake

705600999

$85.49

440

Hex. Flange Screw M10 X 25

207502546

$1.74

440

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Brake Pedal Bracket

705202000

$36.89

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Hose Guard

705601893

$4.60

511

Torx Screw M5 X 20

250000724

$1.39

512

Washer M5

250200025

$0.61

513

Panel Nut M5 X 0.8

250000958

$3.48

514

LH Hose Bracket

705601048

$4.60

515

RH Hose Bracket

705601049

$4.60

524

Torx Screw M6 X 16

250000755

$0.72

525

Pop Rivet 3/16"

390402400

$0.25

530

Front Hose Bracket

705600983

$12.68

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

536

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

536

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

550

Clamp

293650219

$0.85

560

Clamp

293650220

$0.85

560

Clamp

293650220

$0.85

580

Tubing 25 MM 1000MM Long

219704402

$12.69

600

Heat Shield

705601311

$4.60

610

LH Deflector

705601214

$23.05

620

RH Deflector

705601215

$23.05

630

Flat Washer 10 mm

234001410

$0.98

700

Tie-Rap 180 mm

414115200

$0.09

701

Tie-Rap 180 mm

414115200

$0.09

702

Tie-Rap 180 mm

414115200

$0.09

705

Tie-Rap 180 mm

414115200

$0.09

705

Tie-Rap 180 mm

414115200

$0.09

710

Tie-Rap 180 mm

414115200

$0.09

711

Tie-Rap 180 mm

414115200

$0.09

715

Tie Rap, 533 mm

293750047

$1.83

725

Tie Wrap 368 mm

293750008

$0.85
