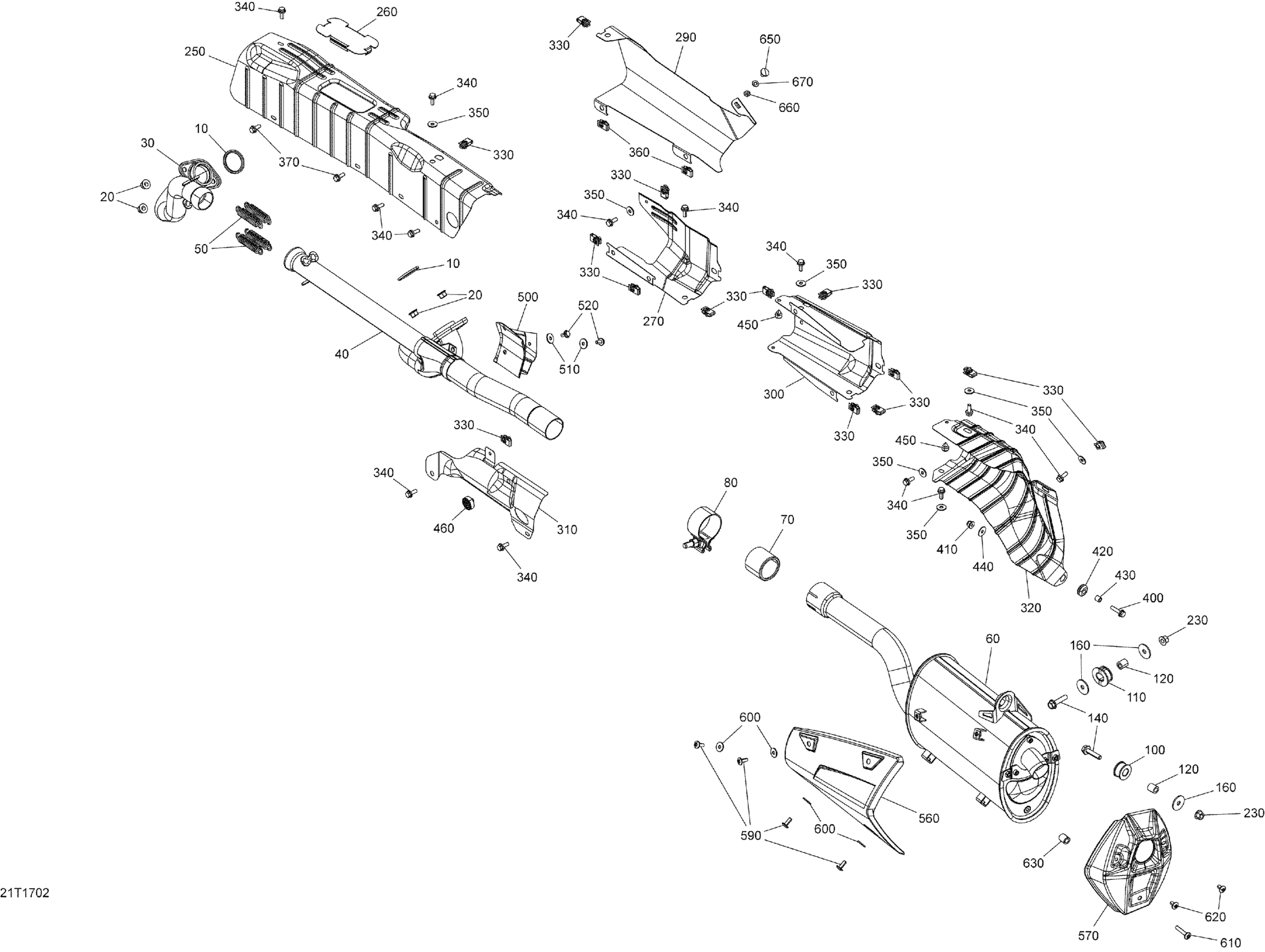

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Exhaust System - All Models Diagram

#

Description
Price

10

Gasket

707600317

$10.52

20

Hex. Flange Nut M8

233081416

$1.63

30

Front Head Pipe

707600627

$138.43

30

Front Head Pipe

707600764

$138.43

40

Rear Head Pipe

707601446

$203.05

40

Rear Head Pipe

707601447

$203.05

40

Rear Head Pipe

707601455

$203.05

40

Rear Head Pipe

707601456

$203.05

50

Spring

415107100

$6.20

60

Exhaust Muffler | Includes 19a to 19f

703501071

$563.05

60

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

707600799

Unavailable

60

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

707600799

Unavailable

60

MUFFLER_EXHAUST - Call your local BRP dealership | Europe Model

707601723

$821.51

70

Pipe Gasket

707601544

$18.43

80

Gear Clamp

293650231

$12.97

100

Vibration Damper

707603323

$11.98

110

Rubber

707600448

$7.60

120

Spacer Bushing

293900116

$3.08

140

Hex. Flange Screw M8 X 35

207683544

$1.39

160

Flat Washer M8

250200158

$1.74

180

Hex. Flange Nut M8

233081416

$1.63

250

Heat Shield

707603724

$12.68

260

Heat Shield

707600995

$16.12

270

Protector

707601484

$12.91

290

Heat Shield

707600996

$23.05

300

Protector

707601485

$12.91

310

Heat Shield

707602604

$16.89

320

Protector

707601425

$18.43

330

Panel Nut M6 X 1.0

250100198

$1.73

340

Hex. Flange Screw M6 X 16

207661644

$0.61

350

Flat Washer 6 mm

234062410

$0.64

360

Panel Nut M6 X 1.0

250100198

$1.73

370

Hex. Flange Screw M6 X 16

207661644

$0.61

400

Hex. Flange Screw M6 X 25

207662534

$1.74

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Grommet

709000582

$4.38

430

Bushing

293900105

$6.26

440

Flat Washer

224060201

$1.15

450

Rubber Bumper

293830005

$5.33

460

Rubber Stopper

708000506

$6.15

500

Pipe Protector

707600932

$14.37

510

Flat Washer

250200082

$0.35

520

Hex. Flange Screw M6 X 12

250000574

$2.06

560

Heat Deflector

707600710

$41.51

570

Heat Shield End Cap

707601255

$46.12

590

Torx Head Screw M6 X 16

250000717

$1.74

600

Stainless Steel Flat Washer

234062670

$1.74

610

Torx Screw M6 X 35

250000541

$1.74

620

Torx Truss Screw M6 X 12

250000767

$1.66

630

Bushing

293900106

$4.42

650

Carriage Bolt M6 X 12

207761244

$1.56

660

Elastic Stop Nut M6

232561414

$1.55

670

Flat Washer 6 mm

234061410

$1.04
