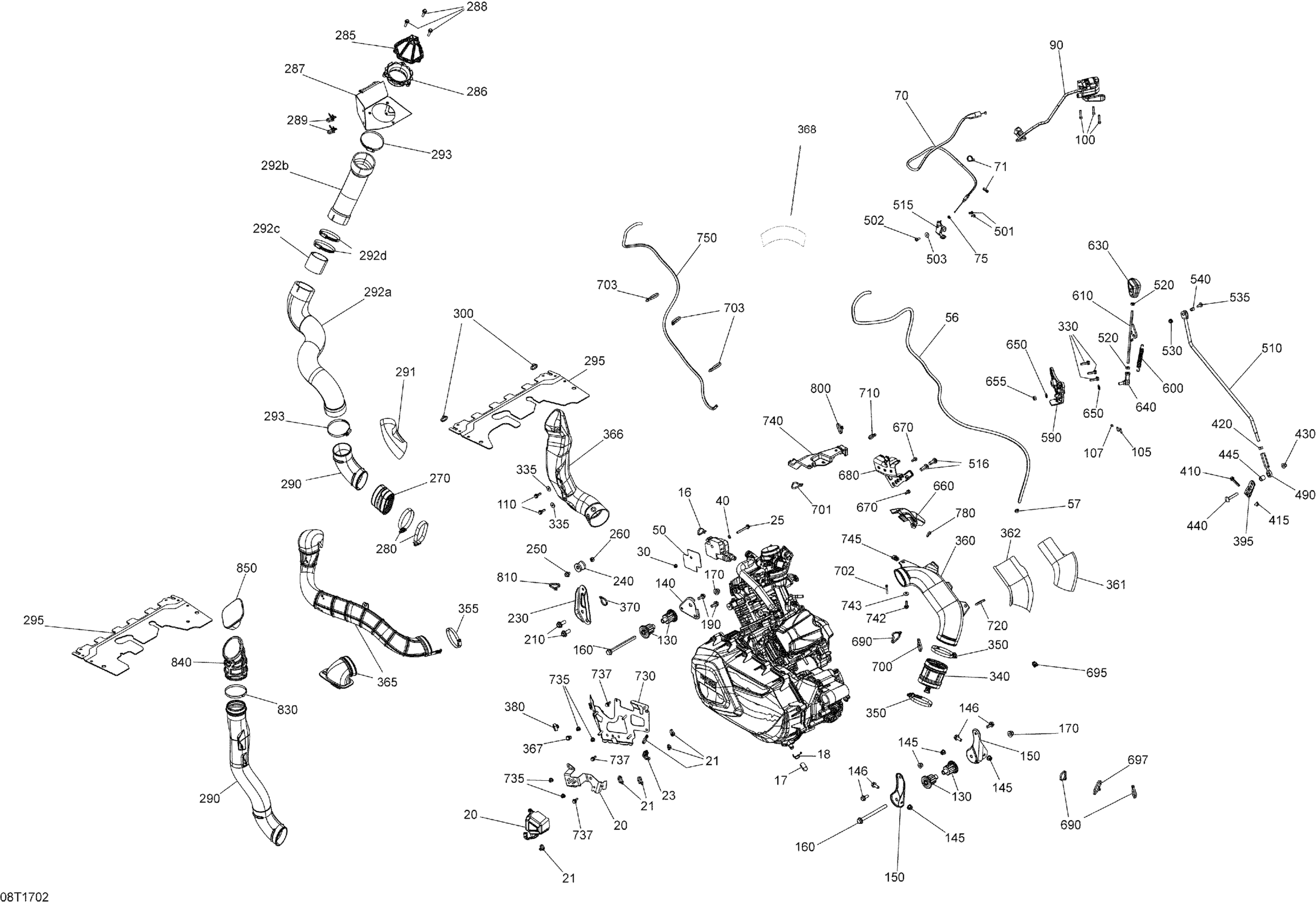

Can-Am Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 Engine And Engine Support - All Models Diagram

#

Description
Price

16

Tie-Rap 180 mm

414115200

$0.10

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

20

Cover

707000945

$6.16

20

Cover | Package XMR

707001563

$22.36

21

Tie Wrap 142 mm

293750002

$1.01

21

Tie-Rap 180 mm

414115200

$0.10

23

Tie-Rap Clip

710002896

$3.93

25

Hex. Flange Screw M6 X 50

207665044

$3.88

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

40

External Serrated Lock Washer 6 mm

234461608

$1.06

50

Insulator Pad

710000073

$10.30

56

Polyurethane Hose 10000Mm Long

219704410

$52.96

57

Clamp, Oetiker

293650195

$1.00

70

Throttle Cable

707000955

$12.34

71

Tie-Rap 180 mm

414115200

$0.10

75

Cable Guide

707000434

$10.21

90

Throttle Handle | 4X4

707000595

$69.37

100

Socket Head Screw M5 X 25

205052588

$1.79

105

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

105

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

105

SPEED LIMITER - Call your local BRP dealership | Engine 570-850-1000R , Europe Model

707001927

Unavailable

105

SPEED LIMITER - Call your local BRP dealership | Engine 570-850-1000R , Europe Model

707001927

Unavailable

107

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$8.21

145

Hex. Elastic Flange Nut M8

233281416

$1.43

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001191

$8.21

150

RH Rear Engine Bracket

707001192

$8.21

150

LH Rear Engine Support

707003325

$14.90

150

RH Rear Engine Bracket

707001194

$14.90

150

LH Rear Engine Bracket

707001191

$8.21

150

RH Rear Engine Bracket

707001192

$8.21

160

Hex. Flange Screw M10 X 125

230602546

$6.99

170

Hex. Flange Elastic Nut M10

233201436

$2.00

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

210

Hex. Flange Screw M10 X 25

207602544

$1.52

230

Upper Engine Support

707003326

$12.30

230

Upper Engine Bracket

707001256

$10.82

240

Rubber Isolator

707000949

$10.33

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

260

Hex. Elastic Stop Nut M8

232581414

$0.54

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$4.46

285

Filter CVT

707001130

Unavailable

285

Filter CVT

707001130

Unavailable

285

Filter CVT

707001130

Unavailable

286

CVT Filter Base

707001171

$8.34

286

CVT Filter Base

707001171

$8.34

286

CVT Filter Base

707001171

$8.34

287

CVT Filter Support

707001203

$58.93

288

Hex. Flange Screw M6 X 25

207562544

$1.60

289

Tie-Rap 173 mm

293750009

$0.97

290

CVT Air Inlet

707001087

$38.78

290

CVT Air Inlet

707002067

$48.48

291

Heat Shield

707001654

$2.59

292a

CVT Air Inlet

707001301

$48.48

292b

CVT Air Inlet

707001302

$48.48

292c

Tube

707001263

$9.45

292d

Norma Clamp

293650091

$4.46

293

Norma Clamp

293650091

$4.46

295

Upper Water Deflector

707001124

$20.12

295

Deflector

707001129

$19.37

300

Tie-Rap 180 mm

414115200

$0.10

330

Hex. Flange Screw M6 X 25

207562544

$1.60

335

Flat Washer M6, Stainless

234062600

$0.73

340

CVT Air Outlet Adaptor

707001168

$14.27

350

Norma Gear Clamp

293650118

$11.18

355

Norma Clamp

293650091

$4.46

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$8.66

362

Heat Shield

707001206

$8.66

365

CVT Cooling Duct Out

706600400

$49.22

365

Air Outlet

707001496

$78.00

366

Air Outlet

707001497

$39.52

367

Tuflok Plastic Rivet

293150230

$1.39

368

Heat Shield

707002092

$8.66

370

Tie Wrap 142 mm

293750002

$1.01

370

Tie-Rap 180 mm

414115200

$0.10

380

Rubber Stopper

708000506

$5.90

395

Lever

707000911

$18.63

410

Hex. Flange Screw M6 X 35

207663544

$0.85

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

420

Hex. Nut M8, LH Threads

250100144

$1.88

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Carriage Bolt M8 X 30

207783044

$2.00

440

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.01

445

Bushing

293900106

$4.28

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

501

Socket Head Screw M5 X 10

205951046

$2.31

502

Torx Screw K50 X 16

250000720

$1.60

503

Washer | DS 650 X

391301600

$0.46

510

Shifter Rod

707002068

$30.57

510

Shifter Rod

707002085

$30.57

515

Fixing Plate | Europe

707001042

$35.79

516

Screw Socket M10 X 25 | Europe

205402556

$3.73

520

Hex. Jam Nut M8

232180600

$0.64

530

Hex. Flange Nut M6

233161414

$2.00

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Except Europe

707000840

$14.43

610

Shift Arm | Europe

707001003

$15.64

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.54

660

Cover OPS

707000410

$12.34

670

Hex. Flange Screw M6 X 12

210261250

$1.79

680

Cable Support

707003053

$7.72

690

Tie-Rap 180 mm

414115200

$0.10

695

Tie-Rap Clip

710002896

$3.93

697

Tie-Rap 180 mm

414115200

$0.10

700

Tie-Rap 180 mm

414115200

$0.10

701

Tie-Rap 180 mm

414115200

$0.10

702

Tie-Rap 180 mm

414115200

$0.10

703

Tie-Rap 180 mm

414115200

$0.10

710

Tie-Rap 180 mm

414115200

$0.10

720

Tie Wrap 142 mm

293750002

$1.01

730

Welded Support

707001498

$76.84

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

737

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

740

Air Outlet Support

707001262

$7.39

742

Hex. Flange Screw M6 X 20

207662044

$1.91

743

Flat Washer 6 mm

234062410

$0.73

745

Panel Nut M6 X 1.0

250100198

$1.99

750

Polyurethane Hose 10000Mm Long

219704410

$52.96

780

Tie-Rap 180 mm

414115200

$0.10

800

Tie-Rap 180 mm

414115200

$0.10

810

Tie-Rap 180 mm

414115200

$0.10

830

Crimp Clamp

293650240

$6.36

840

CVT Inlet

707001864

$59.67

850

CVT Filter

707001786

$17.13
