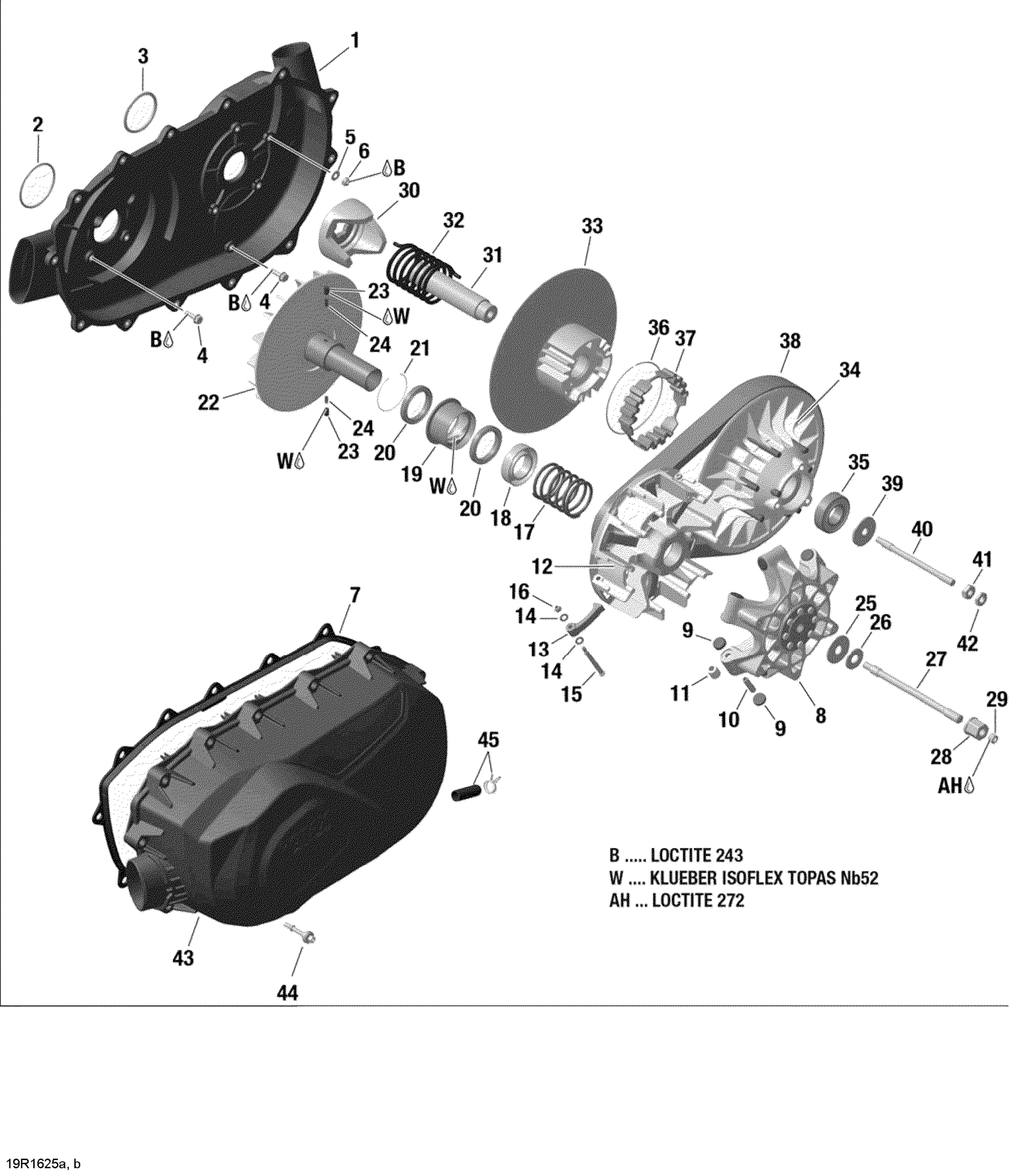

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Transmission - 1000R EFI (Outlander Package XMR) Diagram

#

Description
Price

1

CVT Air Guide

420612304

$172.36

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.24

5

Flat Washer

224061121

$0.44

6

Elastic Stop Nut M6

232561414

$1.78

7

Gasket

420430126

$38.78

8

Governor Cup

420280664

$170.12

9

Slider Shoe Set

420281296

$41.01

10

Roller Axle

417223257

$6.37

11

Roller

417223767

$7.15

12

Outer Haft

420280467

$188.03

13>16

Lever Set Ass'y | Includes 11a to 14

420248682

$167.13

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring, Drive Pulley

420238617

$26.84

18

Seat Spring

420627578

$28.57

19

Drive Pulley Clutch

420257195

$109.24

20

Ball Bearing

420632377

$40.27

21

Retaining Ring

420245951

$4.72

22

Inner Half

420280374

$170.12

23

Spring Sleeve

420229577

$14.92

24

Spring

420239134

$2.52

25>29

Clutch Bolt Repair Kit

703500842

$68.99

25

Washer 40 MM

420427061

$24.99

26

Washer 30 MM

420427054

$24.60

27

Stud Screw 12 X 172

420441801

$68.99

28

Socket Set Screw

420242381

$19.37

29

Nut

420441811

$11.91

30

Cam

420280701

$142.51

31

Driven Pulley Shaft

420220914

$115.64

32

Compression Spring

420638040

$55.19

33

Inner Half Ass'y | Includes 33a to 35

420280499

$294.49

34>37

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

35

Ball Bearing

420932421

$26.09

36

Retaining Ring

420245911

$5.31

37

Torque Gear

420660124

$21.61

38

V-Belt

422280366

$167.13

39

Thrust Washer

420627594

$11.81

40

Stud Screw M10 X 136

420441900

$23.85

41

Nut M10

420242097

$1.99

42

Hexagonal Nut M10

420242403

$1.76

43

Variator Cover

420612316

$158.18

44

Hex Screw M6 X 30

420440568

$7.10

45

Drain Plug Kit

707001179

$8.93
