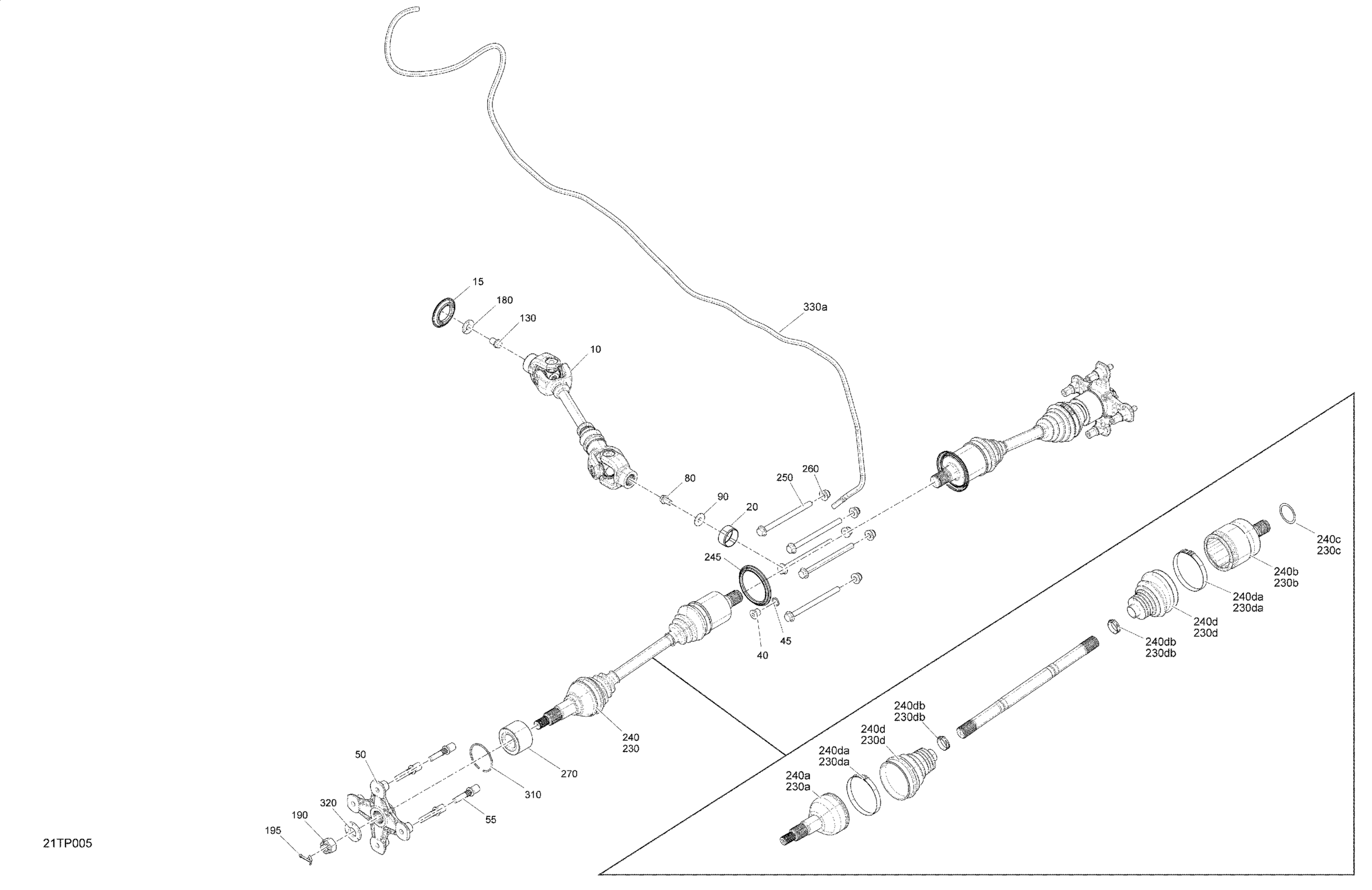

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit

703500989

$190.27

Protector

705501123

$5.90

Wear Ring | 4X4

705400036

$24.60

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub

705501900

$123.10

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$3.96

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

Performance CV Axle - Rear Right

705501848

$255.94

230a

CV Joint

705501776

Unavailable

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

$5.10

230d

Boot Kit

705501864

$39.52

230da

Oetiker Clamp, 82.1 mm

715900241

$7.84

230db

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

Joint Protector

705501842

$7.60

240

Performance CV Axle - Rear Left

705501847

$255.94

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$5.10

240d

Boot Kit

705501864

$39.52

240da

Oetiker Clamp, 82.1 mm

715900241

$7.84

240db

Oetiker Clamp, 27.3 mm

715900242

$7.84

240e

Joint Protector

705501842

$7.60

245

Wear Ring

705501124

$6.73

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$50.34

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 10000Mm Long

219704410

$46.12
