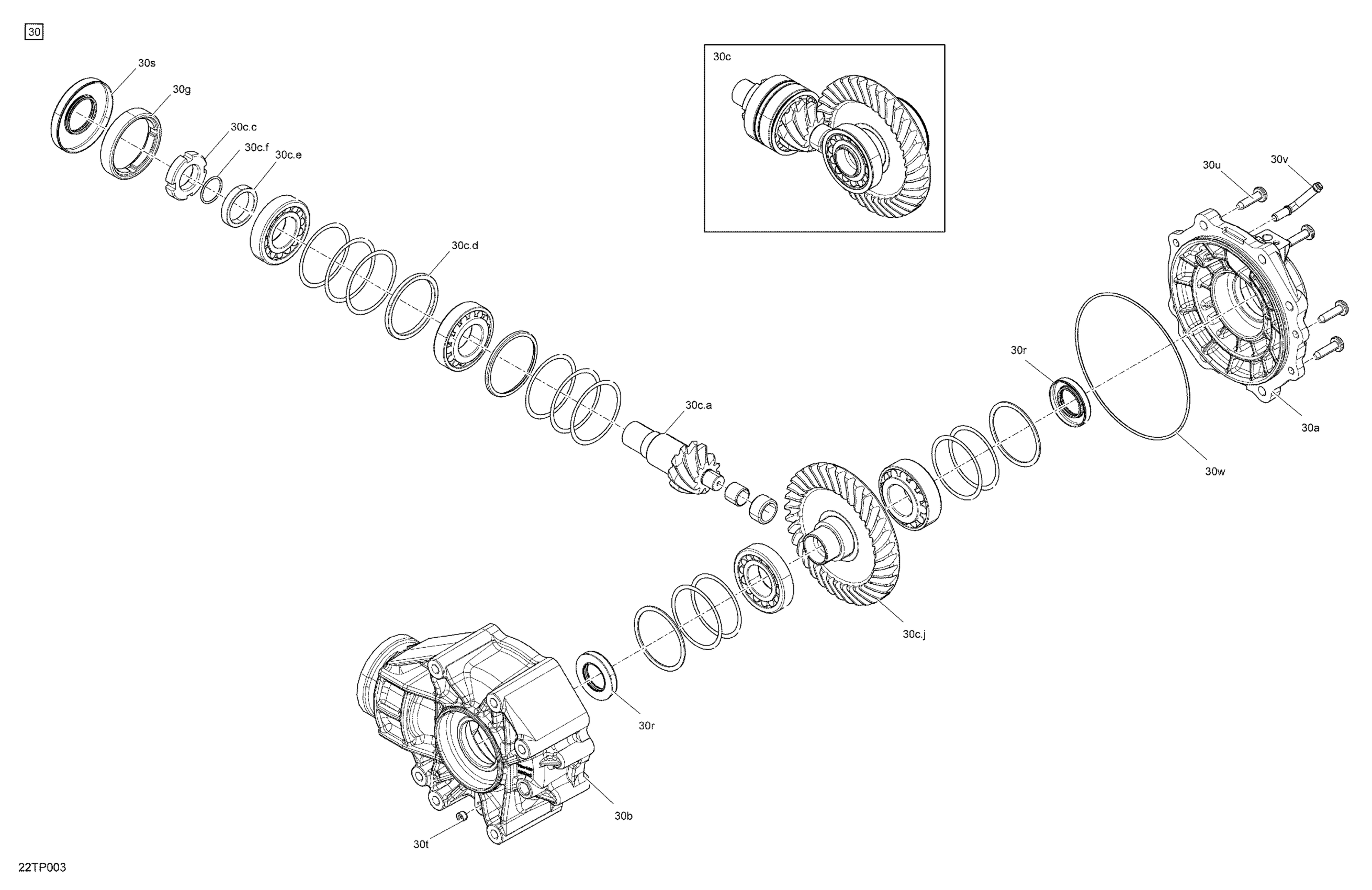

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Drive - Final Drive Unit - XMR Diagram

Description

Price

Final Drive Unit

705502546

$1,064.15

30a

Rear Cover

705502547

$151.46

30b

Rear Pinion Cover

705502180

$270.87

30c

Differential Gear Kit

703500870

$323.61

30c.a

Gear 10 Tooth

705502091

Unavailable

30c.c

Nut

705501550

$20.12

30c.d

Differential Shim

705501552

Unavailable

30c.e

Differential Shim

705501553

Unavailable

30c.f

O-Ring

705501554

$3.94

30c.j

Pinion 36 TH.

705502092

Unavailable

30g

Nut

705501549

$30.57

30r

Oil Seal

705501556

$16.39

30s

Oil Seal

705501557

$17.88

30t

Plug Drain

705501724

$5.94

30u

Screw

705502063

$2.51

30v

Breather Tube

705501584

$13.45

30w

O-Ring

705501711

$8.97
