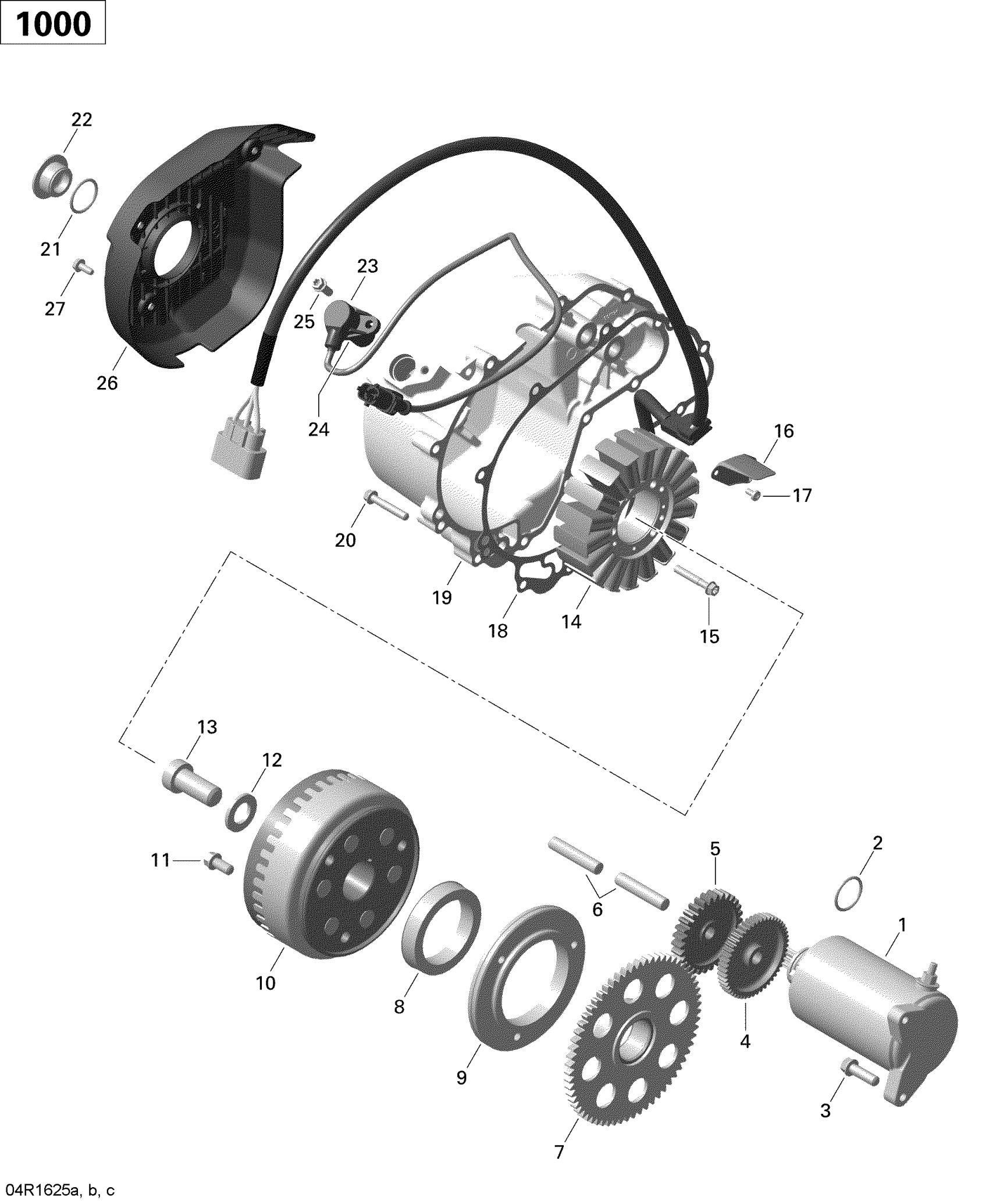

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Magneto and Electric Starter - 1000R EFI (Outlander) Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6

Location Pin 10 M6x50

420229302

$3.17

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

8

Sprag Clutch

420659111

$259.99

9

Sparg Clutch Housing

420659263

$154.99

10

Flywheel, 650W | XT, XTP

420685647

$461.49

11

Torx Flange Screw M8 X 16

420440852

$4.12

12

Shim

420627270

$4.12

13

Socket Head Screw M16 X 35

420241549

$8.57

14

Stator Plate, 650W | XT, XTP

420685632

$319.49

15

Torx Flange Screw M6 X 35

420440274

$1.01

16

Interior Cable Support Ass'y

420251889

$14.30

17

Phillips Screw M4 X 8

420240196

$2.32

18

Gasket

420651203

$35.99

19

Ignition Cover

420212227

$190.49

20

Torx Flange Screw M6 X 35

420440274

$1.01

21

O-Ring

420430782

$5.39

22

Plug Screw M24X 1.5

420241633

$7.41

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

24

O-Ring

420431580

$14.83

25

Torx Flange Screw M6 X 16

420440162

$3.17

26

Cover

420201390

$38.99

27

Taptite Screw M5 x 12

420941935

$1.59
