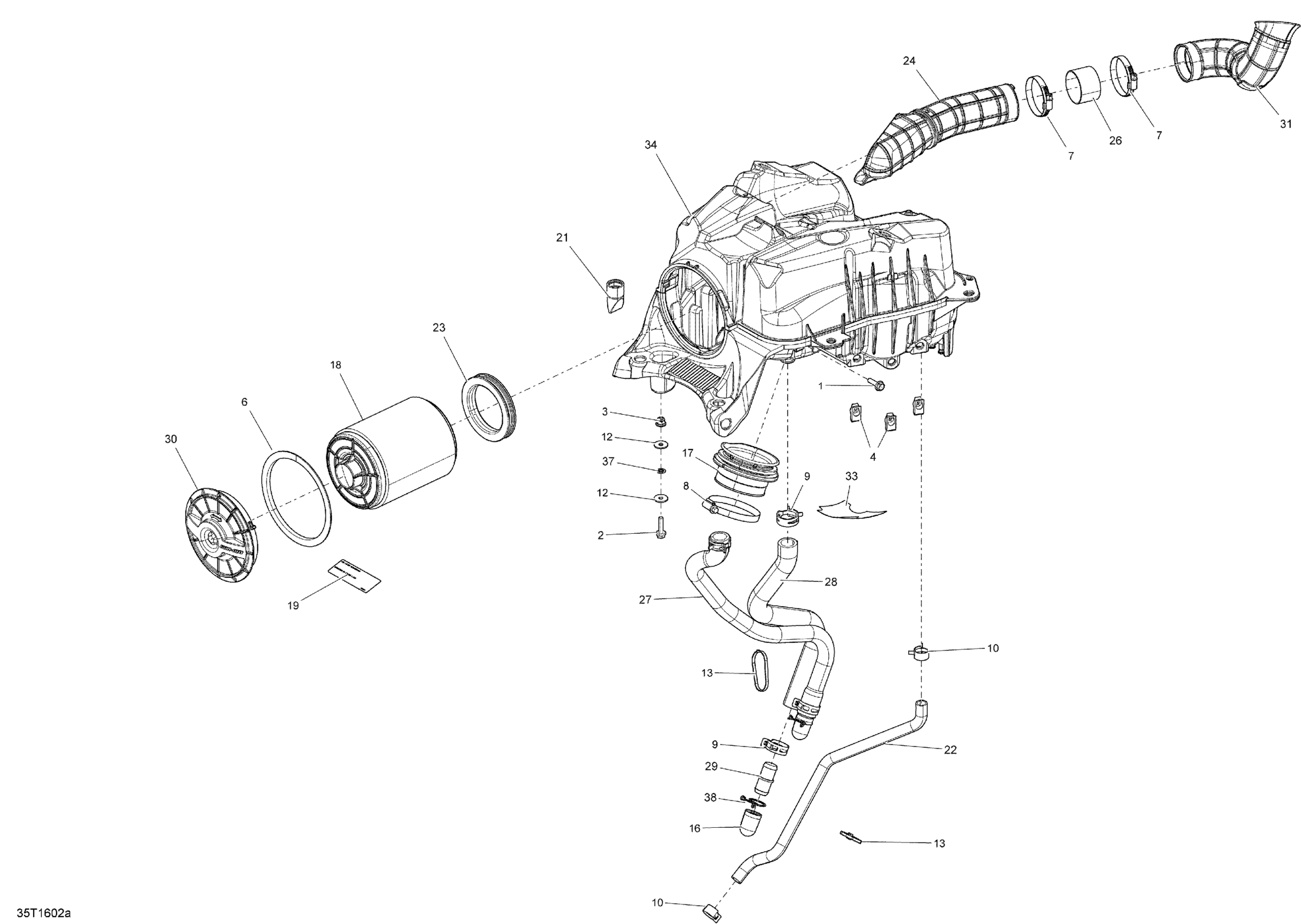

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Air Intake - XMR Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 25

207662534

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Panel Nut M6 X 1.0

250100198

$1.73

Gasket

293300175

$12.49

Norma Clamp

293650077

$6.11

Norma Clamp

293650091

$4.46

Norma Spring Clamp

293650109

$3.88

Norma Clamp

293650110

$4.25

Flat Washer

250200082

$0.35

Tie-Rap 180 mm

414115200

$0.09

Drain Tube

707800080

$6.99

Intake Adaptor

707800333

$17.88

Air Filter

707800371

$36.54

Air Filter Maintenance Decal

707800373

Unavailable

Drain Tube

707800404

$2.89

Vent Hose

707800453

$23.10

Air Filter Adaptor

707800470

$17.88

Air Intake Hose

707800501

$49.97

Ring

707800504

$48.48

Formed Hose

707800510

$32.81

Formed Hose

707800511

$32.81

Straight Fitting

270001073

$9.00

Intake Silencer Cap Ass'y

715002174

$14.42

Air Intake Hose

707800503

$35.79

Air Intake Front

707800528

$35.04

Heat Shield

707002106

$7.67

Welded Air Box

707800599

Unavailable

Push Nut

732610072

$1.72

Retainer Clip

707800278

$12.30
