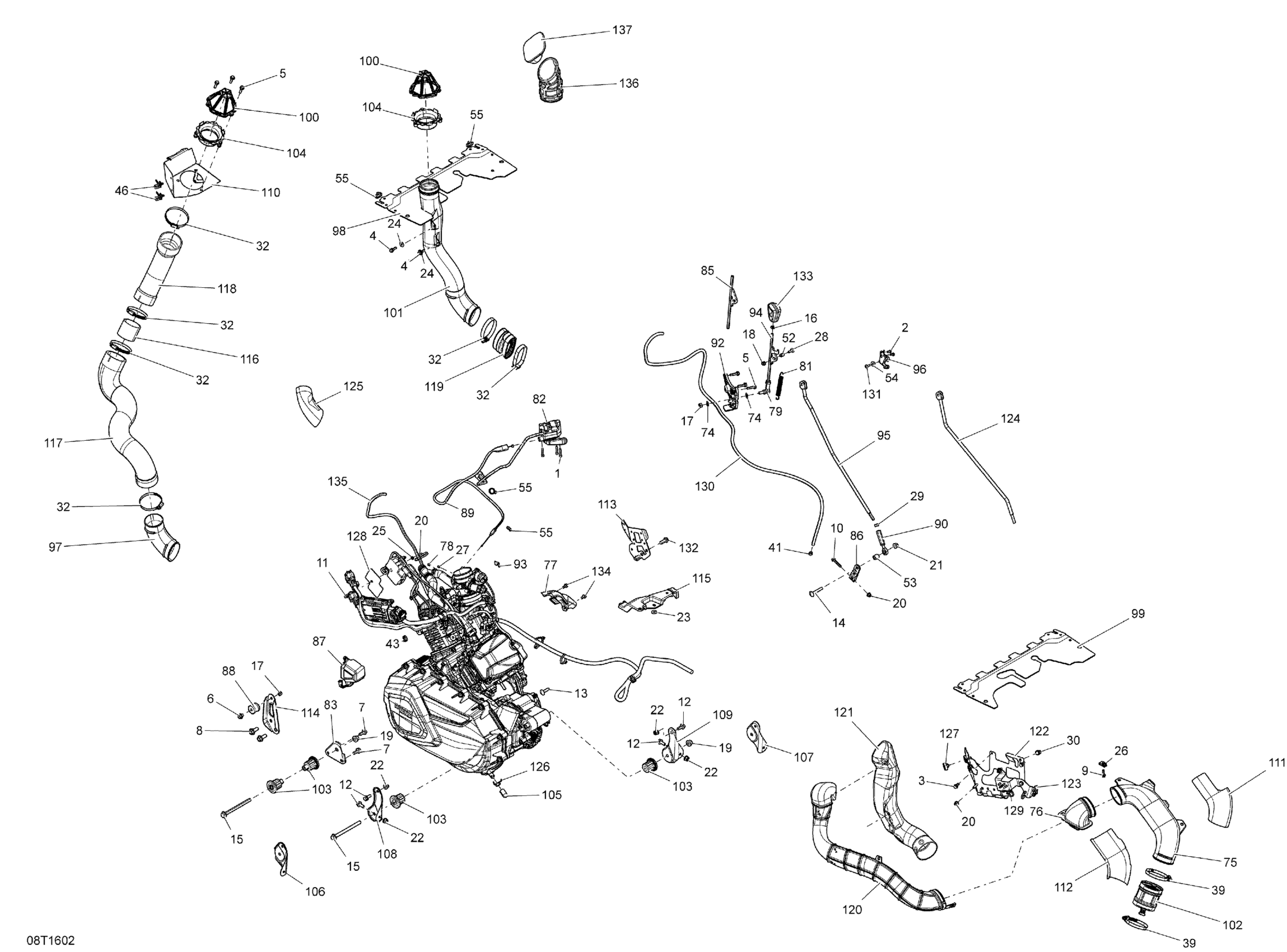

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Engine and Engine Support - All Models Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.90

1

Socket Head Screw M5 X 25

205052588

$1.90

2

Socket Head Screw M5 X 10

205951046

$2.43

2

Socket Head Screw M5 X 10

205951046

$2.43

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Hex. Flange Screw M6 X 25

207562544

$1.69

5

Hex. Flange Screw M6 X 25

207562544

$1.69

6

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

6

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M10 X 25

207602544

$1.69

8

Hex. Flange Screw M10 X 25

207602544

$1.69

9

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M6 X 35

207663544

$0.90

10

Hex. Flange Screw M6 X 35

207663544

$0.90

11

Hex. Flange Screw M6 X 50

207665044

$4.12

11

Hex. Flange Screw M6 X 50

207665044

$4.12

12

Hex. Flange Screw M8 X 20

207682046

$1.90

12

Hex. Flange Screw M8 X 20

207682046

$1.90

13

Carriage Bolt M8 X 30

207783044

$2.11

13

Carriage Bolt M8 X 30

207783044

$2.11

14

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

14

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

15

Hex. Flange Screw M10 X 125

230602546

$7.41

15

Hex. Flange Screw M10 X 125

230602546

$7.41

16

Hex. Jam Nut M8

232180600

$0.67

16

Hex. Jam Nut M8

232180600

$0.67

17

Hex. Elastic Stop Nut M8

232581414

$0.56

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Hex. Flange Nut M6

233161414

$2.11

18

Hex. Flange Nut M6

233161414

$2.11

19

Hex. Flange Elastic Nut M10

233201436

$2.11

19

Hex. Flange Elastic Nut M10

233201436

$2.11

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hex. Elastic Flange Nut M8

233281416

$1.48

22

Hex. Elastic Flange Nut M8

233281416

$1.48

23

Flat Washer 6 mm

234062410

$0.77

23

Flat Washer 6 mm

234062410

$0.77

24

Flat Washer M6, Stainless

234062600

$0.77

24

Flat Washer M6, Stainless

234062600

$0.77

25

External Serrated Lock Washer 6 mm

234461608

$1.15

25

External Serrated Lock Washer 6 mm

234461608

$1.15

26

Panel Nut M6 X 1.0

250100198

$2.11

26

Panel Nut M6 X 1.0

250100198

$2.11

27

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

27

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

28

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

28

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

29

Hex. Nut M8, LH Threads

250100144

$2.00

29

Hex. Nut M8, LH Threads

250100144

$2.00

30

Tuflok Plastic Rivet

293150230

$1.47

30

Tuflok Plastic Rivet

293150230

$1.47

32

Norma Clamp

293650091

$11.12

32

Norma Clamp

293650091

$11.12

32

Norma Clamp

293650091

$11.12

32

Norma Clamp

293650091

$11.12

39

Norma Gear Clamp

293650118

$13.16

39

Norma Gear Clamp

293650118

$13.16

41

Clamp, Oetiker

293650195

$1.09

41

Clamp, Oetiker

293650195

$1.09

42

Crimp Clamp

293650240

$7.20

42

Crimp Clamp

293650240

$7.20

43

Tie Wrap 142 mm

293750002

$1.25

43

Tie Wrap 142 mm

293750002

$1.25

46

Tie-Rap 173 mm

293750009

$1.04

46

Tie-Rap 173 mm

293750009

$1.04

52

Bushing

293900019

$7.73

52

Bushing

293900019

$7.73

53

Bushing

293900106

$4.55

53

Bushing

293900106

$4.55

54

Washer | DS 650 X

391301600

$0.48

54

Washer | DS 650 X

391301600

$0.48

55

Tie-Rap 180 mm

414115200

$0.11

55

Tie-Rap 180 mm

414115200

$0.11

74

Washer

506151252

$3.17

74

Washer

506151252

$3.17

75

Air Outlet

706600019

$37.99

75

Air Outlet

706600019

$37.99

76

CVT Cooling Duct Out

706600400

$54.99

76

CVT Cooling Duct Out

706600400

$54.99

77

Cover OPS

707000410

$13.24

77

Cover OPS

707000410

$13.24

78

Cable Guide

707000434

$11.60

78

Cable Guide

707000434

$11.60

79

RH Ball Joint

707001959

$36.99

79

RH Ball Joint

707001959

$36.99

81

Spring

707000577

$10.99

81

Spring

707000577

$10.99

82

Throttle Handle | 4X4

707000595

$214.99

82

Throttle Handle | 4X4

707000595

$214.99

83

Engine Support

707003319

$10.99

83

Engine Support

707003319

$10.99

85

Shift Arm | Except Europe

707000840

$16.87

85

Shift Arm | Except Europe

707000840

$16.87

86

Lever

707000911

$20.49

86

Lever

707000911

$20.49

87

Cover

707000945

$6.67

87

Cover

707000945

$6.67

88

Rubber Isolator

707000949

$11.49

88

Rubber Isolator

707000949

$11.49

89

Throttle Cable

707000955

$13.24

89

Throttle Cable

707000955

$13.24

90

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

90

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

92

Lever Support

707003054

$6.67

92

Lever Support

707003054

$6.67

93

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

93

SPEED LIMITER - Call your local BRP dealership | Engine 570-850-1000R , Europe Model

707001927

Unavailable

94

Shift Arm | Europe

707001003

$18.55

94

Shift Arm | Europe

707001003

$18.55

95

Shifter Rod

707002068

$33.99

95

Shifter Rod

707002068

$33.99

96

Fixing Plate | Europe

707001042

$39.99

96

Fixing Plate | Europe

707001042

$39.99

97

CVT Air Inlet

707001087

$43.99

97

CVT Air Inlet

707001087

$43.99

98

Upper Water Deflector

707001124

$22.49

98

Upper Water Deflector

707001124

$22.49

99

Deflector

707001129

$20.99

99

Deflector

707001129

$20.99

100

Filter CVT

707001130

Unavailable

100

Filter CVT

707001130

Unavailable

100

Filter CVT

707001130

Unavailable

100

Filter CVT

707001130

Unavailable

100

Filter CVT

707001130

Unavailable

100

Filter CVT

707001130

Unavailable

101

CVT Air Inlet

707002067

$53.99

101

CVT Air Inlet

707002067

$53.99

102

CVT Air Outlet Adaptor

707001168

$15.99

102

CVT Air Outlet Adaptor

707001168

$15.99

103

Vibration Damper

707001169

$42.99

103

Vibration Damper

707001169

$42.99

104

CVT Filter Base

707001171

$8.59

104

CVT Filter Base

707001171

$8.59

104

CVT Filter Base

707001171

$8.59

104

CVT Filter Base

707001171

$8.59

104

CVT Filter Base

707001171

$8.59

104

CVT Filter Base

707001171

$8.59

105

Plug

707001185

$1.15

105

Plug

707001185

$1.15

106

LH Rear Engine Bracket

707001191

$10.99

106

LH Rear Engine Bracket

707001191

$10.99

107

RH Rear Engine Bracket

707001192

$10.99

107

RH Rear Engine Bracket

707001192

$10.99

108

LH Rear Engine Support

707003325

$16.99

108

LH Rear Engine Support

707003325

$16.99

109

RH Rear Engine Bracket

707001194

$16.99

109

RH Rear Engine Bracket

707001194

$16.99

110

CVT Filter Support

707001203

$65.99

110

CVT Filter Support

707001203

$65.99

111

Heat Shield

707001205

$10.49

111

Heat Shield

707001205

$10.49

112

Heat Shield

707001206

$10.49

112

Heat Shield

707001206

$10.49

113

CABLE SUPPORT - Call your local BRP dealership

707001248

Unavailable

113

Cable Support

707003053

$10.49

113

Cable Support

707003053

$10.49

114

Upper Engine Support

707003326

$13.99

114

Upper Engine Support

707003326

$13.99

114

Upper Engine Bracket

707001256

$13.49

114

Upper Engine Bracket

707001256

$13.49

115

Air Outlet Support

707001262

$9.89

115

Air Outlet Support

707001262

$9.89

116

Tube

707001263

$9.79

116

Tube

707001263

$9.79

117

CVT Air Inlet

707001301

$53.99

117

CVT Air Inlet

707001301

$53.99

118

CVT Air Inlet

707001302

$53.99

118

CVT Air Inlet

707001302

$53.99

119

Flexibale Adaptor

707002585

$10.99

119

Flexibale Adaptor

707002585

$10.99

120

Air Outlet

707001496

$81.99

120

Air Outlet

707001496

$81.99

121

Air Outlet

707001497

$43.99

121

Air Outlet

707001497

$43.99

122

Welded Support

707001498

$89.99

122

Welded Support

707001498

$89.99

123

Cover | Package XMR

707001563

$23.99

123

Cover | Package XMR

707001563

$23.99

124

Shifter Rod

707002085

$33.99

124

Shifter Rod

707002085

$33.99

125

Heat Shield

707001654

$2.59

125

Heat Shield

707001654

$2.59

126

Retainer Clip

707800506

$12.63

126

Retainer Clip

707800506

$12.63

127

Rubber Stopper

708000506

$7.55

127

Rubber Stopper

708000506

$7.55

128

Insulator Pad

710000073

$11.12

128

Insulator Pad

710000073

$11.12

129

Tie-Rap Clip

710002896

$4.39

129

Tie-Rap Clip

710002896

$4.39

130

Polyurethane Hose 10000Mm Long

219704410

$56.99

130

Polyurethane Hose 10000Mm Long

219704410

$56.99

131

Torx Screw K50 X 16

250000720

$1.69

131

Torx Screw K50 X 16

250000720

$1.69

132

Screw Socket M10 X 25 | Europe

205402556

$3.91

132

Screw Socket M10 X 25 | Europe

205402556

$3.91

133

Lever Trim

707003211

$8.49

133

Lever Trim

707003211

$8.49

134

Hex. Flange Screw M6 X 12

210261250

$1.90

134

Hex. Flange Screw M6 X 12

210261250

$1.90

135

Polyurethane Hose 10000Mm Long

219704410

$56.99

135

Polyurethane Hose 10000Mm Long

219704410

$56.99

136

CVT Inlet

707001864

$66.99

136

CVT Inlet

707001864

$66.99

137

CVT Filter

707001786

$19.49

137

CVT Filter

707001786

$19.49
