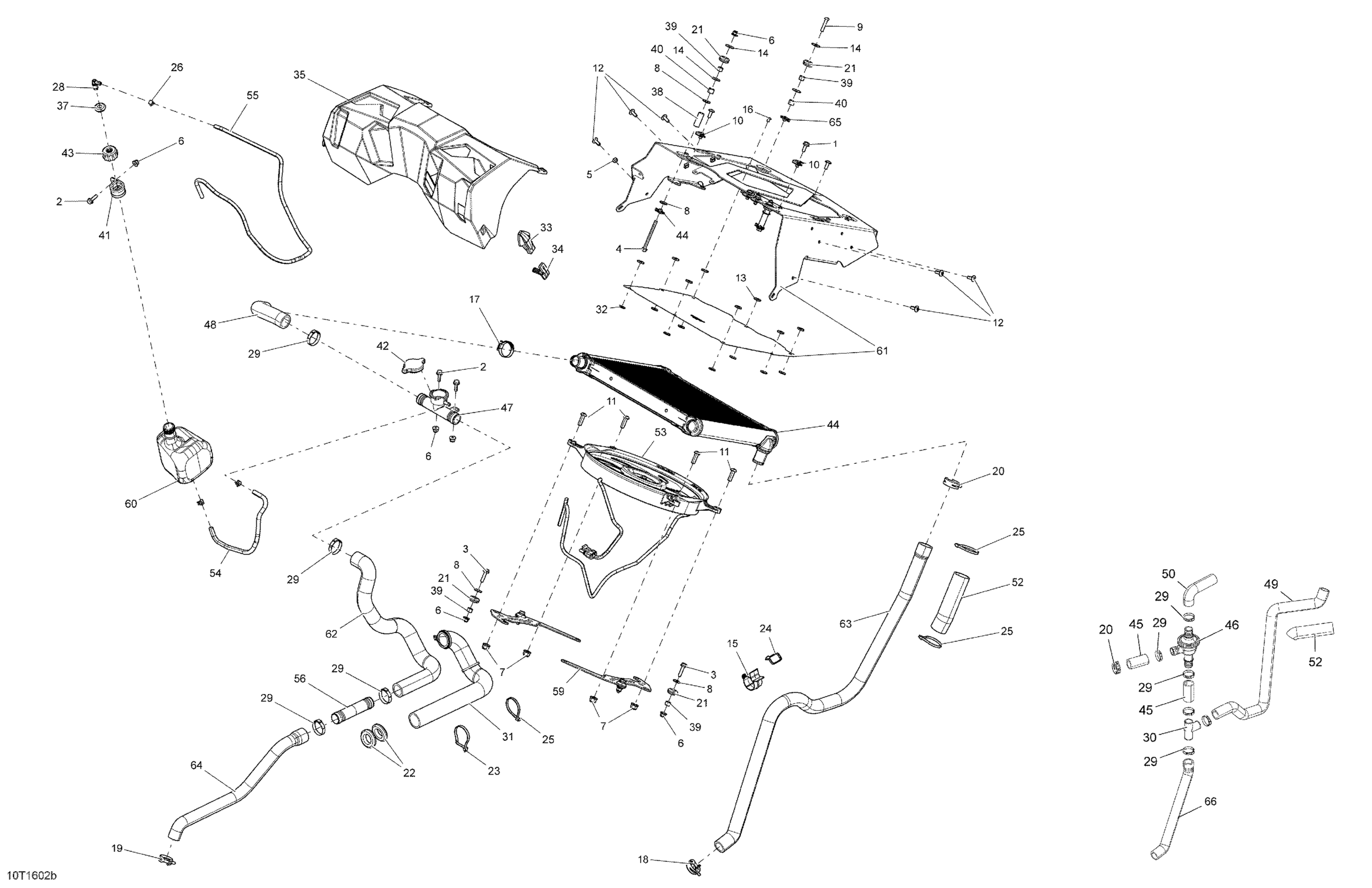

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Cooling System - XMR Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Hex. Flange Screw M6 X 70

207667044

$0.70

5

Elastic Stop Nut M6

232561414

$1.78

6

Flange Elastic Nut M6

233261434

$3.61

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Flat Washer M6, Stainless

234062600

$0.64

9

Torx Screw M6 X 30

235563054

$3.61

10

Panel Nut M6 X 1.0

250100198

$1.73

11

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

12

Torx Head Screw M6 X 16

250000717

$1.74

13

Rubber Washer 5 mm

250200024

$1.77

14

Flat Washer

250200040

$1.76

15

Retainer

275500590

$7.18

16

Rivet 3/16"

293150102

$0.69

17

Norma Gear Clamp

293650098

$4.15

18

Norma Spring Clamp

293650108

$3.88

19

Norma Spring Clamp

293650109

$3.88

20

Norma Spring Clamp

293650166

$4.15

21

Grommet

293720062

$4.16

22

Grommet

293720096

$10.33

24

Tie-Rap 180 mm

414115200

$0.09

26

Spring Clamp

414554800

$0.81

28

Male Connector

414580700

$3.38

29

Gear Clamp

509000162

$5.84

30

T-Fitting

509000219

$14.90

31

Tubing 35 MM 1000MM Long

219704428

$8.57

32

Washer

517124300

$0.16

33

Black Latch Kit | Includes 390 to 400

860200239

$15.64

34

Panel Latch

517303981

$9.49

35

Protection Cover Kit

703100399

$82.06

37

Grommet

705003264

$3.43

38

Bushing

705202499

$6.16

39

Spacer

707000058

$11.81

40

Bushing

708001129

$9.91

41

Hose Anchor

709200036

$10.51

42

Radiator Pressure Cap

709200207

$18.82

43

Cap

709200586

$10.12

44

Radiator

709200286

$444.00

45

Hose

709200299

$6.69

46

Thermostat

709200406

$77.32

47

Filler Neck

709200422

$17.13

48

Hose

709200891

$13.39

49

Outlet Hose

709200899

$33.55

50

Outlet Hose

709200900

$16.39

52

Tubing 35 MM 1000MM Long

219704428

$8.57

53

Fan Ass'y

709200565

$217.13

53

Fan Ass'y

709200567

$253.70

54

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

55

Polyurethane Hose 10000Mm Long

219704410

$46.12

56

Nipple Tube 1"

709200448

$19.37

59

Aupport_Fan Ecoat

709201349

$25.34

60

Coolant Tank Ass'y

709200624

$91.76

61

Deep Black, Radiator Support Kit | Includes 30 to 30j

709201336

$335.79

62

Outlet Hose

709200892

$32.81

63

OUTLET HOSE ENGINE SIDE - Call your local BRP dealership

709200485

Unavailable

64

Outlet Hose

709200484

$32.81

65

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

66

Hose

709200392

$16.39
