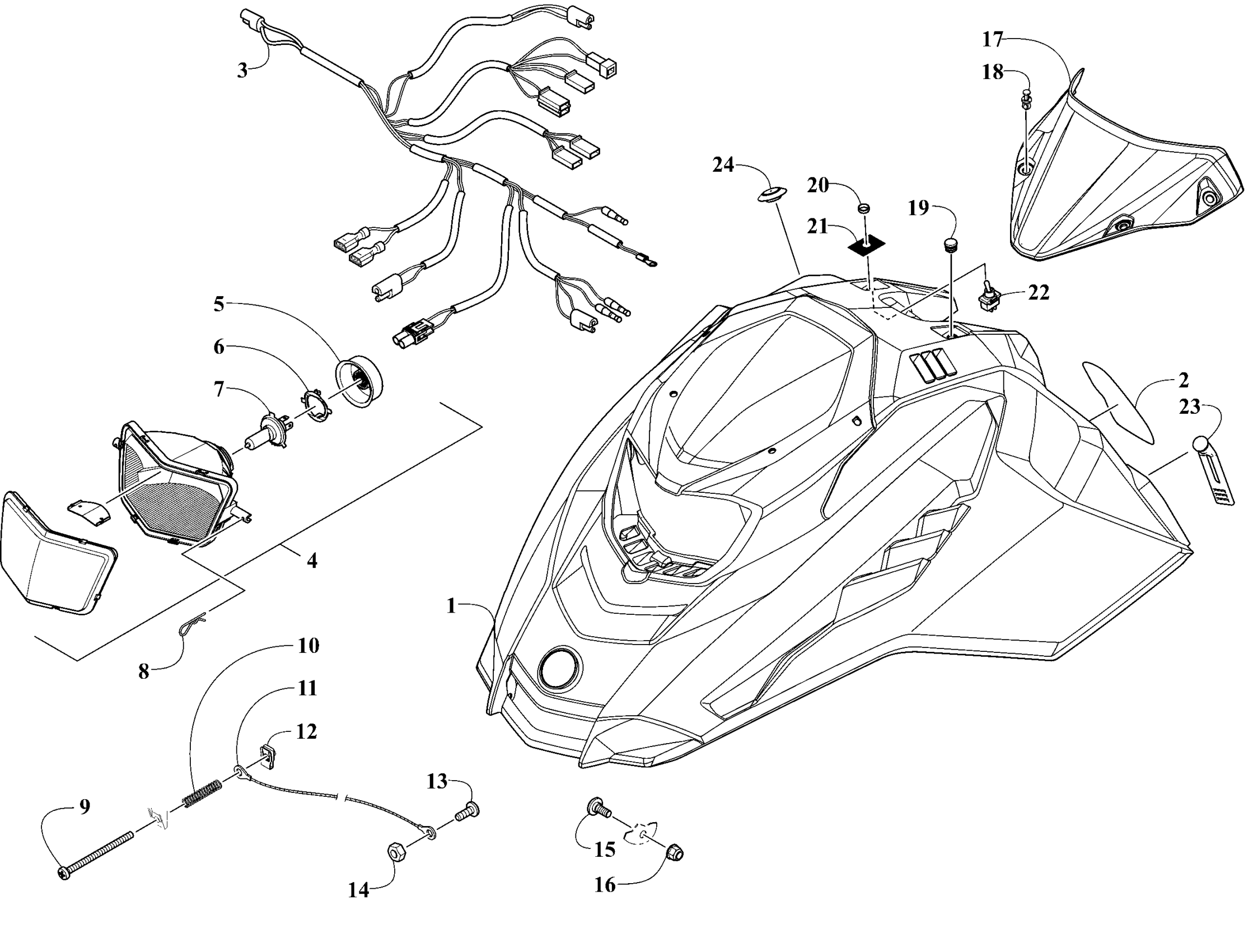

Ski-Doo 011 - MXZ 120 - North America, 2023 Hood, Headlight and Windshield Diagram

Description

Price

Hood

7718-164

$294.99

Decal Hood Warning

8621-364

Unavailable

Main Wiring Harness

1686-794

$139.99

Headlight Ass'y

0609-970

$199.99

Boot

0609-996

$5.19

Retainer H/L

0409-097

$41.99

Headlight Bulb

0609-991

$15.55

Hairpin Clip

0623-847

$1.09

Screw W/Nylon Patch M6X90

2623-256

$5.00

Adjuster SPring

0623-466

$7.89

Hood Cable

7606-964

$10.49

Type U Nut

0423-577

$0.48

Hex Screw Washer Head #10-24X5

0623-420

$1.27

Hex Lock Nut #10-24

8041-246

$0.37

Screw Shoulder M6-1.0

2623-042

$1.99

Hex Lock Nut M6X1.0

8427-603

$0.37

Windshield

1616-352

$37.99

Removable Rivet

H667790

$0.97

Plastic Cap

1602-917

$2.59

Black, Knurled Nut

0609-905

$3.18

Decal Handwarmer

4621-653

$4.29

Toggle Switch SPST

0609-904

$27.49

Hold-Down Strap

1606-930

$14.49

Hole Plug - 1/2''

1623-946

$1.29
