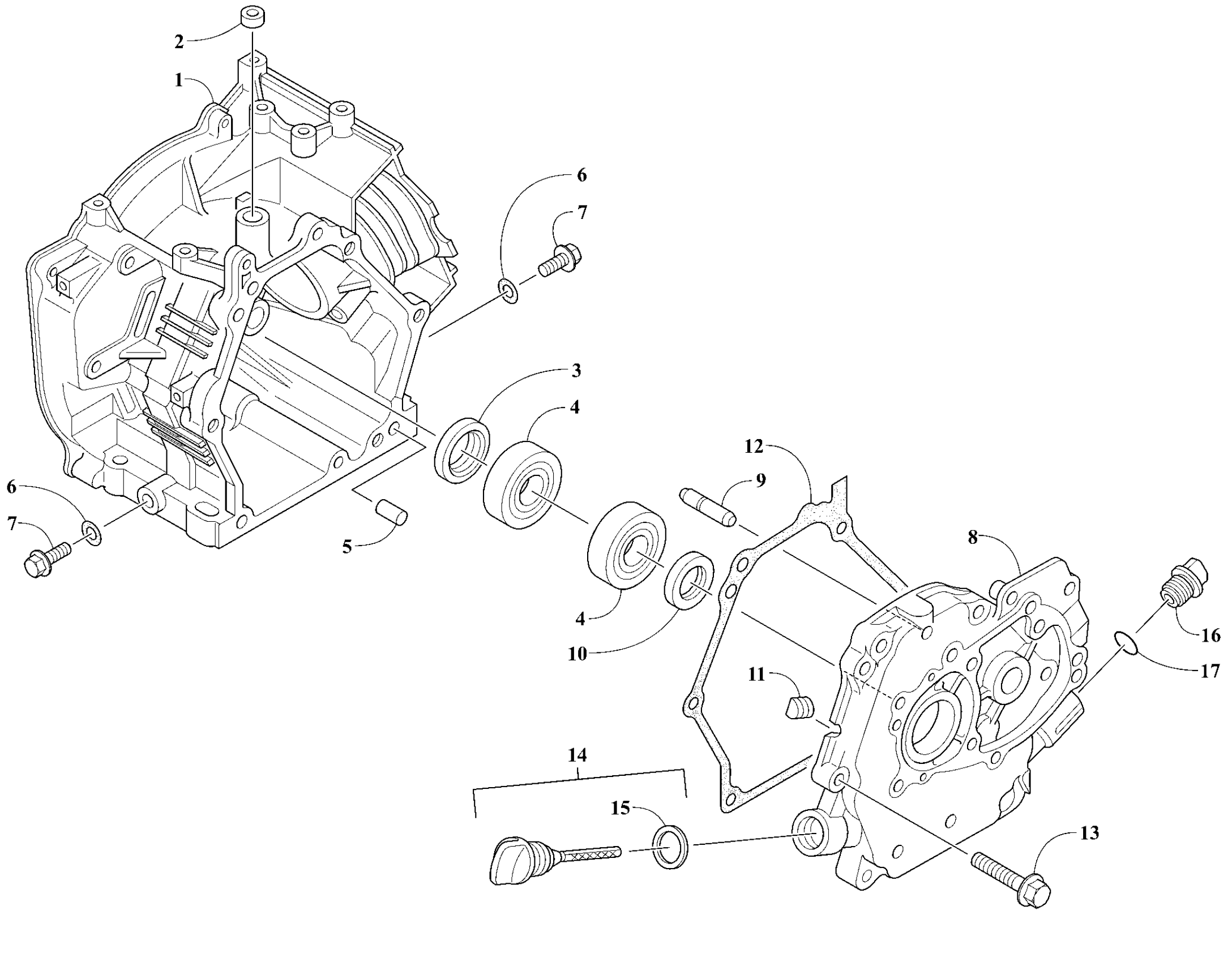

Ski-Doo 011 - MXZ 120 - North America, 2023 Engine - Crankcase and Cover Diagram

Description

Price

CRANKCASE (120) - Call your local BRP dealership

3020-024

$489.99

Oil Seal

3020-111

$13.83

Oil Seal

3020-110

$27.49

Ball Bearing

3020-113

$70.49

Center Pin

3020-127

$3.50

Gasket

3021-799

$4.78

Hex Flange Screw

3021-798

$7.55

Crankcase Cover

3020-062

$351.49

Governor Gear Shaft

3020-040

$16.99

Oil Seal

3020-109

$23.99

Plug

3020-100

$5.42

Crankcase Cover Gasket (200) This part replaces 3020-063.

3021-807

$36.99

Flange Bolt

3021-808

$7.55

Oil Level Gauge

3021-809

$11.70

Gasket

3021-810

$4.78

Oil Level Filling Plug

3020-060

$17.99

O-Ring

3020-112

$4.36
