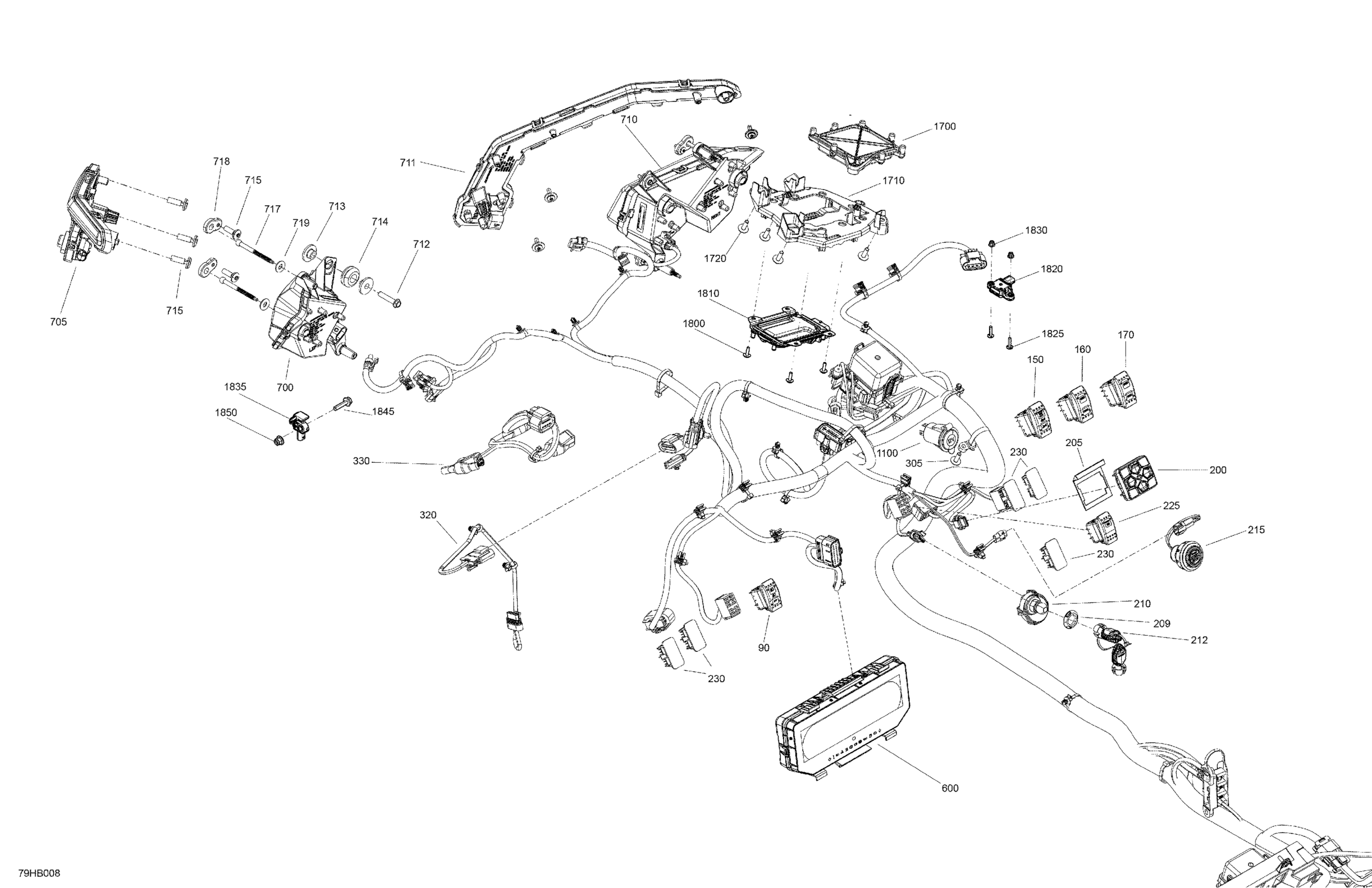

Can-Am Maverick Turbo RR - XRS - 2022 Electric - Front Section Diagram

Headlights Switch

710007022

$69.20

Differential Switch

710006040

$32.28

Differential Mode Switch

710006557

$32.28

Suspension Switch

710007027

$41.51

Switch Multifunction

710006059

$87.66

Rubber Stopper

707900778

$3.98

Safety Nut (DESS Switch)

278002963

$2.72

Ignition Switch

710006855

$77.66

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

Grey, Can-Am DESS Key

515179384

$55.35

Start-Stop Button | Not Shown

710005213

$59.97

Switch, Over ride

710002053

$19.27

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Screw PT Type K-50 X 16

250000959

$1.74

Cable Throttle Pedal

710005291

$226.12

Front Differential Wiring Harness

710006807

$46.12

Multifunction Gauge MID | Model XTP

710007409

$341.51

LH Front Auxiliary LED Light

710008811

$441.74

LH Signature Beam

710004994

$161.51

RH Front Auxiliary LED Light

710008812

$432.24

RH Signature Beam

710004995

$161.51

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shoulder Bushing

710004749

$2.75

Grommet

709000582

$4.38

Screw PT Type K-50 X 16

250000959

$1.74

Ajustment Screw

710005837

$6.45

Adjustment Guide

710005097

$8.45

O-Ring

293300192

$3.85

12V Power Outlet

710005374

$27.27

Differential Module

710008842

$447.66

FDM Support

710005807

$6.92

Screw PT Type K-50 X 16

250000959

$1.74

Screw PT Type K-50 X 16

250000959

$1.74

Electronic Suspension Module

710005234

$479.97

Yaw Rate Sensor

710005998

$170.74

Sensor Support

710006456

$15.22

Hex. Flange Elastic Nut M6

233261494

$1.26

Acceleration Sensor

710004221

$69.20

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Elastic Nut M6

233261494

$1.26
