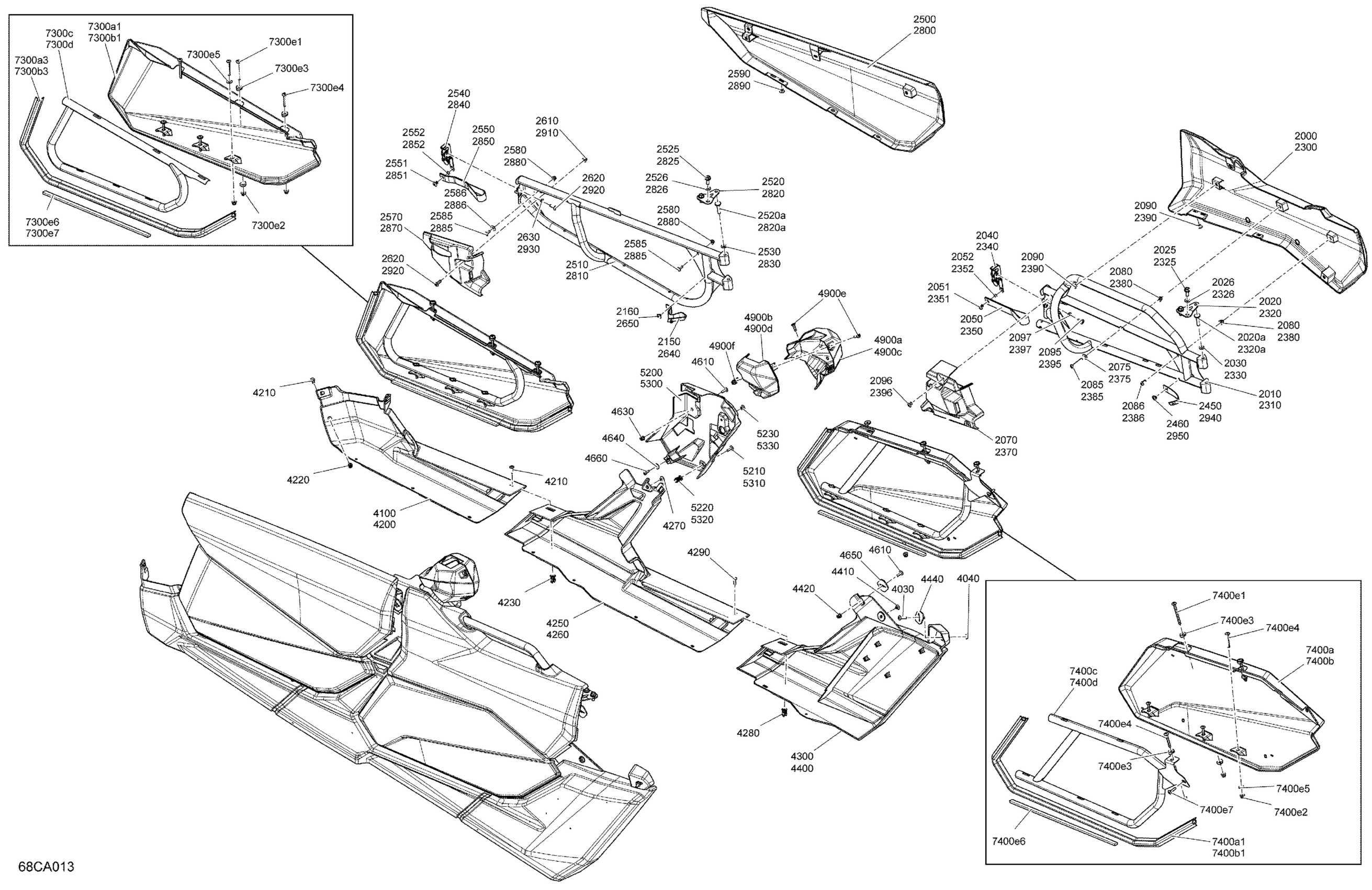

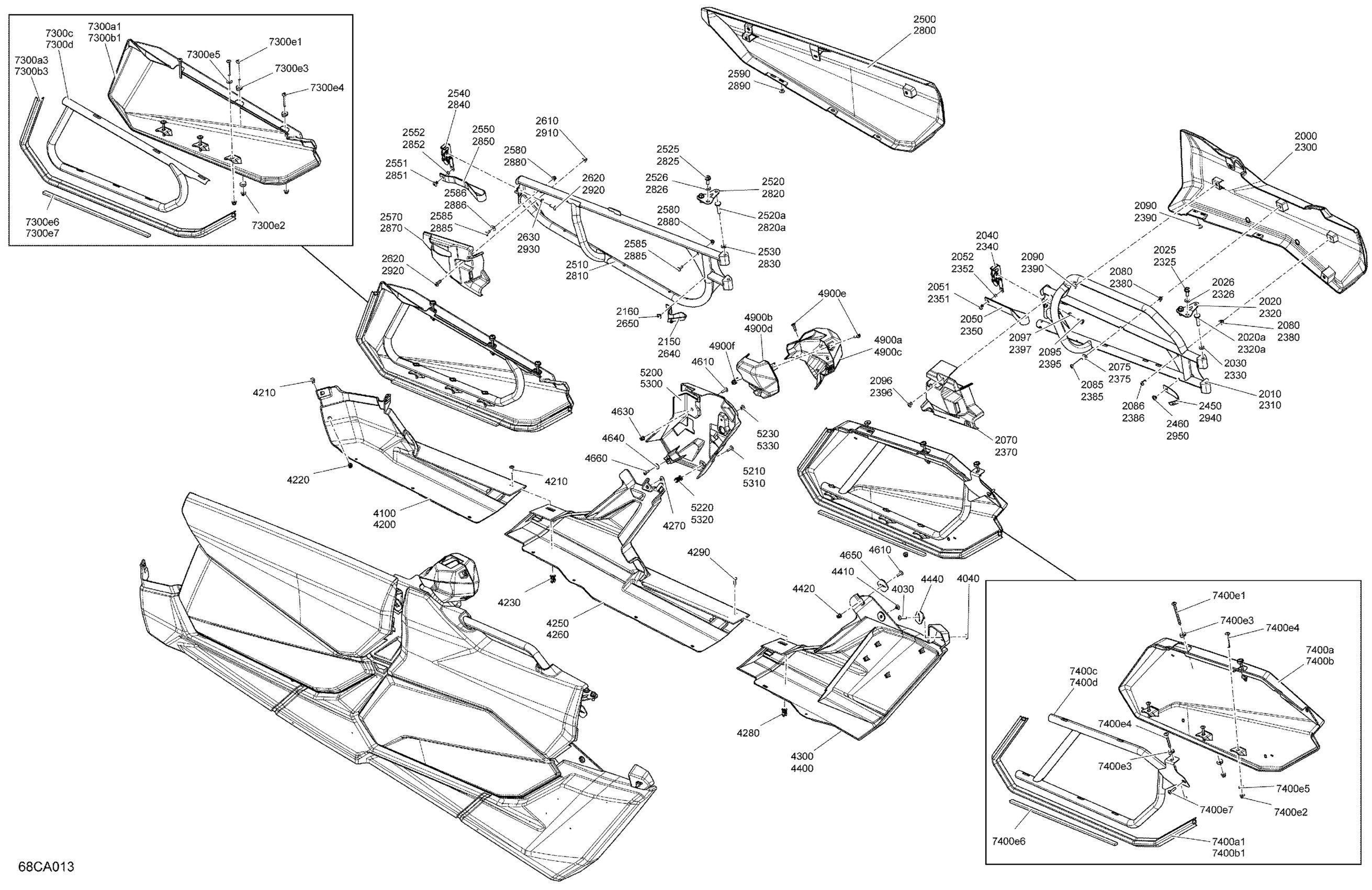

Can-Am Maverick MAX Turbo RR - XMR - 2021 Body - Doors Diagram

#

Description
Price

2000

Mineral Satin Gray, LH Rear Door Panel

705014358

$197.66

2010

Manta Green, LH Rear Door

705016026

$140.74

2020

Door Support

705011187

$10.98

2020a

Weld Pin 8mm X 40mm

250000913

$1.61

2025

Hex Screw Washer Head M8 X 20

207582054

$2.61

2026

Flat Washer M8

234081430

$1.74

2030

Flat Washer 8 mm, Nylon

234081100

$1.00

2040

LH Latch

705013095

$55.35

2050

Belt

293850135

$14.75

2051

Pop Rivet 3/16"

293150103

$0.54

2052

Bushing | DS 650 X

293900104

$5.26

2070

LH Lateral Cover Panel Ass'y

715006612

$10.14

2075

Stainless Steel Flat Washer

234062670

$1.74

2080

Panel Nut M6 X 1.0

250100198

$1.73

2085

Torx Screw M6 X 45

250000748

$1.56

2086

Torx Truss Screw M6 X 16

250000721

$1.39

2090

Pop Rivet 3/16"

293150103

$0.54

2095

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2096

Pop Rivet 3/16"

293150103

$0.54

2097

Flat Washer

224061121

$0.44

2150

Door Belt

293850129

$15.35

2160

Pop Rivet 3/16"

293150103

$0.54

2300

Mineral Satin Gray, RH Rear Door Panel

705014363

$197.66

2310

Manta Green, RH Rear Door

705016027

$140.74

2320

Door Support

705011187

$10.98

2320a

Weld Pin 8mm X 40mm

250000913

$1.61

2325

Hex Screw Washer Head M8 X 20

207582054

$2.61

2326

Flat Washer M8

234081430

$1.74

2330

Flat Washer 8 mm, Nylon

234081100

$1.00

2340

RH Latch

705013096

Unavailable

2350

Belt

293850135

$14.75

2351

Pop Rivet 3/16"

293150103

$0.54

2352

Bushing | DS 650 X

293900104

$5.26

2370

RH Lateral Cover Panel Ass'y

715006613

$10.14

2375

Stainless Steel Flat Washer

234062670

$1.74

2380

Panel Nut M6 X 1.0

250100198

$1.73

2385

Torx Screw M6 X 45

250000748

$1.56

2386

Torx Truss Screw M6 X 16

250000721

$1.39

2390

Pop Rivet 3/16"

293150103

$0.54

2395

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2396

Pop Rivet 3/16"

293150103

$0.54

2397

Flat Washer

224061121

$0.44

2450

Door Belt

293850129

$15.35

2460

Pop Rivet 3/16"

293150103

$0.54

2500

Mineral Satin Gray, LH Front Door Panel

705014335

$197.66

2510

Manta Green, LG Front Door

705016018

$232.28

2520

Door Support

705011187

$10.98

2520a

Weld Pin 8mm X 40mm

250000913

$1.61

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16"

293150103

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2630

Flat Washer

224061121

$0.44

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2800

Mineral Satin Gray, RH Front Door Panel

705014341

$197.66

2810

Manta Green, RH Front Door

705016019

$232.28

2820

Door Support

705011187

$10.98

2820a

Weld Pin 8mm X 40mm

250000913

$1.61

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

Unavailable

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16"

293150103

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Screw M6 X 20, Scotch Grip

250000786

$2.63

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4100

LH Central Lateral Panel

705009513

$64.58

4200

Deep Black, RH Central Body Panel

705017555

$69.20

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4250

LH Rear Central Lateral Panel

705015741

$69.20

4260

RH Rear Central Lateral Panel

705015742

$69.20

4270

Pop Rivet 3/16”

293150108

$1.23

4280

Insert

705016606

$2.31

4290

Torx Screw M6 X 20

250000722

$1.34

4300

LH Rear Lateral Panel

705010676

$110.74

4400

Deep Black, RH Rear Lateral Panel

705010677

$110.74

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4420

Panel Nut M6 X 1.0

250100198

$1.73

4440

Support Plate

705003841

$0.91

4610

Torx Screw M6 X 20

250000722

$1.34

4630

Panel Nut M6 X 1.0

250100198

$1.73

4640

Stainless Steel Flat Washer

234062670

$1.74

4650

Support Plate

705003841

$0.91

4660

Torx Screw K50 X 16

250000720

$1.39

4900a

LH Central Cage Trim

705015489

$33.05

4900b

LH Central Cage Trim

705014860

$33.05

4900c

RH Central Cage Trim

705015490

$33.05

4900d

RH Central Cage Trim

705014862

$33.05

4900e

Torx Screw M6 X 20

250000722

$1.34

4900f

Panel Nut M6 X 1.0

250100198

$1.73

5200

Mineral Satin Gray,LH Central Trim Latch

705014368

$139.20

5210

Torx Screw M6 X 20

250000722

$1.34

5220

Insert

705016606

$2.31

5230

Pop Rivet 3/16"

293150103

$0.54

5300

Mineral Satin Gray,RH Central Trim Latch

705014373

$139.20

5310

Torx Screw M6 X 20

250000722

$1.34

5320

Insert

705016606

$2.31

5330

Pop Rivet 3/16"

293150103

$0.54

7300a1

LH Door Panels

705010271

$105.35

7300a2

LH Lower Door Decal

704907650

$23.05

7300a3

Door Seal

705012018

$18.43

7300b1

RH Door Panels

705010272

$104.58

7300b2

RH Lower Door Decal

704907651

$23.05

7300b3

Door Seal

705012018

$18.43

7300c

Black, LH Door Frame

705012750

$124.58

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$124.58

7300e1

Torx-Truss M/S M6 X 80

250000902

$2.60

7300e2

Hex. Flange Elastic Nut M6

233261494

$1.26

7300e3

Offset Washer

705202223

$4.98

7300e4

Torx Truss Screw M6 X 50

250000749

$3.11

7300e5

Stainless Steel Flat Washer

234062670

$1.74

7300e6

Neoprene Seal (1PAC=3M)

219704364

$22.72

7300e7

Neoprene Seal (1PAC=3M)

219704364

$22.72

7400a

LH Rear Door Panel Ass'y | Includes 7400a to 7400a2

705011468

$129.20

7400a1

Door Seal

705012018

$18.43

7400b

RH Rear Door Panel Ass'y | Includes 7400b to 7400b2

705011469

$129.20

7400b1

Door Seal

705012018

$18.43

7400c

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400d

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400e1

Torx-Truss M/S M6 X 80

250000902

$2.60

7400e2

Hex. Flange Elastic Nut M6

233261494

$1.26

7400e3

Offset Washer

705202223

$4.98

7400e4

Torx Truss Screw M6 X 50

250000749

$3.11

7400e5

Stainless Steel Flat Washer

234062670

$1.74

7400e6

Neoprene Seal (1PAC=3M)

219704364

$22.72

7400e7

Torx Truss Screw M6 X 25

250000807

$1.74
