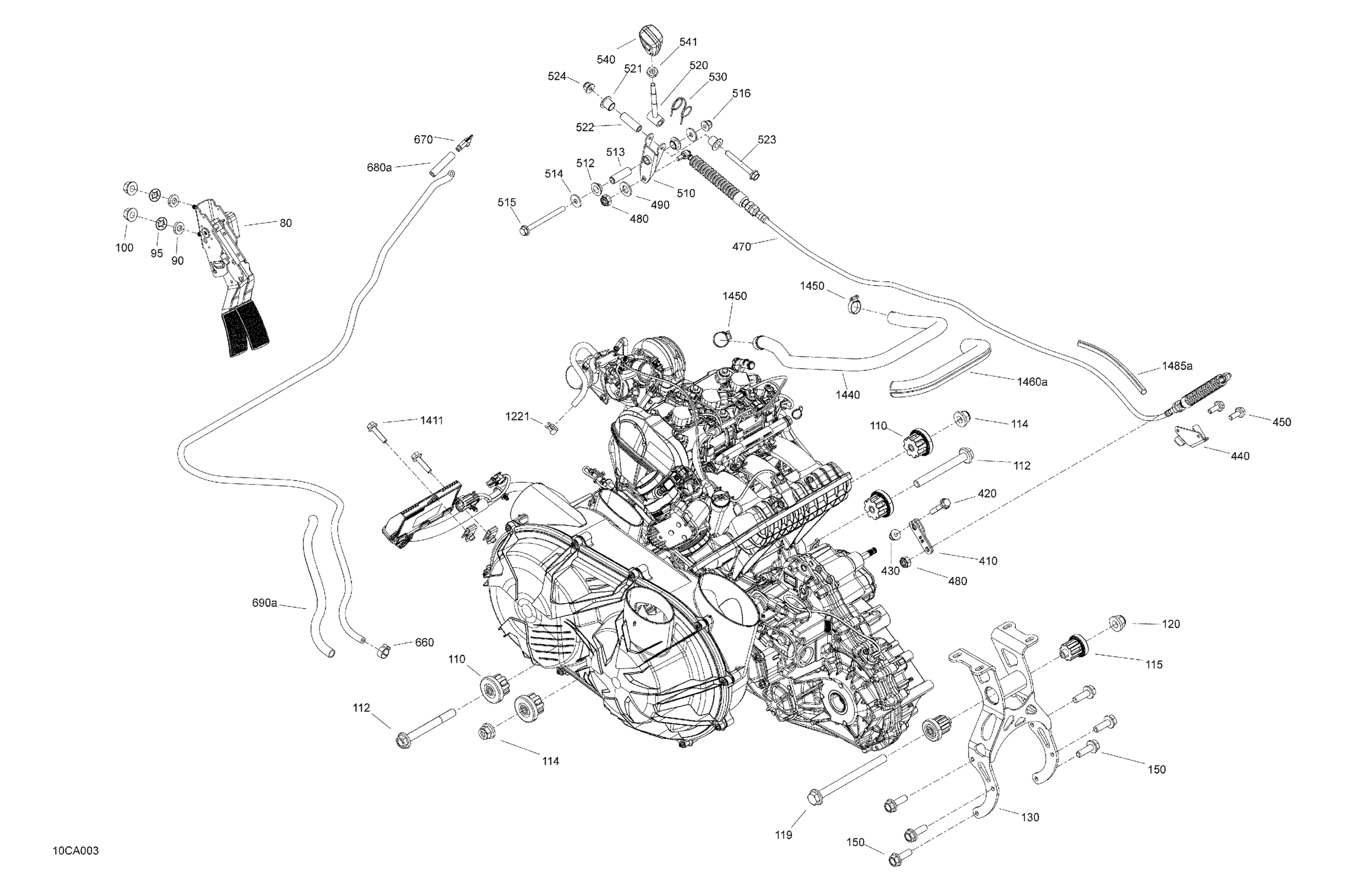

Can-Am Maverick MAX Turbo RR - XMR - 2021 Engine - System Diagram

#

Description
Price

80

Throttle Pedal

707001803

$268.63

90

Bushing

707001990

$2.06

95

Push Nut

250100031

$6.66

100

Hex. Flange Nut

233081436

$1.87

110

Vibration Damper

707002952

$13.40

112

Hex. Flange Screw M10 X 90

207609046

$6.36

114

Hex. Flange Elastic Nut M10

233201436

$2.00

115

Vibration Damper

707002953

$13.40

119

Hex. Flange Screw M10 X 125

230602546

$6.99

120

Hex. Flange Elastic Nut M10

233201436

$2.00

130

Rear Engine Support

707001881

$96.99

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

440

Cable Support

707001614

$14.43

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

470

Shifting Cable

707002037

$65.64

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

510

Lower Lever Arm

707000828

$17.13

512

Flanged Bushing

707000847

$0.97

513

Bushing

707001376

$4.09

514

Flat Washer 6 mm

234062410

$0.73

515

Hex. Flange Screw M6 X 70

207667056

$4.15

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

520

Upper Lever Arm

707000711

$35.79

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$7.72

541

Hex. Jam Nut M8

232180491

$7.09

650a

Hose

219704549

$46.24

660

Oetiker Clamp

293650042

$2.82

670

Elbow Fitting

293710171

$6.75

680a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

690a

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

1221

Spring Clamp

414420700

$0.66

1411

Hex. Flange Screw M6 X 25

207662554

$1.43

1440

Crankcase Hose

707002452

$45.49

1450

Tridon Gear Clamp

293650051

$4.15

1460a

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$12.64

1485a

Tubing 10 MM 1000MM Long

219704407

$2.52
