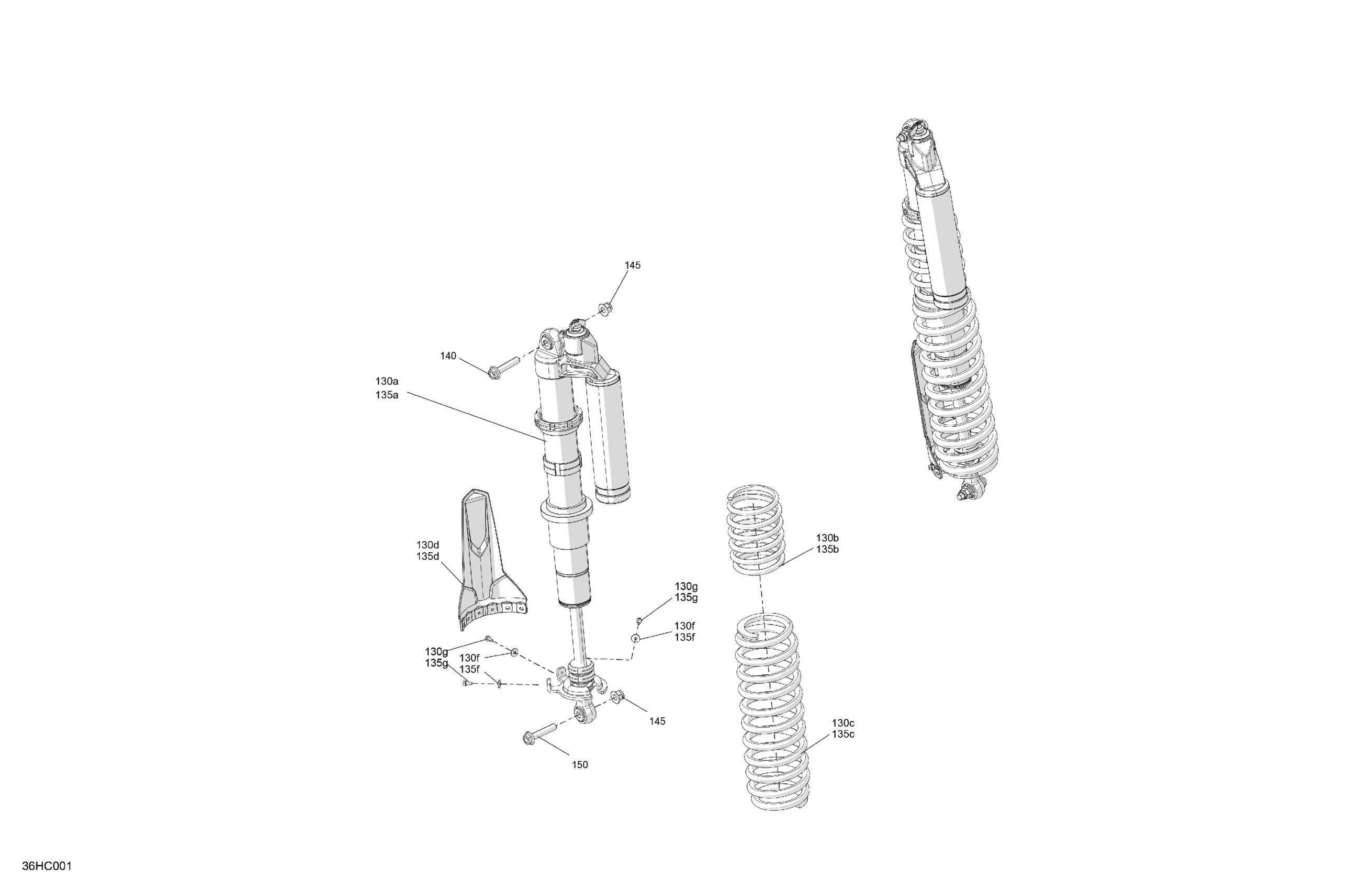

Can-Am 011 - Maverick MAX Turbo RR - RS - North America, 2023 05- Suspension - Rear Shocks Diagram

Description

Price

130a

LH Rear Shock Absorber | Includes 130a to 130a5

706003904

$979.99

130b

Deep Black, Compression Spring

706205335

$126.99

130b

Northern Lichen, Compression Spring | Macchiato Satin Model

706205378

$96.49

130b

Gulfstream Blue, Compression Spring | GulfStream Blue Model

706205379

$96.49

130c

Northern Lichen, Compression Spring | Macchiato Satin Model

706005140

$121.49

130c

Gulfstream Blue, Compression Spring | GulfStream Blue Model

706005141

$121.49

130c

Deep Black, Compression Spring

706005143

$147.99

130d

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

135a

RH Rear Shock Absorber | Includes 135a to 135a5

706003905

$979.99

135b

Deep Black, Compression Spring

706205335

$126.99

135b

Northern Lichen, Compression Spring | Macchiato Satin Model

706205378

$96.49

135b

Gulfstream Blue, Compression Spring | GulfStream Blue Model

706205379

$96.49

135c

Northern Lichen, Compression Spring | Macchiato Satin Model

706005140

$121.49

135c

Gulfstream Blue, Compression Spring | GulfStream Blue Model

706005141

$121.49

135c

Deep Black, Compression Spring

706005143

$147.99

135d

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Hex. Flange Screw M12 X 70

250000858

$3.80
