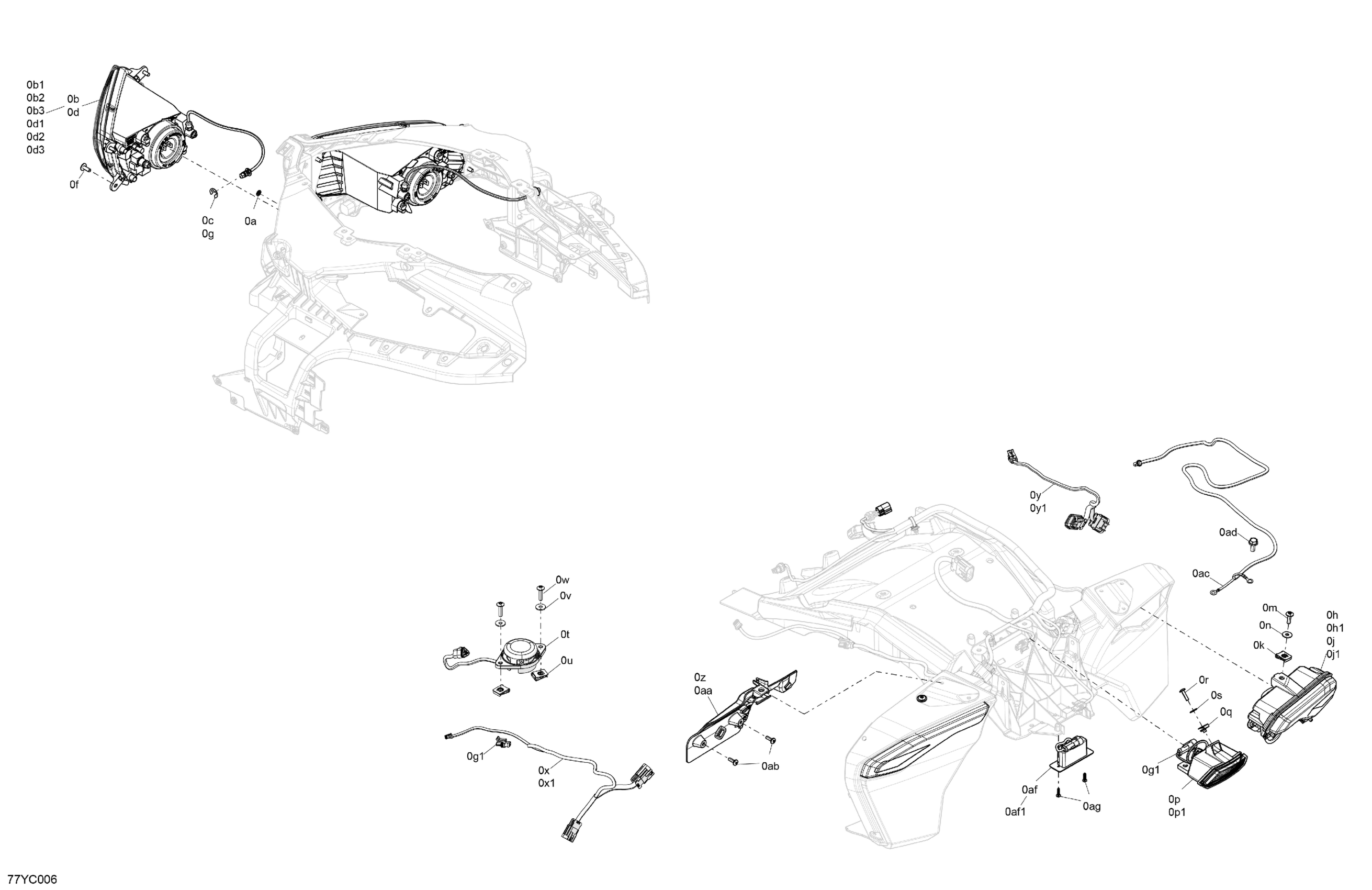

Can-Am F3 LIMITED - Dark Edition - Monolith Black, 2023 Electric - Vehicle Lighting Diagram

Push Nut

250001189

$1.11

LH Headlight | Includes 0b to 0b3

710006997

$240.00

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

Rubber Cap Protector

219800280

$17.66

Spring

219800281

$3.23

E-Circlip

293370013

$0.62

RH Headlight | Includes 0d to 0d3

710006998

$240.00

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

Rubber Cap Protector

219800280

$17.66

Spring

219800281

$3.23

Torx Truss Screw M6 X 16

250000721

$1.39

E-Circlip

293370013

$0.62

Female Housing, 2 Circuits

409209500

$13.48

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

Flasher Bulb

219800304

$7.00

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

Flasher Bulb

219800304

$7.00

Panel Nut M6 X 1.0

250100208

$1.07

Torx Screw M6 X 20

250000722

$1.34

Flat washer M6

250200164

$0.83

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

Bulb 12V 10W

219800322

$9.00

Panel Nut M5 X 0.8

250000958

$3.48

Torx Truss Screw M5 X 20

250000715

$2.06

Stainless Steel Flat Washer M5

234052670

$0.83

Passenger Detection Switch

710008103

$72.28

Panel Nut M6 X 1.0

250100208

$1.07

Stainless Steel Flat Washer

234062670

$1.74

Torx Truss Screw M6 X 25

250000807

$1.74

LH Cargo Harness

710006437

$1,030.00

Housing

710001952

$11.06

Cargo Harness RH

710006429

$28.00

Housing

710001927

$8.57

LH Connector Support

710004643

$13.00

RH Connector Support

710004644

$11.00

Torx Screw K50 X 16

250000720

$1.39

Antenna Cable Ass'y | Includes 0ac to 0ac1

710006980

$122.00

Hex. Flange Screw M8 X 20

207682044

$0.92

License Light | Includes 0an to 0an1

710001451

$76.00

Bulb

219800128

$2.99

Hex. Flange Screw K40 X 16

250001123

$2.06
