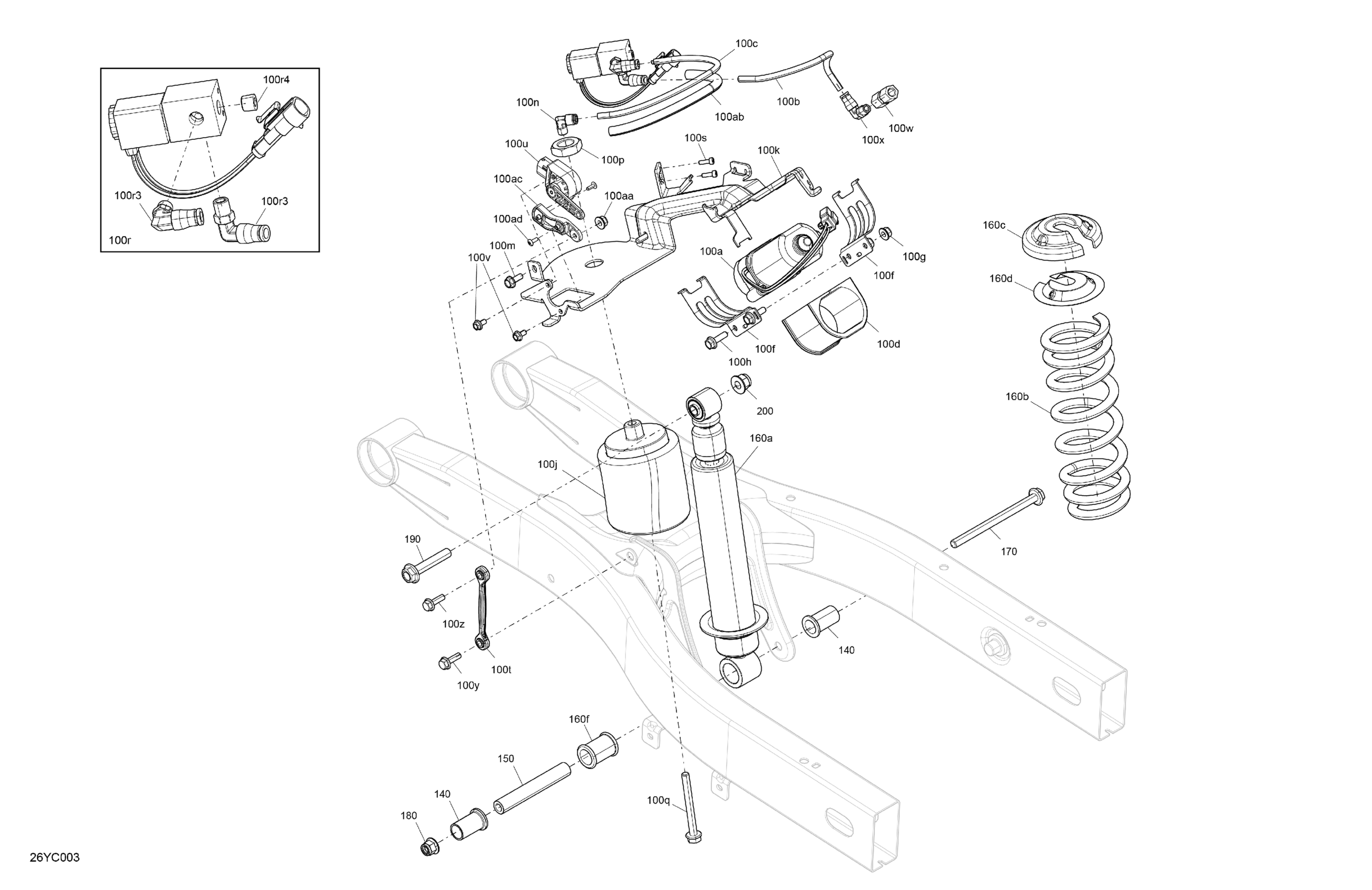

Can-Am F3 LIMITED - Dark Edition - Monolith Black, 2023 Suspension - Rear Shock Diagram

Description

Price

100a

Compressor

706001349

$469.99

100b

Hose 4.32Mm 3000Mm Long

219704415

$55.99

100c

Hose 1/4

706001211

$19.99

100d

Compressor Isolator

706000631

$13.99

100f

Compressor Bracket

503193103

$4.69

100g

Hex. Flange Nut M6

233061414

$1.68

100h

Hex. Flange Screw M6 X 20

207662044

$2.00

100j

Air Damper Kit

219800175

$291.49

100k

Shock Absorber Anchorage

706004660

$18.49

100m

Hex. Forming Screw M6 X 10

210261050

$1.69

100n

Elbow 90°

706001018

$28.99

100p

Jam Nut M20

250100119

$4.13

100q

Hex. Flange Screw M8 X 75

207687544

$7.41

100r

Pressure Collector Ass'y | Included 100r to 100r4

706002169

$299.99

100r3

Elbow 90°

706000928

$27.99

100r4

Plug 1/8”-27

504151921

$4.19

100s

Socket Head Screw M4 X 12

205041254

$2.11

100t

Tie Rod

706202505

$23.99

100u

Suspension Sensor

710004740

$159.99

100v

Hex. Flange Screw M5 X 10

207551044

$4.12

100w

Ckeck Valve

706000831

$38.99

100x

Elbow 90°

706000928

$27.99

100y

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

100z

Hex. Flange Screw M6 X 20

207662044

$2.00

100aa

Hex. Flange Nut M6

233061414

$1.68

100ab

Tubing 6 Mm 3000Mm Long

219704425

$13.75

100ac

Lever

706004639

$13.99

100ad

Torx Truss PT K40 x 12

250001131

$2.11

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

170

Hex. Flange Screw M10 X 140

230604034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
