Description

Price

3000

Chassis Wiring Harness

515178936

$459.99

ACC1

2 Circuits Female Housing

278002853

$17.99

ACC1

Female Terminal

515178014

$2.39

ACC2

2 Circuits Female Housing

278002853

$17.99

ACC2

Female Terminal

515178014

$2.39

BAT+

Open Barrel

710000508

Unavailable

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Molex Housing, 48 Circuits

710001967

$142.99

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001727

$3.19

ECO

4 Circuits Female Housing

515178175

$12.99

ECO

Female Terminal

515178302

$5.39

F1

Little Fuse, 5 Amperes

710000742

$8.79

F10

Little Fuse, 30 Amperes

710000747

$8.49

F2

Little Fuse, 20 Amperes

710000746

$8.49

F3

Little Fuse, 10 Amperes

710000744

$8.79

F4

Little Fuse, 10 Amperes

710000744

$8.79

F5

Little Fuse, 10 Amperes

710000744

$8.79

F6

Little Fuse, 15 Ampere

710000745

$8.49

F7

Little Fuse, 15 Ampere

710000745

$8.49

F8

Little Fuse, 15 Ampere

710000745

$8.49

FA

Fuse Holder Cap

278001326

$7.69

FA

Cushion

278000805

$3.28

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FAN

Female Housing, 2 Circuits

278000217

$9.59

FAN

Wire Seal

278000218

$4.39

FAN

Male Terminal

409004300

$5.61

FB1

Case Ass'y with seal, 24 positions

278002824

$35.99

FB1

Seal Plug

278002880

$7.86

FB1

Wire Seal

278000218

$4.39

FB1

Female Terminal

710000890

$4.55

FB1

Female Terminal

710000918

$7.69

FB1C

Fuse Box Cover

515178559

$13.62

FB1C

Little Fuse, 10 Amperes

710000744

$8.79

FB1C

Little Fuse, 15 Ampere

710000745

$8.49

FB1C

Little Fuse, 20 Amperes

710000746

$8.49

FB2

Housing

515178311

$35.99

FB2

Female Terminal

710006126

$4.23

FB2

Female Terminal

710000274

$9.59

FB2C

Cover

515178310

$14.74

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

GND

Open Barrel Terminal

278001392

$4.79

HIC

Female Housing, 4 circuits

278003535

$25.99

HIC

Female Terminal

515178018

$1.19

HIC_RV

Housing 6 Circuits

278003866

$13.75

HIC_RV

Male Terminal

515178013

$3.19

HL1

Female Housing

515178006

$15.28

HL1

Seal Wire

710001332

$3.28

HL1

Terminal

710001228

$3.28

HL2

Female Housing

515178006

$15.28

HL2

Seal Wire

710001332

$3.28

HL2

Terminal

710001228

$3.28

HO2S1

Clip

710000992

$4.29

HO2S1

Housing

710002466

$3.19

HO2S1

Lock

515178661

$4.44

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HO2S1

Terminal

710000736

$5.50

MG

Female Housing 20 Circuits

278002858

$22.49

MG

Female Terminal

515178018

$1.19

MG

Female Terminal

515178014

$2.39

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710001932

$3.27

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RY1

Relay

715900824

$21.99

RY2

Relay, 30 AMP

515176774

$21.99

RY3

Relay

715900824

$21.99

RY4

Relay, 30 AMP

515176774

$21.99

RY5

Relay

715900824

$21.99

RY6

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

SH

12 Circuits Male Housing

515178015

$13.16

SH

Male Terminal

515178013

$3.19

STR 4P

Male Housing Connector 4 Pins

515178347

$14.28

STR 4P

Male Terminal

515178013

$3.19

STR 6P

Housing 6 Circuits

278003866

$13.75

STR 6P

Male Terminal

515178013

$3.19

TAS

Clip

710000992

$4.29

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19

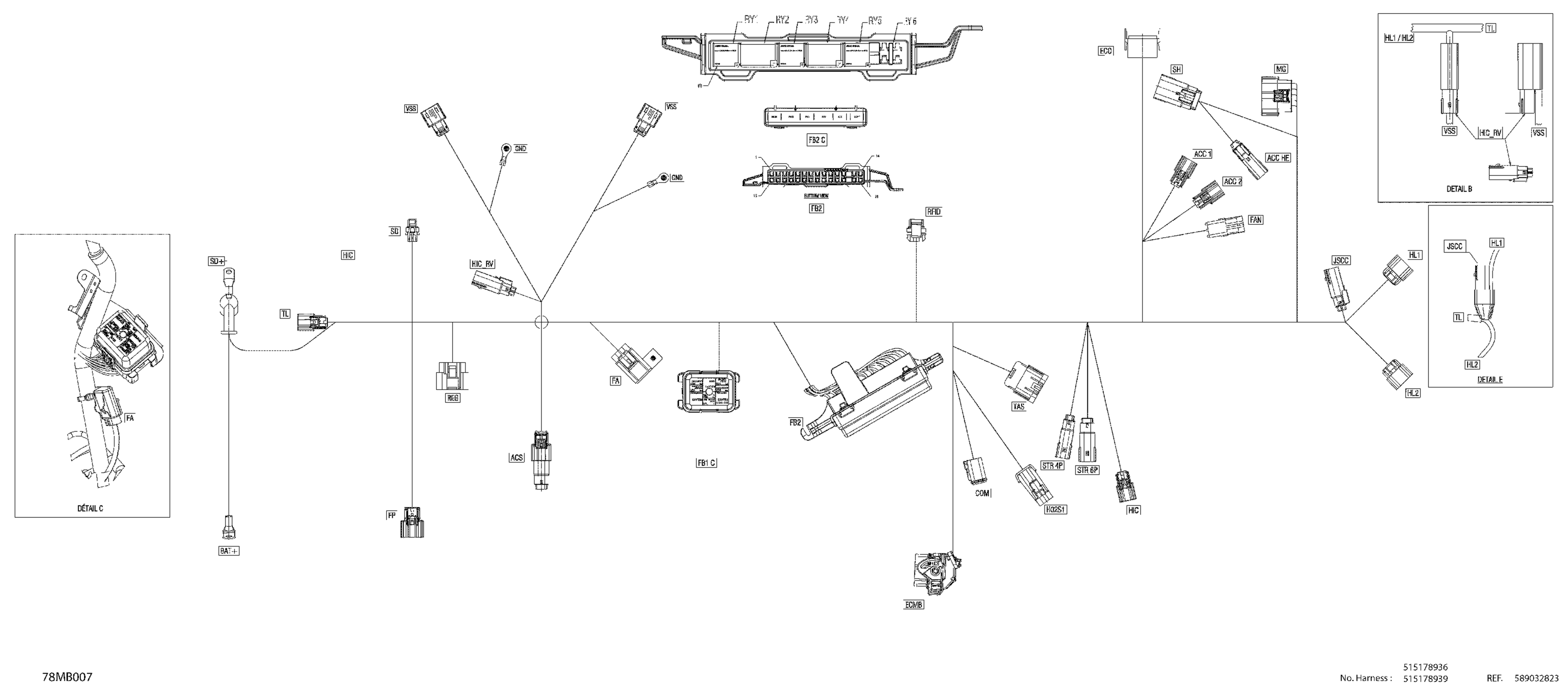

Ski-Doo 011 - EXPEDITION SWT 900 ACE - North America, 2022 08- Electric - Main Harness - 515178936 Diagram

Chassis Wiring Harness

2 Circuits Female Housing

Female Terminal

2 Circuits Female Housing

Female Terminal

Open Barrel

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Female Terminal

Female Terminal

4 Circuits Female Housing

Female Terminal

Little Fuse, 5 Amperes

Little Fuse, 30 Amperes

Little Fuse, 20 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 15 Ampere

Little Fuse, 15 Ampere

Fuse Holder Cap

Cushion

Fuse

Fuse Holder

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Case Ass'y with seal, 24 positions

Seal Plug

Wire Seal

Female Terminal

Female Terminal

Fuse Box Cover

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Housing

Female Terminal

Female Terminal

Cover

Female Housing

Female Terminal

Open Barrel Terminal

Female Housing, 4 circuits

Female Terminal

Housing 6 Circuits

Male Terminal

Female Housing

Seal Wire

Terminal

Female Housing

Seal Wire

Terminal

Clip

Housing

Lock

Seal

Gold Terminal

Terminal

Female Housing 20 Circuits

Female Terminal

Female Terminal

Female Housing, 3 Circuits

Cap

Seal

Terminal

Housing

Wire Seal

Female Terminal

Relay

Relay, 30 AMP

Relay
