Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

415130720

$3.00

10e

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10f

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10k

RH Rear Suspension Support

518332254

$109.99

10m

LH Rear Suspension Support

518332253

$109.99

10n

RH Footrest Reinforcement

518329789

$19.99

10p

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10s

RH Roller

518329648

$194.99

10t

LH Roller

518328452

$194.99

10u

RH Tunnel Liner

518329646

$35.99

10v

LH Tunnel Liner

518329647

$35.99

10y

Radiator Tunnel 154

518335121

$625.49

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap

518332481

$83.99

10ae

RH Footrest

518331822

$24.49

10af

Black, Dart 8 mm

293730047

$2.21

10ag

Black, Dart 10 mm

293730060

$4.55

10ah

Black, Plug

293730052

$9.19

10aq

Rivet Avibulb 3/16

293150203

$2.09

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Collar Huck Magna-Grip 6.4

293150149

$0.48

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

70

Hex Screw M8 X 30

250000942

$1.15

75

Hemlock Rivet, 6.5 mm

293150096

$3.27

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$619.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

100b

Leg Bushing

505072690

$12.49

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Bushing

505072690

$12.49

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518332715

$36.99

100h

Rivet Avibulb 3/16

293150203

$2.09

100j

Insert M5 X 0.8

293450268

$2.09

100m

Hex. Flange Screw M6 X 25

250000945

$4.44

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100p

Oil Plate

518329454

$18.49

100q

Torx Truss Screw M6 X 12

250000767

$2.00

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Hemlock Rivet 6.5 mm

293150120

$7.41

127

Rivet 6,4 mm

293150173

$4.29

128

Hemlock Rivet, 6.5 mm

293150119

$4.29

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207662046

$2.11

300

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

350

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

400

Chassis Suspension Module

518334461

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 X 20

207662046

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

435

Hex. Flange Screw M6 X 20

207562056

$2.11

440

Ornit Rivet 6,5 X 14.5

293150266

$2.40

800

LH Under Chassis Reinforcement

518332514

$12.99

810

RH Under Chassis Reinforcement

518332516

$12.99

820

Cross Member Support

518331733

$33.99

830

Hemlock Rivet, 6.5 mm

293150119

$4.29

850

Hemlock Rivet, 6.5 mm

293150119

$4.29

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet

293150183

$2.11

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$119.99

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329370

$22.49

1105

Upper Side Column Support

518330916

$22.49

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1150

Hex. Flange Screw M6 X 20

207562056

$2.11

1160

Hemlock Rivet, 6.5 mm

293150119

$4.29

1170

Muffler Support Ass'y

518334031

$21.99

1200

Center Column Support

518329906

$3.59

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

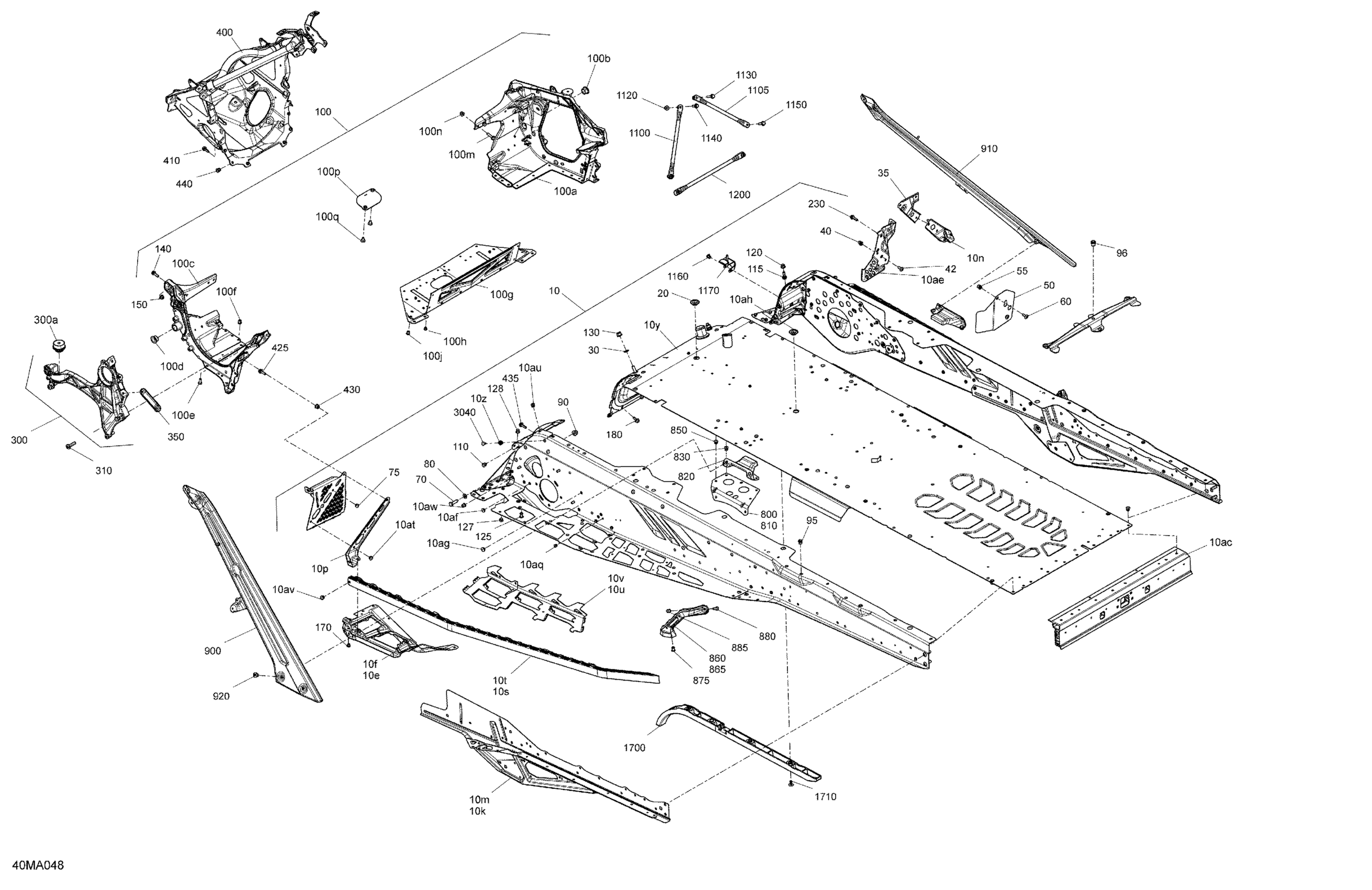

Ski-Doo EXPEDITION SWT 900 ACE - 2021 Frame - System - SWT Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

Deep Black, RH Footrest Reinforcement

Deep Black, LH Footrest Reinforcement

RH Rear Suspension Support

LH Rear Suspension Support

RH Footrest Reinforcement

Deep Black, LH Chasssis Reinforcement

RH Roller

LH Roller

RH Tunnel Liner

LH Tunnel Liner

Radiator Tunnel 154

Insert Half Hex Body M6 x 1.0

Rear Cap

RH Footrest

Black, Dart 8 mm

Black, Dart 10 mm

Black, Plug

Rivet Avibulb 3/16

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.4 mm

Collar Huck Magna-Grip 6.4

Black, Plug

Flat Washer 8 mm

RH Stirrup Reinforcement

Insert

Torx Head Screw M6 X 16

Heat Shield

Insert

Torx Head Screw M6 X 16

Hex Screw M8 X 30

Hemlock Rivet, 6.5 mm

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Insert

Insert

Engine Chassis Module Ass'y | Includes 100 to 100m

RH Side Member Ass'y | Includes 100a to 100a3

Leg Bushing

LH Side Member Ass'y | Includes 100b to 100b2

Leg Bushing

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Bottom Plate

Rivet Avibulb 3/16

Insert M5 X 0.8

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Oil Plate

Torx Truss Screw M6 X 12

Ornit Rivet 6,5 X 14.5

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Hemlock Rivet 6.5 mm

Rivet 6,4 mm

Hemlock Rivet, 6.5 mm

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Insert M5 - 0.8

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

LH Side Member Ass'y | Includes 300 to 300b

Vibration Damper

Screw-Pan HD.Torx M8X30

LH Front Chassis Reinforcement | Includes 350 to 350a

Chassis Suspension Module

Screw-Forming Hex.HD.FL. M6 X 16

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 20

Ornit Rivet 6,5 X 14.5

LH Under Chassis Reinforcement

RH Under Chassis Reinforcement

Cross Member Support

Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

Deep Black LH Rear Footrest Reinforcement
