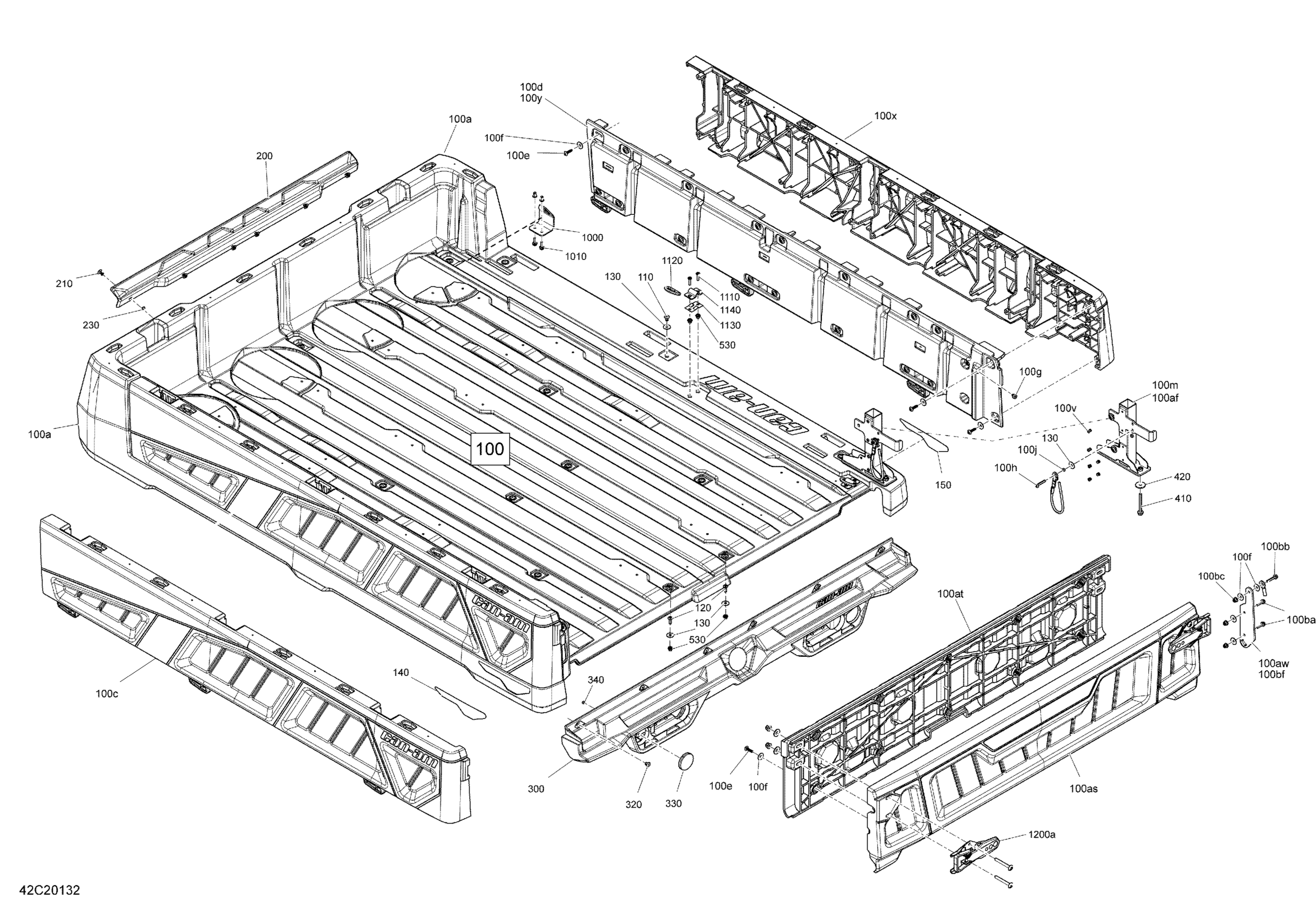

Can-Am Defender PRO HD10 - 2020 Rear Cargo Box Diagram

#

Description
Price

100

Cargo Box Inside Ass'y

715007479

$1,999.97

100a

Cargo Box Inside Ass'y

715007479

$1,999.97

100c

LH Cargo Panel

708303499

$544.58

100d

LH Cargo Panel

708303499

$544.58

100e

Hex. Screw Pt K60 X 25

250000980

$1.74

100f

Flat Washer M6.6 X 22

250200162

$1.91

100g

Rubber Bumper

293830005

$5.33

100h

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

100j

Bushing

293900101

$6.35

100m

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$115.35

100v

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

100x

RH Cargo Panel

708303500

$544.58

100y

RH Cargo Panel

708303500

$544.58

100af

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$115.35

100as

Tailgate Ass'y

708303501

$401.51

100at

Tailgate Ass'y

708303501

$401.51

100aw

LH Tailgate Support

708303138

$27.66

100ba

Hex. Flange Screw M6 X 25

207662554

$1.48

100bb

Hex. Flange Screw M6 X 35

207663554

$1.74

100bc

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100bf

RH Tailgate Support

708303141

$27.66

110

Pop Rivet 3/16”

293150108

$1.23

120

Torx Screw M6 X 20

250000722

$1.34

130

Flat Washer M6.6 X 22

250200162

$1.91

140

LH Rear Reflector

708303264

$11.15

150

RH Rear Reflector

708303265

$11.15

200

Deflector

708303216

$55.35

210

Pop Rivet 3/16”

293150108

$1.23

230

Washer

517124300

$0.16

300

Taillight Support

708303496

$96.89

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

330

Red Reflector

705011221

$12.32

340

Elastic Stop Nut M5

232551414

$0.72

410

Hex. Flange Screw M8 X 70

207587044

$1.00

420

Flat Washer M8

250200187

$2.08

530

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1000

Retaining Plate

708301480

$8.45

1010

Hex. Flange Screw M6 X 20

207662054

$0.83

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$1.74

1120

D-Ring

708302990

$4.98

1130

Tie-Down Ring Spring

708302991

$2.75

1140

Tie-Down Ring Bracket

708302992

$2.75

1200a

Latch Ass'y

511001014

$36.12
