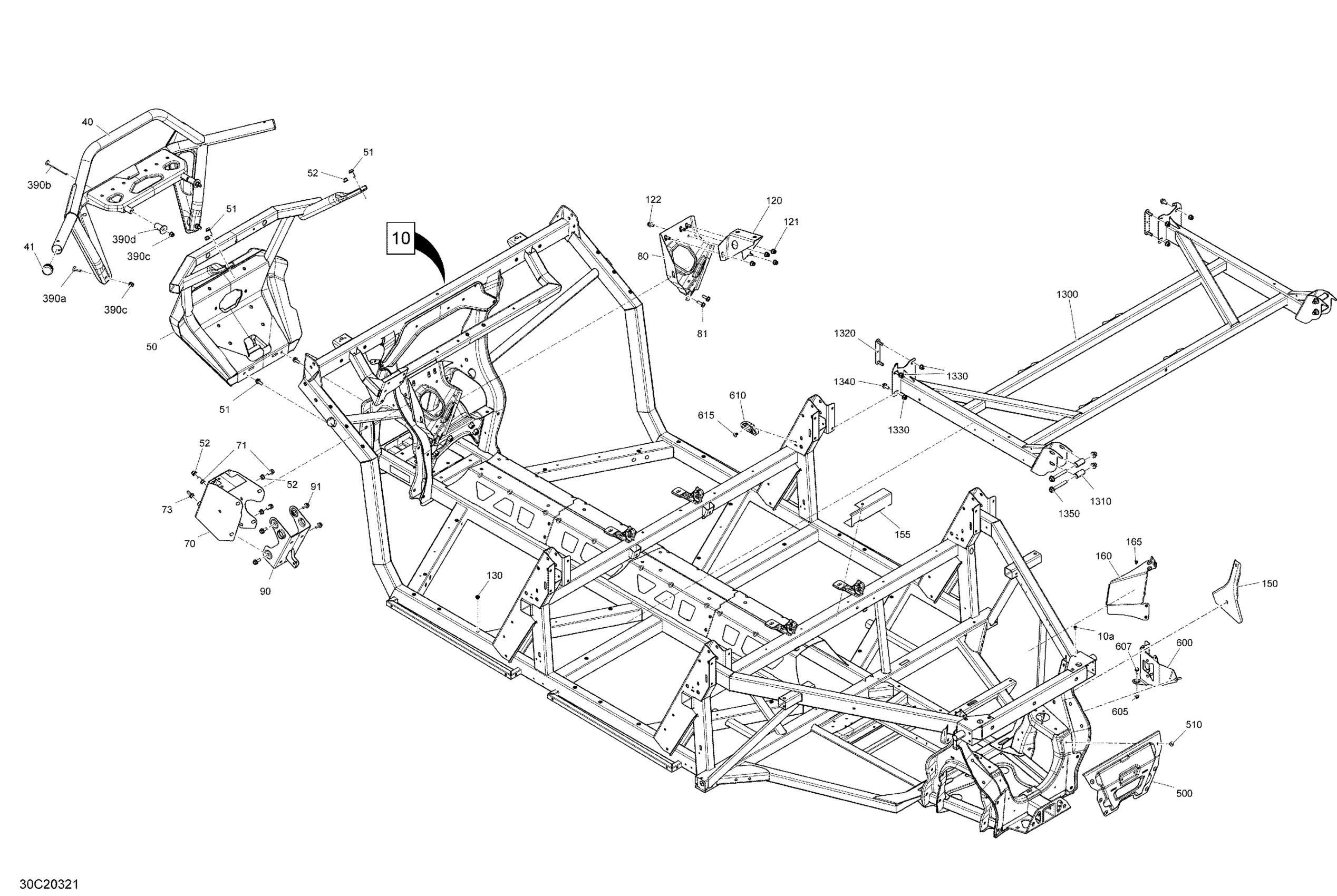

Can-Am Defender PRO HD10 - 2020 Frame - DPS - XT Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

Unavailable

10a

Pop Rivet 3/16"

390402200

$0.26

40

Deep Black, Front Bumper

715005754

$369.97

41

Cap

705202455

$4.62

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705208747

$52.28

71

Hex. Flange Screw M8 X 20

207682044

$0.92

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

$65.35

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

120

Support

705208742

$28.43

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.75

155

Heat Shield

705015496

$2.75

160

Heat Shield

707002717

$49.97

165

Pop Rivet 3/16"

293150103

$0.54

390a

Torx Screw M8 X 30

250000886

$1.74

390b

Torx Truss M/S M8 x X 100

250001106

$5.53

390c

Hex. Flange Elastic Nut M8

233281414

$1.14

390d

Spacer

705207754

$12.08

500

Rear Chassis Reinforcement

705207753

$31.51

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support | Base

710006644

$16.12

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.66

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1300

Central Chassis Extension

705207484

$124.99

1310

Spacer

705207818

$13.49

1320

Support

705208025

$13.18

1330

Hex. Elastic Flange Nut M8

233281416

$1.25

1340

Hex. Flange Screw M8 X 20

207682046

$1.82

1350

Hex. Flange Screw M10 X 70

207607046

$2.91
