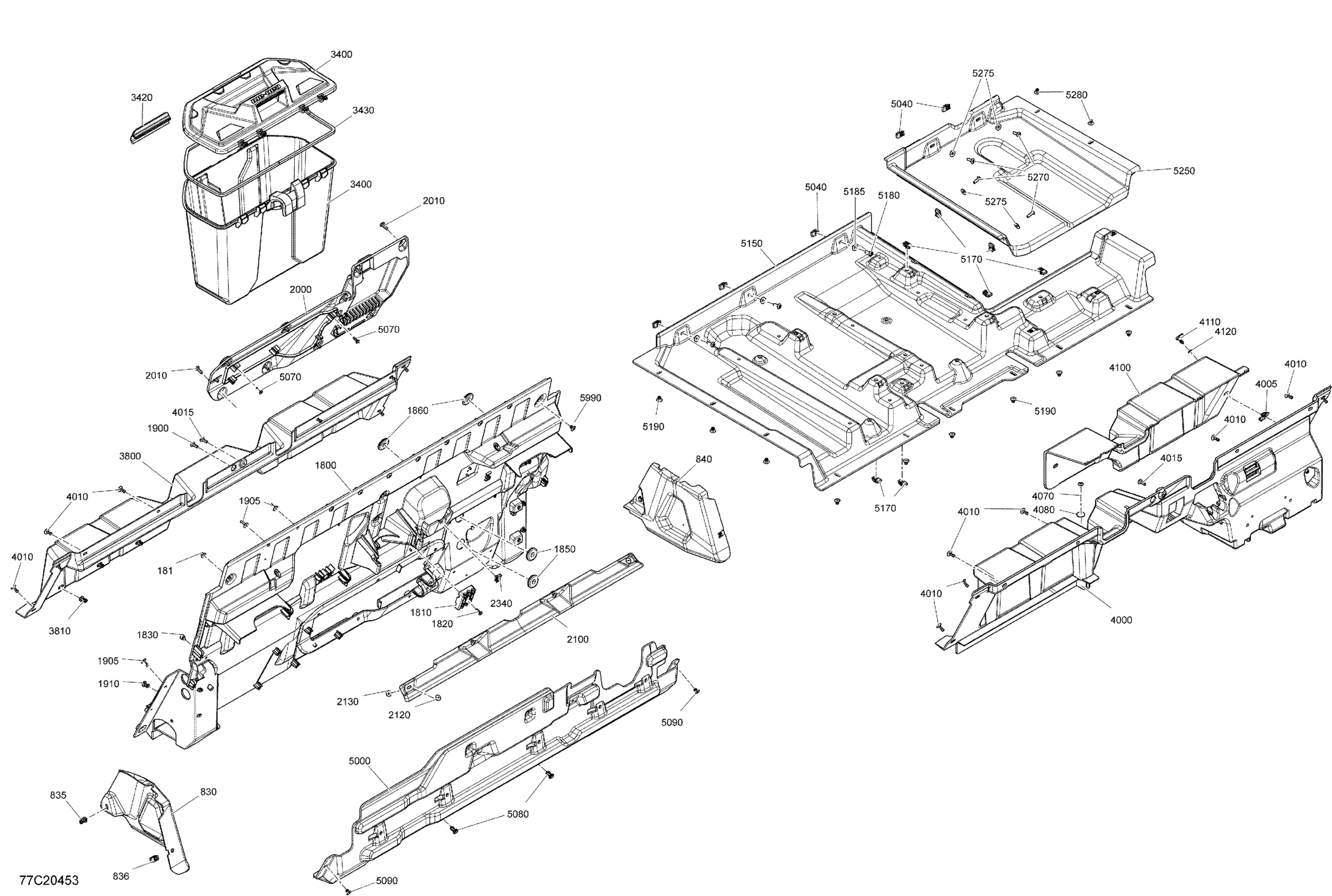

Can-Am Defender PRO HD10 - 2020 Cab Interior - Rear Wall And Box Diagram

#

Description
Price

181

Pop Rivet 3/16"

293150103

$0.54

830

LH Lower Cover

707900802

$78.43

835

Tuflok Plastic Rivet

293150230

$1.21

836

Panel Nut M6 X 1.0

250100198

$1.73

840

RH Lower Cover

707900803

$78.43

1800

Rear Upper Cab Panel

707900715

$396.89

1810

Hose Support

707900788

$0.86

1820

Torx Screw K50 X 16

250000720

$1.39

1830

Rubber Bumper

293830005

$5.33

1850

Grommet

293720119

$4.98

1860

Grommet

293720119

$4.98

1900

Torx Screw M6 X 20

250000722

$1.34

1905

Pop Rivet 3/16"

293150100

$1.08

1910

Tuflok Plastic Rivet

293150230

$1.21

2000

Rear Access Cover

707900742

$78.43

2010

Torx Screw M6 X 20

250000712

$1.74

2100

Rear Deflector

707900795

$83.05

2120

Pop Rivet 3/16"

293150100

$1.08

2130

Washer M5

250200025

$0.61

2340

Panel Nut M6 X 1.0

250100198

$1.73

3400

Storage Box

715003314

$109.24

3420

Clip | Outlander Max

269501945

$15.19

3430

Neoprene Seal

293250453

$14.92

3440

Rubber Bumper

293830005

$5.33

3800

Rear Panel

707900722

$193.82

3810

Tuflok Plastic Rivet

293150230

$1.21

4000

Rear Lower Cab Panel

707900718

$207.66

4005

Quarter Turn Nut

705002651

$3.84

4010

Pop Rivet 3/16"

293150100

$1.08

4015

Torx Screw M6 X 20

250000722

$1.34

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91

4100

Battery Cover

707900743

$87.66

4110

Quarter Turn Screw

705002649

$12.57

4120

Washer

708400286

$4.02

5000

Front Upper Box Panel

707900800

$207.66

5040

Panel Nut M6 X 1.0

250100198

$1.73

5070

Torx Screw K50 X 16

250000720

$1.39

5080

Tuflok Plastic Rivet

293150230

$1.21

5090

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

5150

LH Upper Box Panel

707901044

$203.05

5170

Panel Nut M6 X 1.0

250100198

$1.73

5180

Torx Screw M6 X 20

250000722

$1.34

5185

Stainless Steel Flat Washer

234062670

$1.74

5190

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

5250

RH Upper Box Panel

707900721

$207.66

5270

Torx Screw M6 X 20

250000722

$1.34

5275

Stainless Steel Flat Washer

234062670

$1.74

5280

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
