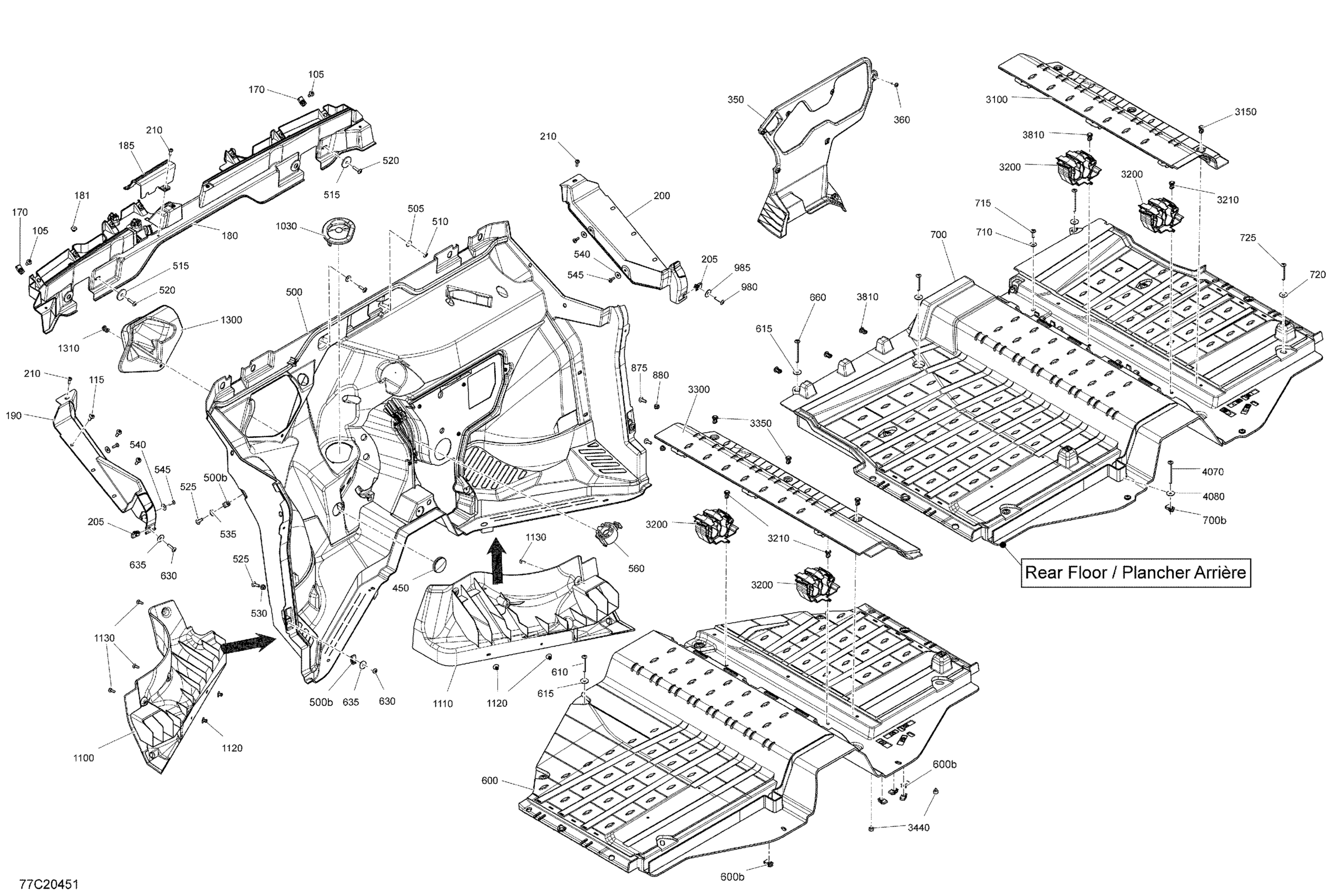

Can-Am Defender PRO HD10 - 2020 Cab Interior - Fire Wall And Floor Diagram

#

Description
Price

105

Torx Truss Screw M6 X 16

250000721

$1.39

115

Torx Screw M6 X 20

250000722

$1.34

170

Panel Nut M6 X 1.0

250100198

$1.73

180

Front Upper Deflector

707900755

$50.74

181

Pop Rivet 3/16"

293150103

$0.54

185

Front Upper Deflector

707900747

$10.98

190

LH Upper Deflector

707900738

$50.74

200

RH Upper Deflector

707900739

$50.74

205

Panel Nut M6 X 1.0

250100198

$1.73

210

Torx Screw K50 X 16

250000720

$1.39

350

Front Panel Trim

707900740

$21.49

360

Torx Screw K50 X 16

250000720

$1.39

450

Rubber Cover

293250242

$5.38

500

Front Cab Panel Ass'y | Includes 500 to 500b

707900981

$207.66

500b

Panel Nut M6 X 1.0

250100198

$1.73

505

Stainless Steel Flat Washer

234062670

$1.74

510

Torx Screw M6 X 20

250000722

$1.34

515

Flat Washer M8

250200158

$1.74

520

Torx Truss Screw M6 X 25

250000807

$1.74

525

Torx Screw M6 X 20

250000722

$1.34

530

Hex. Elastic Flange Nut M6

233161464

$0.83

535

Stainless Steel Flat Washer

234062670

$1.74

540

Stainless Steel Flat Washer

234062670

$1.74

545

Torx Screw K50 X 16

250000720

$1.39

560

Split Grommet

707900719

$4.05

600

Floor Ass'y | Includes 600 to 600b

707900431

$216.89

600b

Panel Nut M6 X 1.0

250100198

$1.73

610

Torx Truss M6 X 50

250000868

$1.74

615

Flat Washer M6.6 X 22

250200162

$1.91

630

Torx Truss Screw M6 X 25

250000807

$1.74

635

Flat Washer M6.6 X 22

250200162

$1.91

660

Torx Screw M6 X 70

250000954

$1.56

700

Rear Floor Ass'y | Includes 700 to 700b

707900464

$281.51

700b

Panel Nut M6 X 1.0

250100198

$1.73

710

Stainless Steel Flat Washer

234062670

$1.74

715

Torx Screw M6 X 20

250000722

$1.34

720

Flat Washer M6.6 X 22

250200162

$1.91

725

Torx Truss M6 X 50

250000868

$1.74

875

Torx Screw M6 X 20

250000722

$1.34

880

Hex. Elastic Flange Nut M6

233161464

$0.83

980

Torx Truss Screw M6 X 25

250000807

$1.74

985

Flat Washer M6.6 X 22

250200162

$1.91

1030

Sterring Column Trim

707900851

$5.52

1100

LH Front Deflector

707900750

$50.74

1110

RH Front Deflector

707900751

$50.74

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1130

Torx Screw K50 X 16

250000720

$1.39

1300

Exterior Cover

707900389

$11.54

1310

Tuflok Plastic Rivet

293150230

$1.21

3100

Floor Panel

707900806

$41.51

3150

Tuflok Plastic Rivet

293150230

$1.21

3200

Hose Support

707900325

$11.54

3210

Tuflok Plastic Rivet

293150230

$1.21

3300

Floor Panel

707900878

$36.12

3350

Tuflok Plastic Rivet

293150230

$1.21

3440

Rubber Bumper

293830005

$5.33

3810

Tuflok Plastic Rivet

293150230

$1.21

4070

Torx Screw M6 X 70

250000954

$1.56

4080

Flat Washer M6.6 X 22

250200162

$1.91
