Description

Price

10

Bright White, LH Front Fender

705014067

$189.97

10

Break Up Country, LH Front Fender | Camo Model

705017041

$189.97

20

Bright White, RH Front Fender

705014068

$189.97

20

Break Up Country, RH Front Fender | Camo Model

705017040

$189.97

100

Multi Purpose Support

705013766

$40.74

105

Torx Screw M6 X 20

250000722

$1.34

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.75

160

Bright White, Front Hood

705014065

$130.74

160

Break Up Country, Front Hood

705013726

$476.89

320

Grille

705013590

$24.58

330

Clip

517306478

$1.37

395

Screw M4 X 16

250000725

$2.87

400

Deep Black, Front Fascia

705013591

$213.05

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.11

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$11.15

455

RH Front Reflector

704905073

$11.15

520

Panel Nut M6 X 1.0

250100198

$1.73

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

941

Black, Nylon Cap

414916600

$4.32

1000

Deep Black, LH Central Panel

705019037

$69.20

1020

Deep Black, RH Central Panel

705019038

$73.82

1030

Pop Rivet 3/16”

293150108

$1.23

1100

LH Middle Side Panel

705014750

$106.12

1200

RH Middle Side Panel

705014751

$106.12

1215

Tuflok Plastic Rivet

293150230

$1.21

1220

Torx Truss Screw M6 X 25

250000807

$1.74

1222

Flat Washer M6.6 X 22

250200162

$1.91

2020

Central Skid Plate

705009151

$55.35

2030

Connection Plate

705010884

$29.20

2040

Rear Skid Panel

705017205

$147.66

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2070

Rear Central Skid Plate

705010588

$59.97

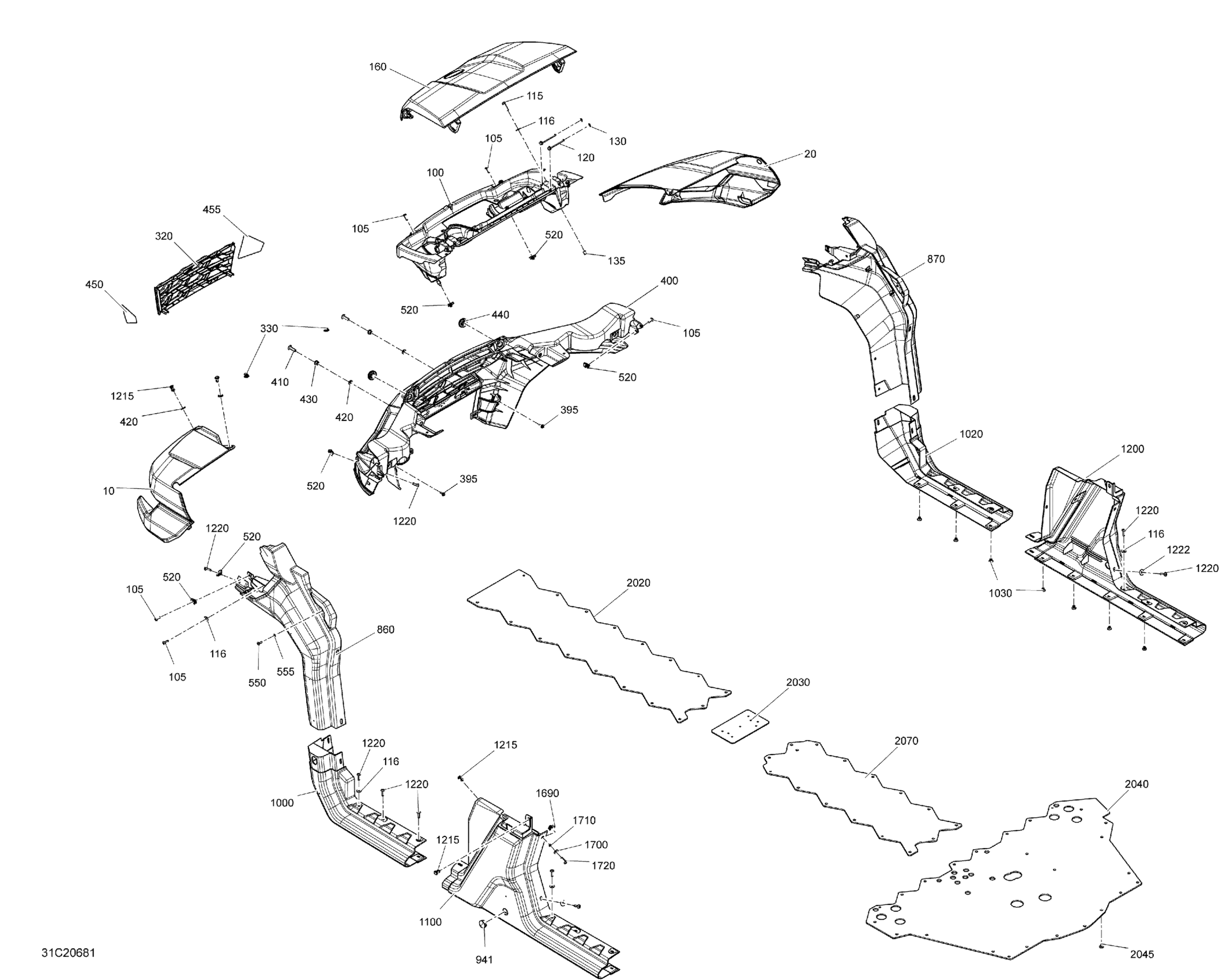

Can-Am Defender PRO HD10 - 2020 Body - DPS Diagram

Bright White, LH Front Fender

Break Up Country, LH Front Fender | Camo Model

Bright White, RH Front Fender

Break Up Country, RH Front Fender | Camo Model

Multi Purpose Support

Torx Screw M6 X 20

Hex. Flange Screw M6 X 30 | International

Stainless Steel Flat Washer

Hex. Flange Screw M6 X 75

Push Nut

Bushing

Bright White, Front Hood

Break Up Country, Front Hood

Grille

Clip

Screw M4 X 16

Deep Black, Front Fascia

Torx Screw M8 X 30

Washer

Hex. Flange Elastic Nut M8

Grommet

LH Front Reflector

RH Front Reflector

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Flat Washer M5

LH Front Lateral Panel

RH Front Lateral Panel

Black, Nylon Cap

Deep Black, LH Central Panel

Deep Black, RH Central Panel

Pop Rivet 3/16”

LH Middle Side Panel

RH Middle Side Panel

Tuflok Plastic Rivet

Torx Truss Screw M6 X 25

Flat Washer M6.6 X 22

Central Skid Plate

Connection Plate

Rear Skid Panel

Pop Rivet 3/16" | DS 650 X

Rear Central Skid Plate
