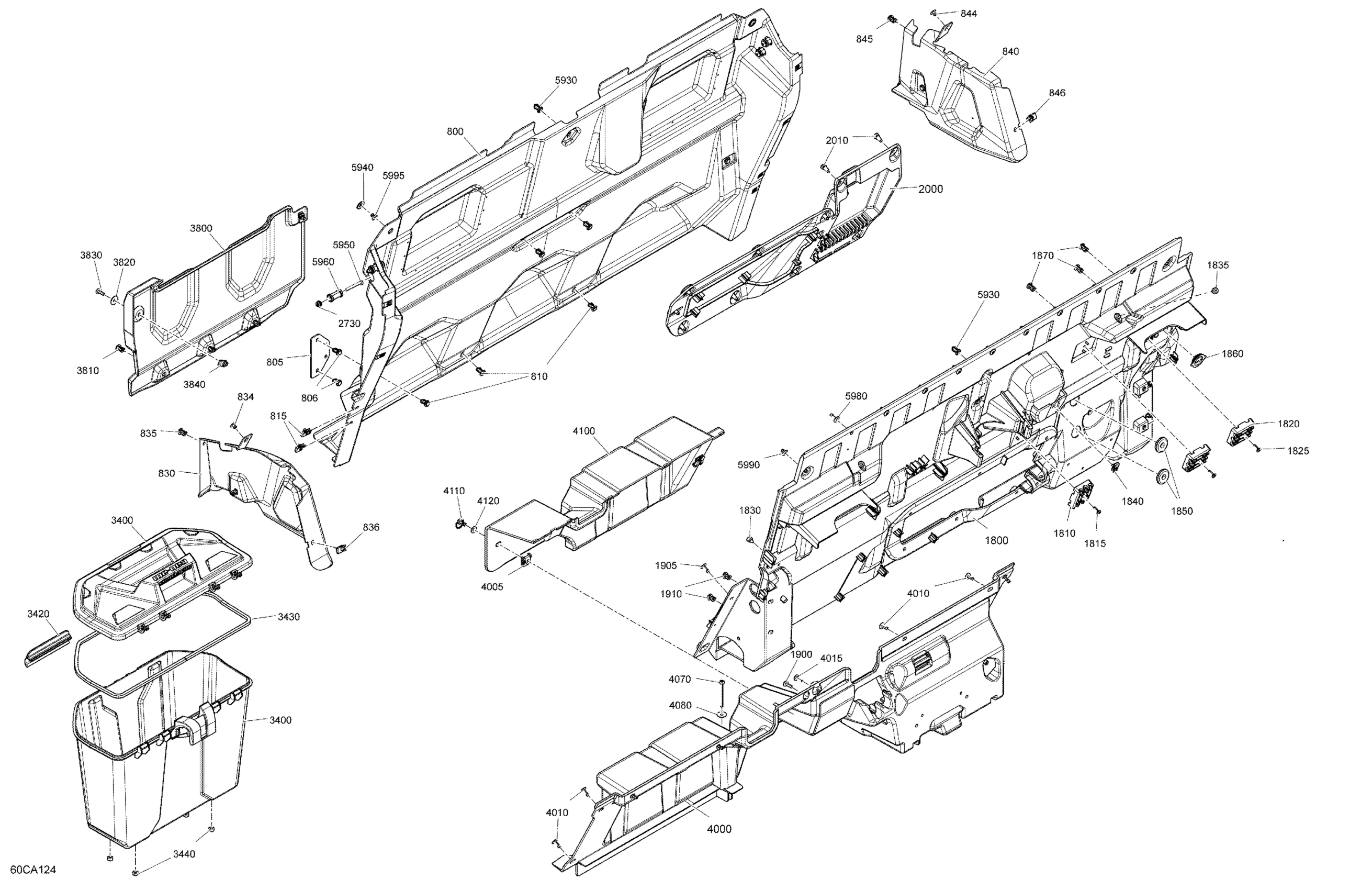

Can-Am Defender MAX HD10 - XMR - 2021 Cab Interior - Back Wall Diagram

#

Description
Price

800

Median Deflector Kit

715007481

$309.99

805

Plate

707900469

$30.99

806

Tuflok Plastic Rivet

293150230

$1.47

810

Tuflok Plastic Rivet

293150230

$1.47

815

Panel Nut M6 X 1.0

250100198

$2.11

830

LH Lower Panel

707900994

$82.99

834

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

835

Tuflok Plastic Rivet

293150230

$1.47

836

Panel Nut M6 X 1.0

250100198

$2.11

840

RH Lower Cover

707900444

$84.99

844

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

845

Tuflok Plastic Rivet

293150230

$1.47

846

Panel Nut M6 X 1.0

250100198

$2.11

1800

Rear Upper Cab Panel

707900715

$429.99

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1820

Hose Support

707900788

$0.92

1825

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1835

Rubber Bumper

293830005

$8.09

1840

Panel Nut M6 X 1.0

250100198

$2.11

1850

Grommet

293720119

$4.19

1860

Plug

293000125

$1.15

1870

Tuflok Plastic Rivet

293150230

$1.47

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Pop Rivet 3/16"

293150100

$1.09

1910

Tuflok Plastic Rivet

293150230

$1.47

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2730

Insert Half Hex Body M6 x 1.0

250100199

$3.19

3400

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

3800

Rear Panel

707900996

$98.99

3810

Tuflok Plastic Rivet

293150230

$1.47

3820

Flat Washer M6.6 X 22

250200162

$2.32

3830

Torx Screw M6 X 20

250000722

$1.68

3840

Panel Nut M6 X 1.0

250100198

$2.11

4000

Rear Lower Cab Panel

707901074

$219.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Pop Rivet 3/16"

293150100

$1.09

4015

Torx Screw M6 X 20

250000722

$1.68

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5930

Tuflok Plastic Rivet

293150230

$1.47

5940

Flat Washer 8 mm, Nylon

292001663

$1.47

5950

Torx Truss M6 X 50

250000868

$2.11

5960

Spacer

707900470

$2.79

5980

Pop Rivet 3/16"

293150100

$1.09

5990

Pop Rivet 3/16"

293150103

$0.55

5995

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
