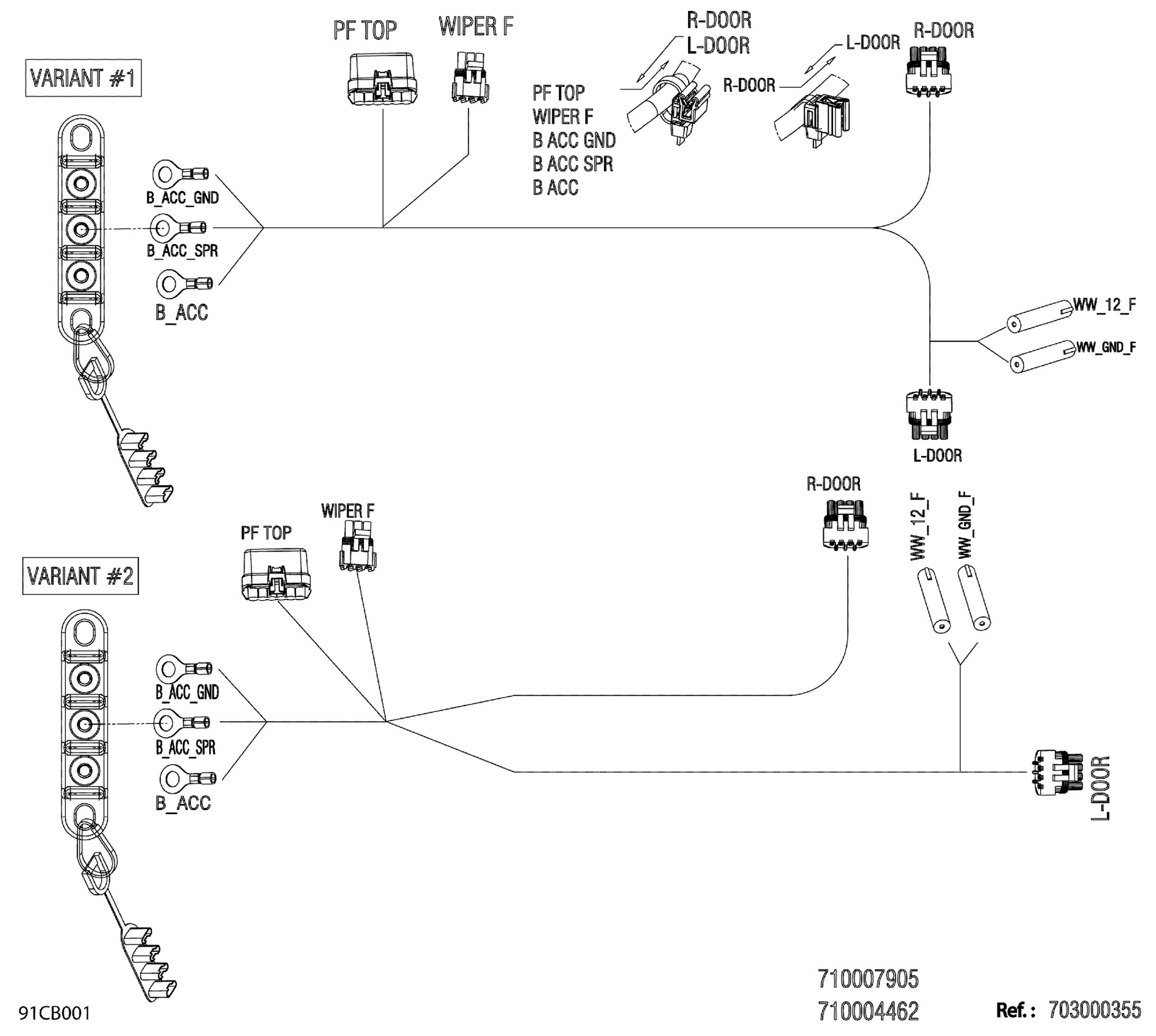

Can-Am 011 - Defender MAX HD10 - Lone Star CAB (6LNA) - North America, 2022 08- Electric - Roof Harness - 710007905 Diagram

Description

Price

360

Roof Harness

710007905

$63.99

B_ACC.

Open Barrel Terminal

278001392

$4.79

B_ACC_GND.

Open Barrel

278000992

$2.21

B_ACC_SPR.

Open Barrel

278000992

$2.21

JB-2

Junction Block Cover

710006610

$20.99

JB-2

3-Positions Pole

710004825

$19.09

JB-2

Elastic Stop Nut M6, Brass

232561200

$4.23

L DOOR.

Male Housing, 4 Circuits

278000395

$15.99

L DOOR.

Wire Seal

278000218

$4.39

L DOOR.

Female Terminal

409007300

$0.45

PF_TOP.

Clip

710000992

$4.29

PF_TOP.

Cover

710000897

$16.49

PF_TOP.

Housing, 6 Circuits

710000888

$17.04

PF_TOP.

Lock

710000889

$4.39

PF_TOP.

Wire Seal

278000218

$4.39

PF_TOP.

Wire Seal

278001065

$7.69

PF_TOP.

Female Terminal

710000918

$7.69

PF_TOP_F1

Little Fuse, 20 Amperes

710000746

$8.49

PF_TOP_F2

Little Fuse, 30 Amperes

710000747

$8.49

PF_TOP_F3

Little Fuse, 20 Amperes

710000746

$8.49

R DOOR.

Male Housing, 4 Circuits

278000395

$15.99

R DOOR.

Wire Seal

278000218

$4.39

R DOOR.

Female Terminal

409007300

$0.45

WIPER_F.

Male Housing, 3 Circuits

278000273

$9.59

WIPER_F.

Wire Seal

278001065

$7.69

WIPER_F.

Female Terminal

278000223

$3.19

WW_12V_F.

Insulated Sheath

278001007

$3.58

WW_12V_F.

Female Terminal

710000421

$6.11

WW_GND_F.

Insulated Sheath

278001007

$3.58

WW_GND_F.

Female Terminal

710000421

$6.11
