Description

Price

400

RH Console

517306759

$33.82

410

Torx Truss M5 X 20

250000586

$3.61

420

Panel Nut M5 X 0.8

250000958

$3.48

430

Rope Guide

517306315

$5.59

440

Hex. Flange Screw M6 X 12

210261250

$1.56

1000a

Deep Black - RH Panel | Includes 1000a to 1000a.a

517307218

$203.05

1000b

Panel Grid

517306591

$55.35

1000c

Screw M4 X 16

250000725

$2.87

1000d

Molded J Clamp

517306849

$44.58

1000e

Stopper

517307192

$16.12

1000f

RH Rear Latch

517305773

$14.22

1000g

RH Front Latch

517305979

$13.88

1000h

Screw M4 X 16

250000725

$2.87

1000j

RH Hook

517306311

$10.82

1000k

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000m

Washer

517124300

$0.16

1060

Foam

517306851

$28.43

1070

RH Rear Panel Foam

517306586

$10.46

1080

Rubber Sheet

517306262

$26.89

1090

RH Rear Panel Foam

517306480

$8.55

1100a

RH Panel Grid

517307140

$27.66

1100b

Heat Shield

517307618

$2.05

1100c

Heat Shield

517307619

$2.05

1110

Screw M4 X 16

250000725

$2.87

1200a

Deep Black, LH Panel

517307324

$226.12

1200b

LH Rear Latch

517305774

$14.22

1200c

LH Front Latch

517305980

$14.22

1200d

Screw M4 X 16

250000725

$2.87

1200e

LH Hook

517306312

$10.82

1200f

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1200g

Washer

517124300

$0.16

1250

LH Front Panel Foam

517305769

$16.89

1260

Foam

517307029

$15.17

1280

LH Rear Panel Foam

517306479

$8.55

1281

LH Grille

517306937

$14.68

1283

Duct

517307283

$15.35

1284

Screw M4 X 16

250000725

$2.87

1286

Duct Foam

517306960

$13.63

1287

Foam

517307639

$5.49

1290

Foam

517306594

$10.12

1300

Rear Stud

517305985

$15.00

1310

Front Stud

517305988

$15.35

1320

Screw M4 X 16

250000725

$2.87

1400

RH Lower Latch

517306309

$16.12

1410

Torx Screw M5 X 25

250000762

$1.74

1420

Washer

517124300

$0.16

1430

Hex. Flange Nut M5

233151414

$0.46

1500

LH Lower Latch

517306310

$16.12

1510

Torx Screw M5 X 25

250000762

$1.74

1520

Washer

517124300

$0.16

1530

Hex. Flange Nut M5

233151414

$0.46

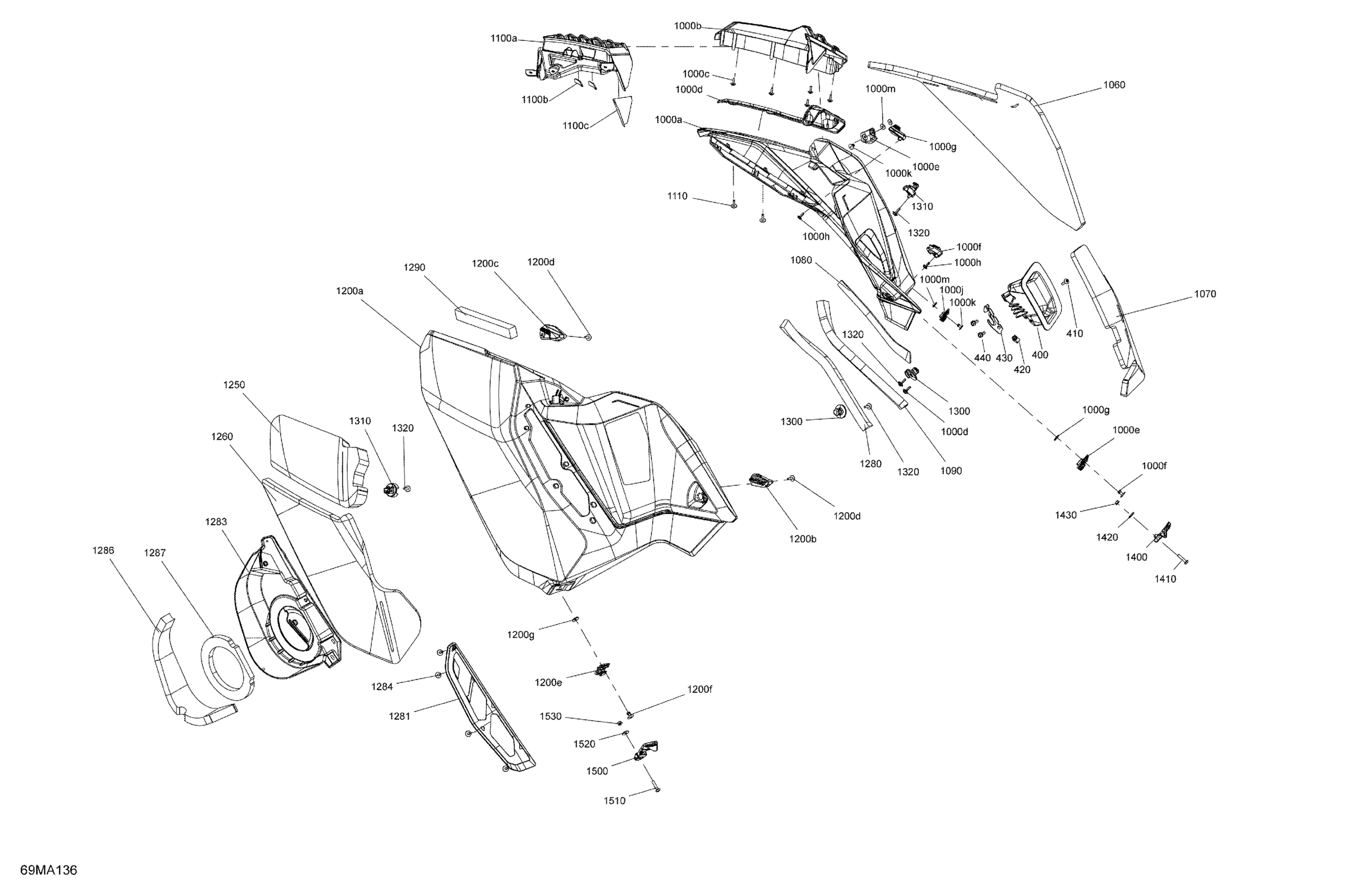

Ski-Doo SUMMIT 850 E-TEC Turbo - X - 2021 Body - Side Panels Diagram

RH Console

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Rope Guide

Hex. Flange Screw M6 X 12

Deep Black - RH Panel | Includes 1000a to 1000a.a

Panel Grid

Screw M4 X 16

Molded J Clamp

Stopper

RH Rear Latch

RH Front Latch

Screw M4 X 16

RH Hook

Pop Rivet 3/16" | DS 650 X

Washer

Foam

RH Rear Panel Foam

Rubber Sheet

RH Rear Panel Foam

RH Panel Grid

Heat Shield

Heat Shield

Screw M4 X 16

Deep Black, LH Panel

LH Rear Latch

LH Front Latch

Screw M4 X 16

LH Hook

Pop Rivet 3/16" | DS 650 X

Washer

LH Front Panel Foam

Foam

LH Rear Panel Foam

LH Grille

Duct

Screw M4 X 16

Duct Foam

Foam

Foam

Rear Stud

Front Stud

Screw M4 X 16

RH Lower Latch

Torx Screw M5 X 25

Washer

Hex. Flange Nut M5

LH Lower Latch

Torx Screw M5 X 25

Washer

Hex. Flange Nut M5
