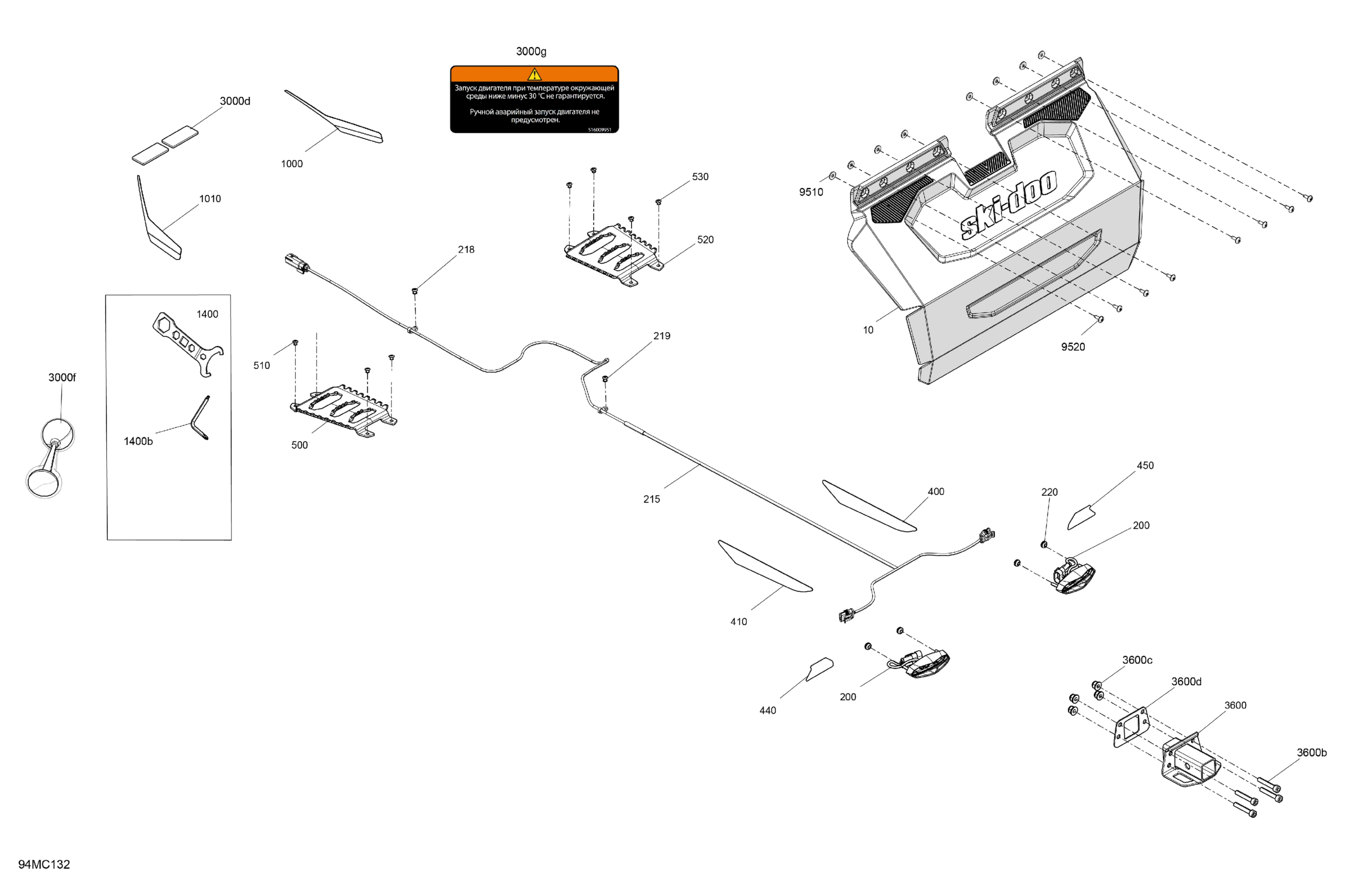

Ski-Doo 010 - SKANDIC LE 900 ACE - 24 INCH - (ANPH) - North America, 2023 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Guard 24"

520001736

$106.99

200

Tail Light

520002636

$105.99

215

Taillight Wiring Harness

515178634

$58.99

218

Pop Rivet 3/16"

390402200

$0.35

219

Pop Rivet 3/16"

390402200

$0.35

220

Grommet

293720101

$0.77

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

500

Deep Black, Passenger Footrest

520002896

$48.99

510

Rivet 3/16"

293150102

$0.70

520

Deep Black, Passenger Footrest

520002896

$48.99

530

Rivet 3/16"

293150102

$0.70

1000

RH Front Reflector

520002444

$9.19

1010

LH Front Reflector

520002443

$9.19

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

3600

Trailer Hitch Kit | Includes 3600 to 3600d

860202062

$48.99

3600b

Socket Head Screw M8 x 45

250001086

$13.16

3600c

Elastic Flange Nut M8

233281466

$1.01

3600d

Rear Chassis Reinforcement

511001377

$4.59

9510

Washer M5

250200025

$0.74

9520

Forming Screw M5 x 16

250000676

$1.01
