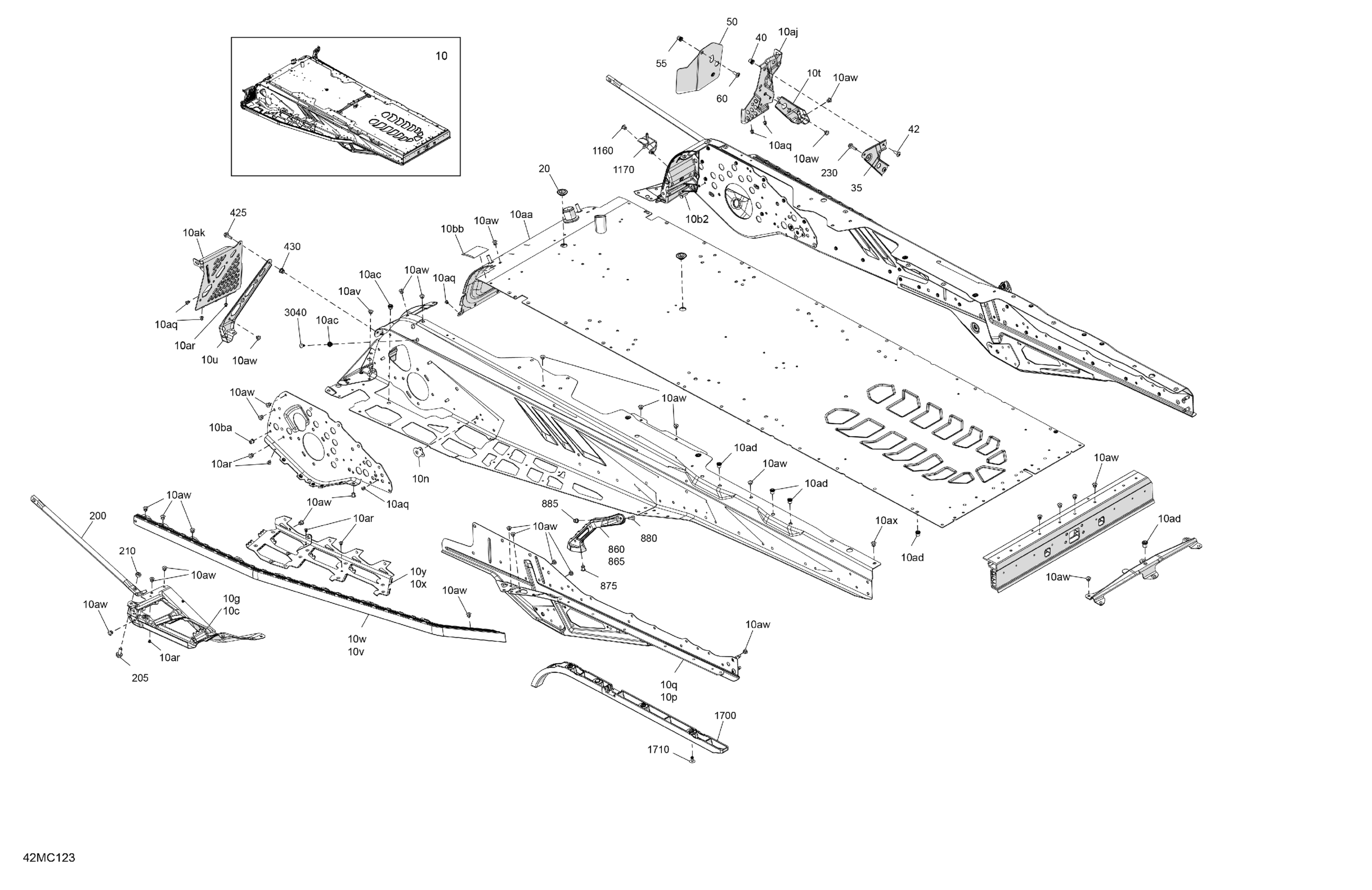

Ski-Doo SKANDIC LE 900 ACE - 24 INCH - (ANPH) - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10bb

518334283

$3,069.20

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10n

Front Suspension Arm Reinforcement

518335959

$3.85

10p

RH Rear Suspension Support

518333792

$102.28

10q

LH Rear Suspension Support

518333791

$102.28

10t

RH Footrest Reinforcement

518329789

$18.43

10u

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10v

RH Roller

518329648

$180.74

10w

LH Roller

518328452

$180.74

10x

RH Tunnel Liner

518329646

$33.05

10y

LH Tunnel Liner

518329647

$33.05

10aa

Radiator Tunnel 154

518335121

$609.20

10ac

Clinch Nut M6 Hexsert

605636003

$4.12

10ad

Insert

293450275

$9.89

10aj

RH Footrest

518331822

$23.05

10ak

LH Footrest

518332977

$42.28

10aq

Avex Rivet

390909100

$0.29

10ar

Avex Rivet

390909200

$0.29

10av

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10aw

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ax

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10ba

Collar Huck Magna-Grip 6.4

293150149

$0.37

10bb

Aluminum foil

44110

Unavailable

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

200

Lateral Reinforcement

518332541

$18.43

205

Hex. Flange Screw M8 X 20

207682044

$0.92

210

Hex. Nut M8

232081414

$0.60

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

1160

Rivet Ornit 6,5 X 12.5

293150265

$1.94

1170

Muffler Support Ass'y

518334031

$19.97

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
