Description

Price

10

LH Rear Storage Box

708303975

$88.99

11

Insert

291003793

$3.56

12

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

13

Torx Screw K50 X 16

250000720

$1.69

14

Hex. Flange Screw M6 X 16

210261650

$1.67

15

Stainless Steel Flat Washer

234062670

$2.11

17

Stainless Steel Flat Washer

234062670

$2.11

20

RH Rear Storage Box

708303976

$92.99

21

Insert

291003793

$3.56

22

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

23

Torx Screw K50 X 16

250000720

$1.69

24

Hex. Flange Screw M6 X 16

210261650

$1.67

25

Stainless Steel Flat Washer

234062670

$2.11

26

Stainless Steel Flat Washer M5

234052670

$1.01

27

Stainless Steel Flat Washer

234062670

$2.11

40

Ball Head Stud

250300016

$14.81

50

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Flat Washer M5

234051670

$2.11

170

RH Latch Lid Ass'y

708304019

$154.99

175

LH Control

708301222

$43.99

176

Panel Nut M6 X 1.0

250100208

$1.46

177

Torx Screw M6 X 20

250000722

$1.68

178

LH Control Protector

708304012

$10.06

179

Dart

293730079

$2.09

180

LH Latch Lid Ass'y

708304020

$154.99

185

RH Control

708301697

$43.99

186

Panel Nut M6 X 1.0

250100208

$1.46

187

Torx Screw M6 X 20

250000722

$1.68

188

RH Control Protector

708304013

$10.06

189

Dart

293730079

$2.09

200

Torx Head Screw M6 X 16

250000717

$2.11

240

Hinge

708300006

$25.99

250

Torx Truss Screw M6 X 12

250000767

$2.00

260

Back Plate Support

708300129

$11.49

300

Shock Absorber

708303322

$79.99

360

Gasket

708304139

$13.75

370

Gasket

708304139

$13.75

410

Hyper Silver, LH Rear Box Cover

708304085

$459.99

415

LH Rear Box Trim

708303002

$129.99

417

Edge Clip

517302785

$0.88

425

LH interior Box Cover

708303977

$82.99

426

Striker Cover

708303255

$6.89

427

Hex. Forming Screw M5 X 16

210251650

$1.15

428

Amber Reflector

705015552

$9.19

429

Edge Clip

517302785

$0.88

430

Torx Truss PT K40 x 12

250001131

$2.11

431

Panel Nut M6 X 1.0

250100208

$1.46

432

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

440

Hyper Silver, RH Rear Box Cover

708304092

$459.99

445

RH Rear Trim Box

708303003

$129.99

447

Edge Clip

517302785

$0.88

455

RH interior Box Cover

708304208

$82.99

456

Striker Cover

708303255

$6.89

457

Hex. Forming Screw M5 X 16

210251650

$1.15

458

Amber Reflector

705015552

$9.19

459

Edge Clip

517302785

$0.88

460

Torx Truss PT K40 x 12

250001131

$2.11

461

Panel Nut M6 X 1.0

250100208

$1.46

462

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

470

Ball Joint

250300064

$13.49

580

LH Rear Heated Holding Handle

708304248

$163.99

590

RH Rear Heated Holding Handle

708304249

$174.99

591

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

592

Flat Washer 8 mm

234082410

$1.47

600

LH Over Fairing

708304077

$94.99

603

LH Lever Trim

708303323

$5.39

604

Torx Screw K50 X 25

250001110

$1.99

605

LH Front Armrest Trim

708303393

$5.69

606

LH Rear Arm Rest Trim

708303749

$5.69

607

Torx-Truss Pt K40 X 16

250000759

$2.11

608

Plastite Screw M4 X 10

250000805

$2.11

610

RH Over Fairing

708304078

$94.99

613

RH Lever Trim

708303324

$5.99

614

Torx Screw K50 X 25

250001110

$1.99

615

RH Front Armrest Trim

708303394

$5.69

616

RH Rear Arm Rest Trim

708303750

$5.69

617

Torx-Truss Pt K40 X 16

250000759

$2.11

618

Plastite Screw M4 X 10

250000805

$2.11

1000

Retainer Cable

708300385

$38.99

1010

Torx Head Screw M6 X 16

250000717

$2.11

1020

Flat Washer, Stainless/Neoprene

211200055

$0.73

1030

Hex. Nut M6

232061414

$0.53

1050

Heat Shield

705016874

$47.99

1150

LH Access Cover

708303754

$16.99

1151

Torx Screw K50 X 16

250000720

$1.69

1160

RH Access Cover

708303755

$17.49

1161

Torx Screw K50 X 16

250000720

$1.69

8020

Hex. Flange Elastic Nut M6

233261494

$1.58

8021

Hex. Flange Screw M6 X 25

207662554

$1.48

8022

Stainless Steel Flat Washer

234062670

$2.11

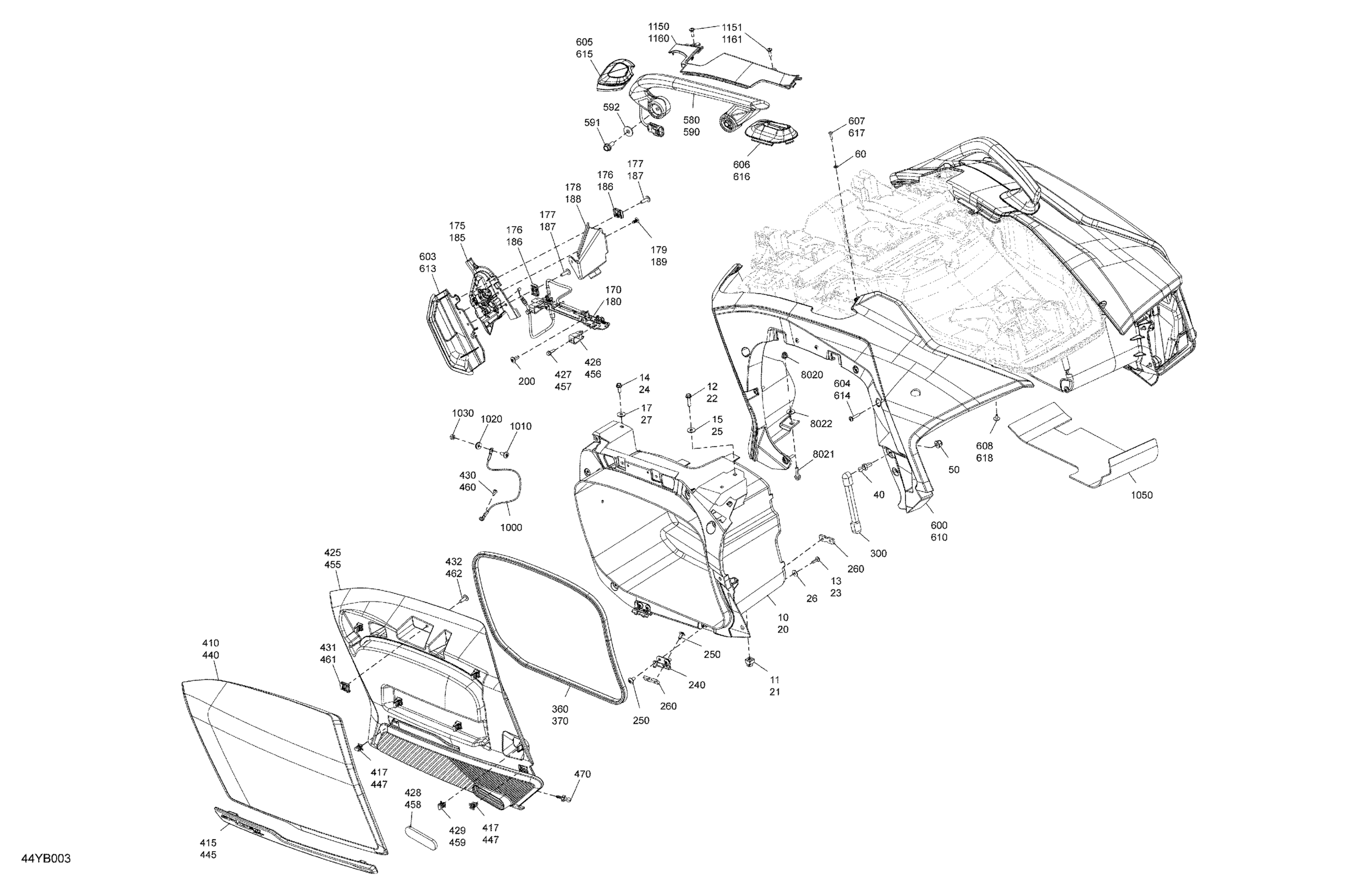

Can-Am RT LIMITED - Dark Edition - Carbon Black, Europe, 2022 Body - Side Cargo Diagram

LH Rear Storage Box

Insert

Hex. Flange Screw M6.81 X 25, Plastite

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

Stainless Steel Flat Washer

RH Rear Storage Box

Insert

Hex. Flange Screw M6.81 X 25, Plastite

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

Stainless Steel Flat Washer M5

Stainless Steel Flat Washer

Ball Head Stud

Hex. Flange Elastic Nut M8

Flat Washer M5

RH Latch Lid Ass'y

LH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

LH Control Protector

Dart

LH Latch Lid Ass'y

RH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

RH Control Protector

Dart

Torx Head Screw M6 X 16

Hinge

Torx Truss Screw M6 X 12

Back Plate Support

Shock Absorber

Gasket

Gasket

Hyper Silver, LH Rear Box Cover

LH Rear Box Trim

Edge Clip

LH interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Screw M6 X 1.0 X 18, Scotch Grip

Hyper Silver, RH Rear Box Cover

RH Rear Trim Box

Edge Clip

RH interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Screw M6 X 1.0 X 18, Scotch Grip

Ball Joint

LH Rear Heated Holding Handle

RH Rear Heated Holding Handle

Hex. Flange Screw M8 X 20, Scotch Grip

Flat Washer 8 mm

LH Over Fairing

LH Lever Trim

Torx Screw K50 X 25

LH Front Armrest Trim

LH Rear Arm Rest Trim

Torx-Truss Pt K40 X 16

Plastite Screw M4 X 10

RH Over Fairing

RH Lever Trim

Torx Screw K50 X 25

RH Front Armrest Trim

RH Rear Arm Rest Trim

Torx-Truss Pt K40 X 16

Plastite Screw M4 X 10

Retainer Cable
