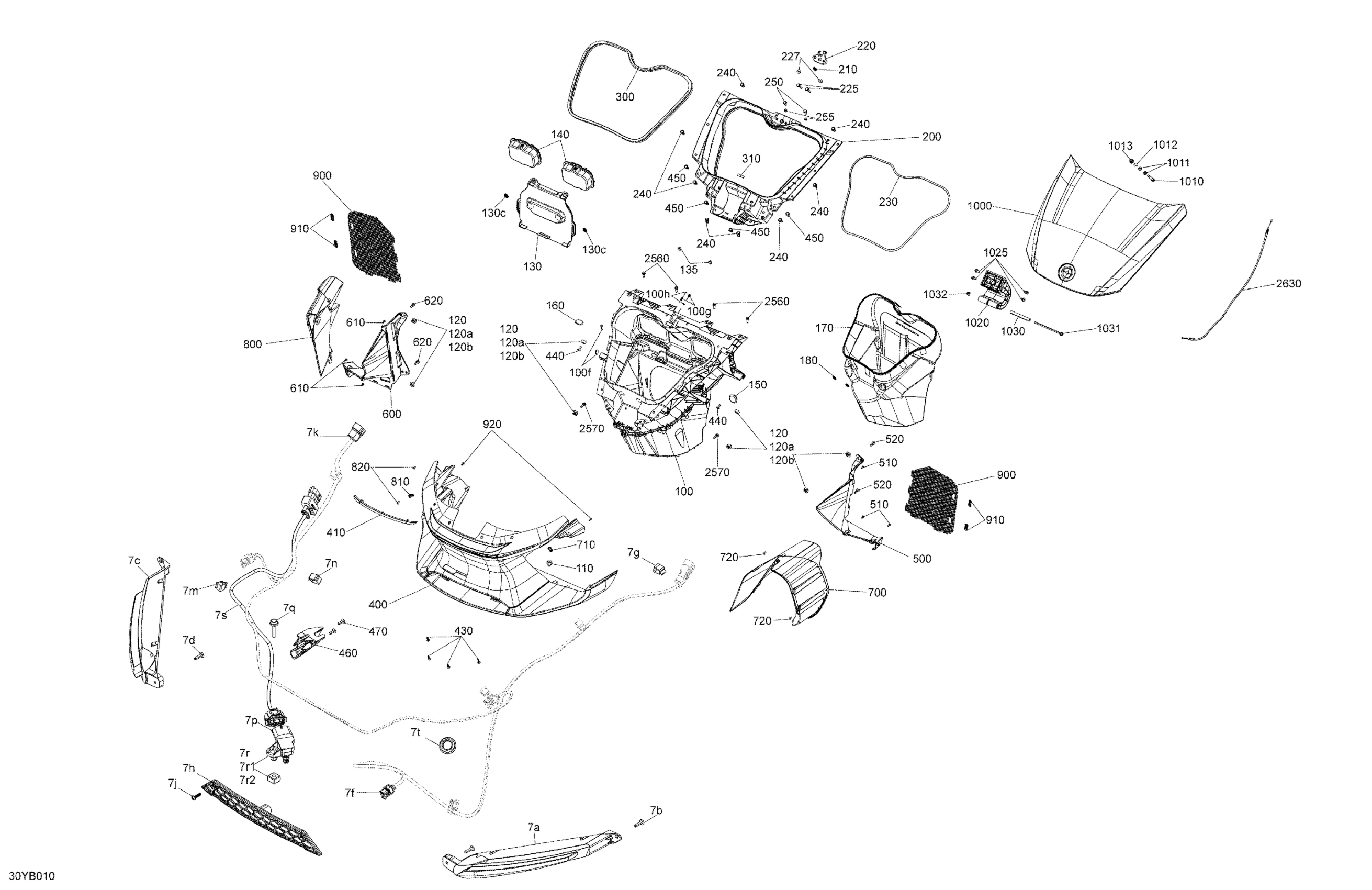

Can-Am RT LIMITED - Dark Edition - Carbon Black, Europe, 2022 Body - Front Storage Tray Diagram

LH Bumper Trim

708200959

$22.49

Torx-Truss Pt K40 X 16

250000759

$2.11

RH Bumper Trim

708200960

$24.49

Torx-Truss Pt K40 X 16

250000759

$2.11

Connector Plug

710004901

$13.22

Clip

414227300

$1.67

Lighting Harness Connector Cap

708400406

$5.45

Hex. Flange Screw K40 X 16

250001123

$2.11

Connector Plug

710004901

$13.22

Clip

414227300

$1.67

Clip

414227300

$1.67

Pressure And Temperature Sensor

707000995

$88.99

Hex. Flange Screw M6 X 25

207662554

$1.48

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Hex. Elastic Stop Nut M6

232561600

$1.15

AAPTS Harness

710004764

$17.49

Cap

705003464

$11.99

Storage Box Ass'y | Includes 100 to 100j

705012290

$489.99

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Rivet

390401400

$0.53

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

Rubber Bumper

293830005

$8.09

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Hex. Elastic Stop Nut M6

232561600

$1.15

Battery Cover Ass'y | Includes 130 to 130c

705018040

$29.99

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Torx Truss Screw M6 X 12

250000767

$2.00

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

Rubber Plug

710002858

$2.85

Cap

708400166

$3.89

Soft Box Liner

708304274

$119.99

Dual Lock Velcro Washer 3/4"

293740028

$4.19

Deep Black, Upper Box Support

708201071

$55.99

Spring

705003911

$3.99

Latch

705007379

$28.99

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Neoprene Seal 1420MM

293250529

$11.49

Tuflok Plastic Rivet

293150230

$1.47

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Stop Nut M6

232561434

$1.99

Gasket 4100Mm Long

219704387

$78.99

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

Deep Black, Front Bumper

708201076

$248.99

Upper Bumper Trim

708201124

$22.49

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Torx Screw M6 X 16

250000755

$0.87

Tuflok Plastic Rivet

293150230

$1.47

Sensor Support

708201084

$11.49

Torx Truss PT K40 x 12

250001131

$2.11

Deep Black, LH Inner Air Scoop

708200879

$85.99

Torx Truss PT K40 x 12

250001131

$2.11

Torx Screw M6 X 20

250000712

$2.11

Deep Black, RH Inner Air Scoop

708200880

$85.99

Torx Truss PT K40 x 12

250001131

$2.11

Torx Screw M6 X 20

250000712

$2.11

Deep Black, LH Exterior Scoop

708201086

$85.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss PT K40 x 12

250001131

$2.11

Deep Black, RH Exterior Scoop

708201087

$85.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss PT K40 x 12

250001131

$2.11

Black Epoxy, Air Scoop Grille | Includes 900 to 900b

708200970

$53.99

Flat Clip

705004838

$7.73

Torx Truss PT K40 x 12

250001131

$2.11

Hyper Silver, Front Hood | Includes 1000 to 1000a

708201142

$389.99

Lug

705002223

$25.99

Hex. Jam Nut M8

232180600

$0.67

Flat Washer 8 mm

234081410

$0.83

Elastic Flange Nut M8

233281464

$1.01

Black, Hood Hinge | Includes 1020 to 1020a

708200886

$56.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Spacer

705003322

$27.99

Hex. Flange Screw M6 X 130

230663084

$3.38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hood Cable

517305742

$42.99
