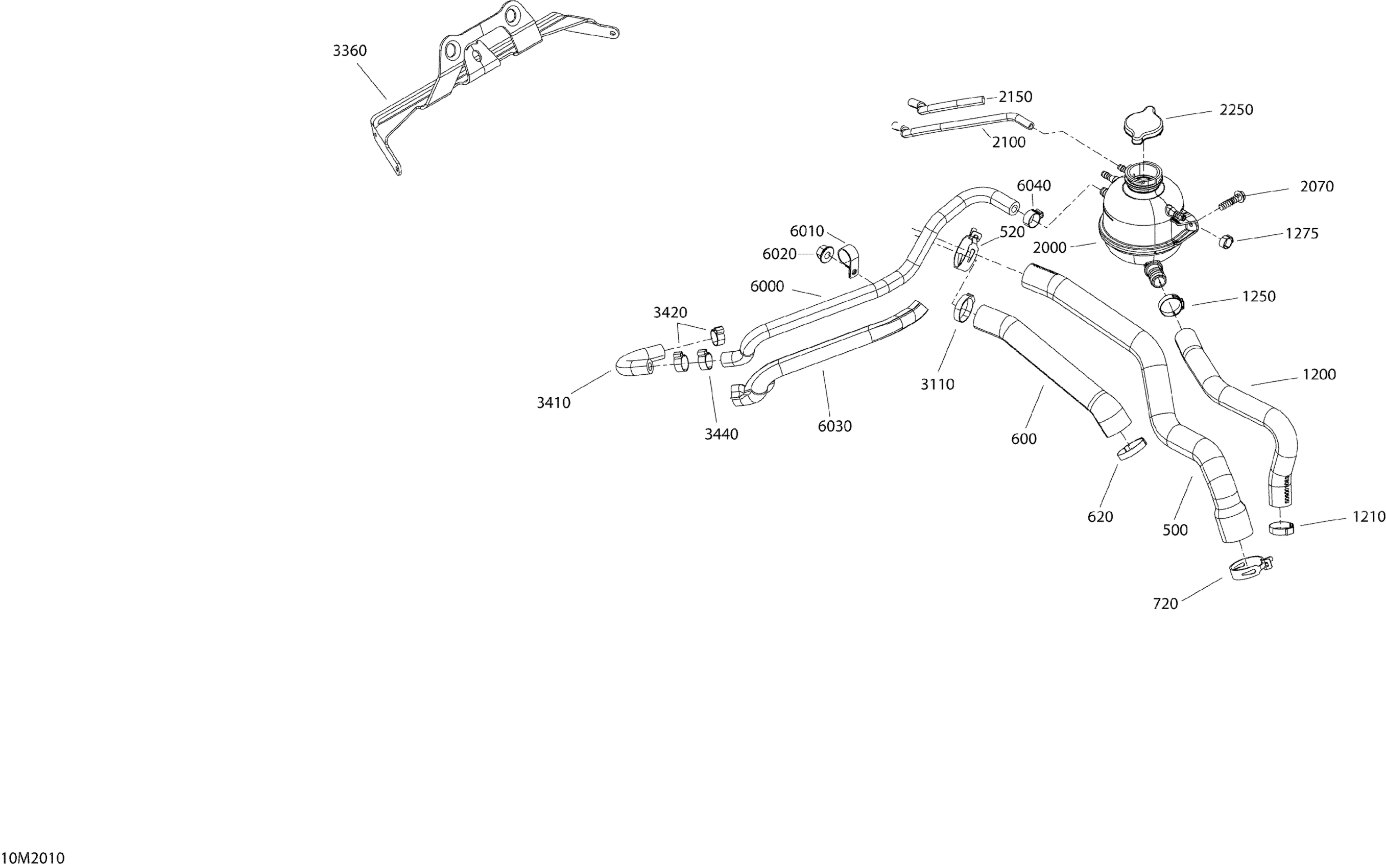

Ski-Doo 010 - RENEGADE 900 ACE Turbo - ADRENALINE - North America, 2020 03- Cooling - System Diagram

Description

Price

500

Hose Radiator In

509001079

$14.49

520

Norma Spring Clamp

293650264

$4.44

600

Not Available As Spare Part - Friction Washer

Unavailable

720

Norma Spring Clamp

293650264

$4.44

1200

Coolant Tank Hose

509001083

$14.49

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1210

Crimp Clamp

293650099

$4.29

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Cooling Tank

509001012

$91.99

2070

Hex. Flange Screw K50 X 20

241152060

$1.99

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

2150

Protector Tube

504153074

$14.49

2250

Radiator Pressure Cap

509000180

$20.49

3360

Central Radiator Support

509001023

$19.49

3410

Hose

509001090

$23.49

3420

Oetiker Clamp

293650011

$3.09

3440

Oetiker Clamp

293650011

$3.09

6000

Hose

509001092

$14.49

6010

Clamp

512061265

$6.19

6020

Hex. Flange Nut M6

233061414

$1.68

6030

Tube 25Mm 1000Mm Long | Engine 450

219704350

$53.99

6040

Oetiker Clamp

293650011

$3.09
