Description

Price

10

Front Bottom Pan

502008638

$184.99

10

Front Bottom Pan

502008638

$184.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

90

LH Lower Bottom Pan Foam

502007799

$7.89

400

RH Bottom Pan

502007737

$134.99

400

RH Bottom Pan

502007737

$134.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

510

Pop Rivet 3/16"

293150103

$0.55

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600b

Bottom Pan Door

502007676

$38.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

Foam

502008172

$14.49

660

Foam

502008172

$14.49

670

LH Rear Bottom Pan Foam

502008173

$2.29

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

700

Heat Shield

502008087

$7.09

710

Stopper

502008149

$1.99

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.79

720

Reflective Sheet

502008156

$4.79

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

800

Front Bumper | Includes 800 to 800b

502007869

$164.49

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

850

RH Bumper Reinforcement

502007762

$13.49

850

RH Bumper Reinforcement

502007762

$13.49

855

Hex. Flange Screw M6 X 16

207661644

$0.74

855

Hex. Flange Screw M6 X 16

207661644

$0.74

860

LH Bumper Reinforcement

502007763

$13.49

860

LH Bumper Reinforcement

502007763

$13.49

865

Hex. Flange Screw M6 X 16

207661644

$0.74

865

Hex. Flange Screw M6 X 16

207661644

$0.74

910

Torx Screw M6 X 25

250000758

$2.11

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

RH Bottom Pan Panel

502007871

$56.99

1600

RH Bottom Pan Panel

502007871

$56.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1660

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1800

LH Panel

502007872

$56.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47

1830

Tuflok Plastic Rivet

293150230

$1.47

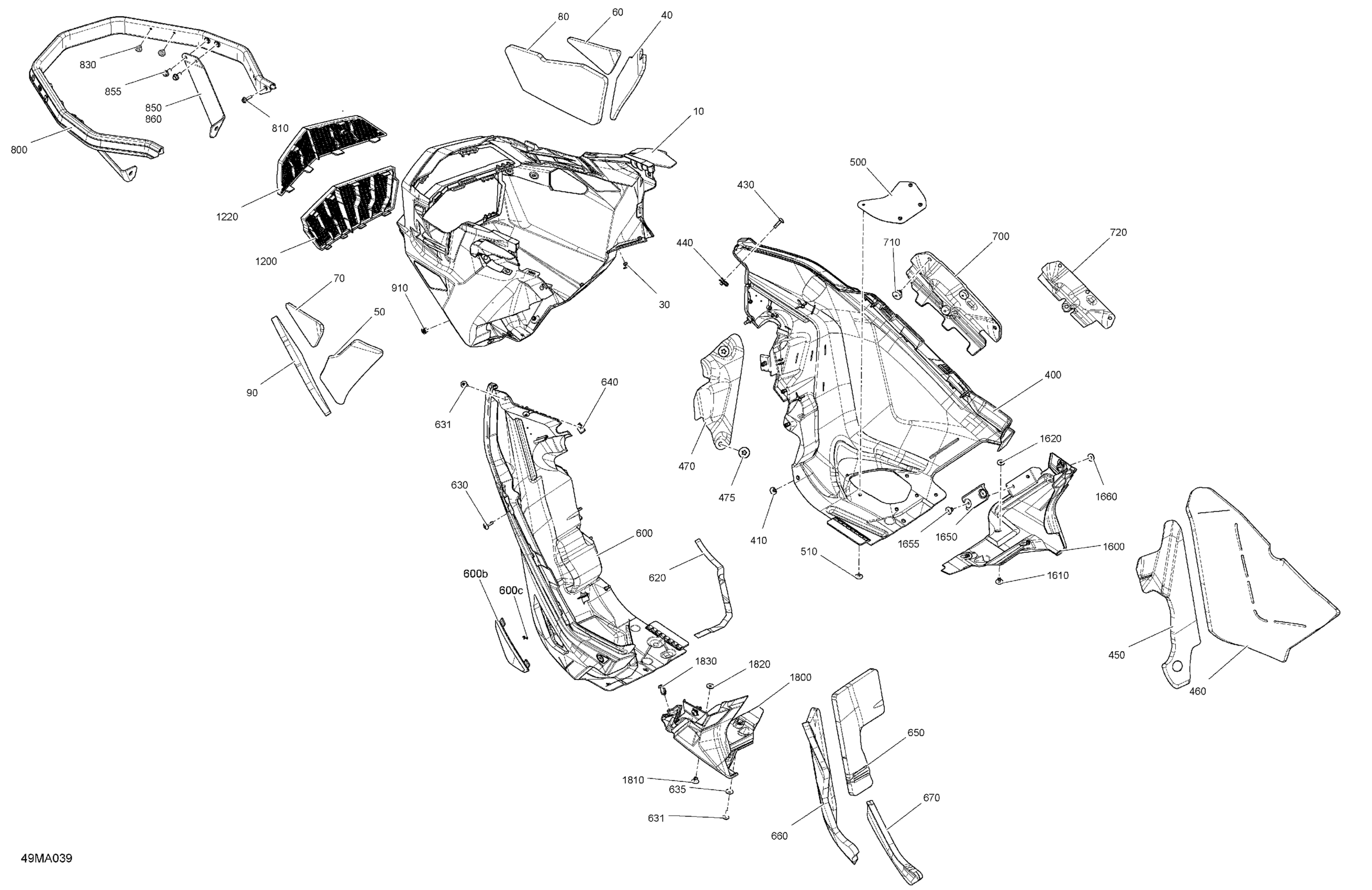

Ski-Doo RENEGADE 900 ACE - Adrenaline_Enduro - 2021 Body - Bottom Pan - Enduro Diagram

Front Bottom Pan

Front Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16" | DS 650 X

RH Upper Bottom Pan Foam

RH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

LH Upper Bottom Pan Foam

RH Bottom Pan Central Foam

RH Bottom Pan Central Foam

LH Bottom Pan Central Foam

LH Bottom Pan Central Foam

RH Lower Bottom Pan Foam

RH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

LH Lower Bottom Pan Foam

RH Bottom Pan

RH Bottom Pan

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16" | DS 650 X

Torx Truss M5 X 20

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Panel Nut M5 X 0.8

RH Front Bottom Pan Foam

RH Front Bottom Pan Foam

RH Rear Bottom Pan Foam

RH Rear Bottom Pan Foam

Heat Shield

Heat Shield

Push Nut

Push Nut

Plate

Plate

Pop Rivet 3/16"

Pop Rivet 3/16"

LH Bottom Pan Ass'y | Includes 600 to 600c

LH Bottom Pan Ass'y | Includes 600 to 600c

Bottom Pan Door

Bottom Pan Door

Hairpin Cotter

Hairpin Cotter

Gasket, Neoprene 2000Mm Long

Gasket, Neoprene 2000Mm Long

Torx Truss M5 X 20

Torx Truss M5 X 20

Torx Truss M5 X 20

Torx Truss M5 X 20

Washer M5

Washer M5

Panel Nut M5 X 0.8

Panel Nut M5 X 0.8

LH Bottom Pan Upper Foam

LH Bottom Pan Upper Foam

Foam

Foam

LH Rear Bottom Pan Foam

LH Rear Bottom Pan Foam

Heat Shield

Heat Shield

Stopper

Stopper

Reflective Sheet

Reflective Sheet

Front Bumper | Includes 800 to 800b

Front Bumper | Includes 800 to 800b

Hex. Flange Screw M5 X 20, Scotch Grip

Hex. Flange Screw M5 X 20, Scotch Grip

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16" | DS 650 X

RH Bumper Reinforcement

RH Bumper Reinforcement

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

LH Bumper Reinforcement

LH Bumper Reinforcement

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

Torx Screw M6 X 25
