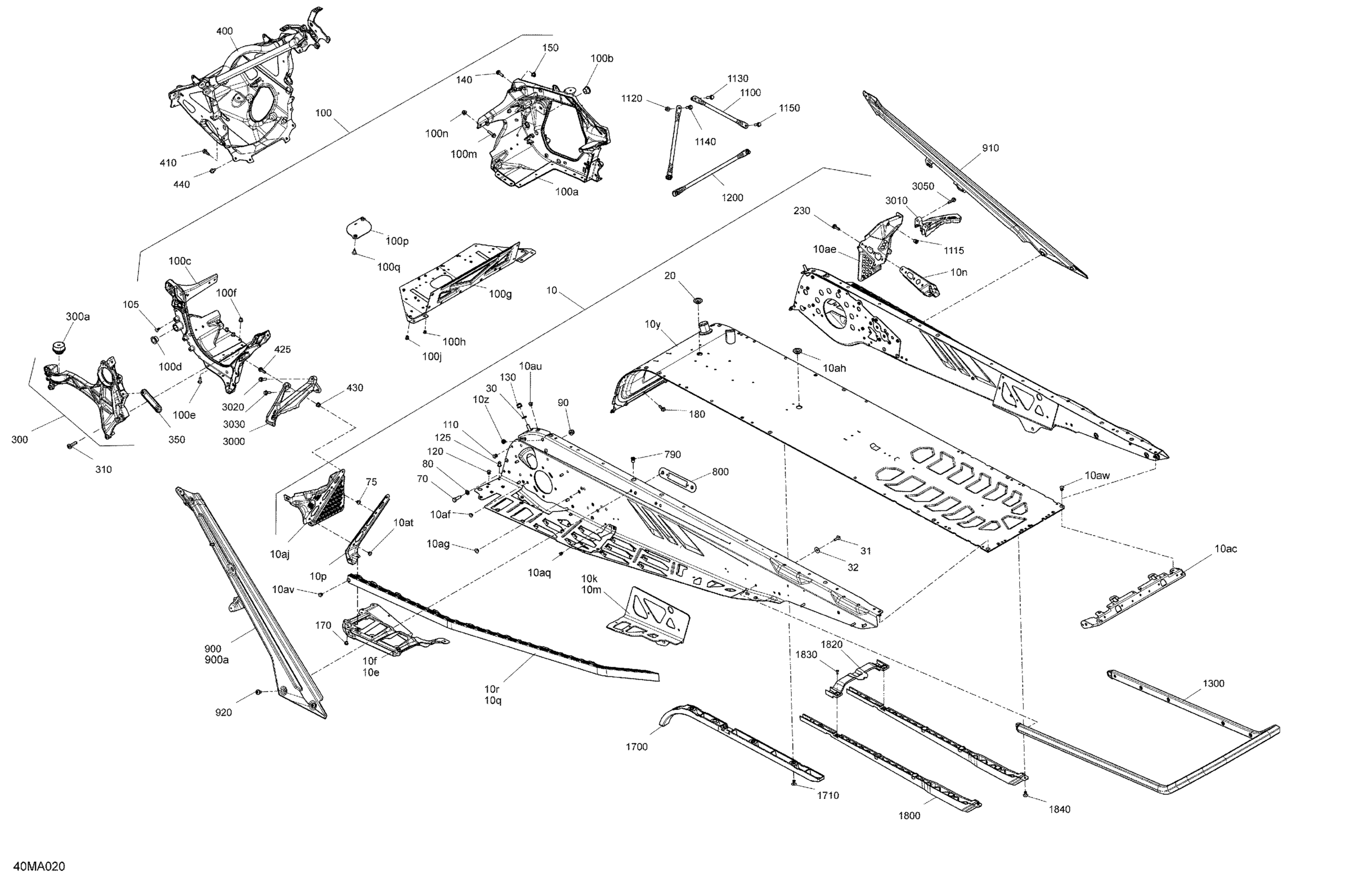

Ski-Doo RENEGADE 900 ACE - Adrenaline_Enduro - 2021 Frame - System - Enduro Diagram

Deep Black, Chassis Tunnel Module 137" | Includes 10 to 10ar

415130545

$2,911.16

Deep Black, RH Footrest Reinforcement

518330738

$79.82

Deep Black, LH Footrest Reinforcement

518331523

$79.82

RH Suspension Bracket

518329627

$75.34

LH Suspension Bracket

518329628

$75.34

Stirrup Reinforcement

518331253

$17.88

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

RH Roller

518329648

$175.34

LH Roller

518328452

$175.34

Radiator Tunnel 137 Ass'y

518334488

$682.06

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Rear Cap

518328990

$20.12

RH Footrest

518330691

$20.12

Black, Dart 8 mm

293730047

$2.07

Black, Dart 10 mm

293730060

$4.28

Black, Plug

293730052

$6.18

LH Foot Protector

518331559

$23.10

Rivet Avibulb 3/16

293150203

$0.28

Hemlock Rivet, 6.5 mm

293150096

$3.07

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Flat Washer 8 mm

234081410

$0.79

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Hex Screw M8 X 30

250000942

$1.06

Hemlock Rivet, 6.5 mm

293150096

$3.07

Flat Washer 8 mm

234081410

$0.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$553.70

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$181.31

Leg Bushing

505072690

$5.75

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

Leg Bushing

505072690

$5.75

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

Collar Huck Magna-Grip 6.4

293150149

$0.36

Bottom Plate

518332715

$33.55

Rivet Avibulb 3/16

293150203

$0.28

Insert M5 X 0.8

293450268

$1.90

Hex. Flange Screw M6 X 25

250000945

$4.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Oil Plate

518329454

$14.88

Torx Truss Screw M6 X 12

250000767

$1.91

Dart

293730079

$1.87

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Hemlock Rivet 6.5 mm

293150120

$7.01

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M6 X 20

207662046

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 16

207661646

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

LH Side Member Ass'y | Includes 300 to 300b

518333691

$176.09

Vibration Damper

512061516

$55.94

Screw-Pan HD.Torx M8X30

250001060

$0.75

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.40

Chassis Suspension Module

518334461

$633.55

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

Hex. Flange Screw M6 x 35

207663546

$0.99

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Insert

293450278

$3.97

Member Fixation Plate

518329480

$9.73

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$105.19

Pan Head Torx Screw M8 X 12

250000887

$1.79

Upper Colomn Support

518329370

$20.12

Insert

293450275

$11.36

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 25

207662556

$4.15

Hex. Flange Screw M6 X 20

207662046

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Center Column Support

518329755

$3.36

Rear Bumper | Includes 1300 to 1300c

518330033

$105.94

Front Protector

518329982

$17.13

Pop Rivet 3/16”

293150108

$1.19

Rear Protector

518329979

$7.33

Support

520001545

$3.30

Torx Truss PT K40 x 12

250001131

$2.00

Pop Rivet 3/16”

293150108

$1.19

Black Toe-hold

518330358

$22.36

Toe Hold

518329134

$15.64

Hex. Flange Screw M6 X 25

250000793

$2.00

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Hex Screw Forming M6 x 25

250001124

$1.88
