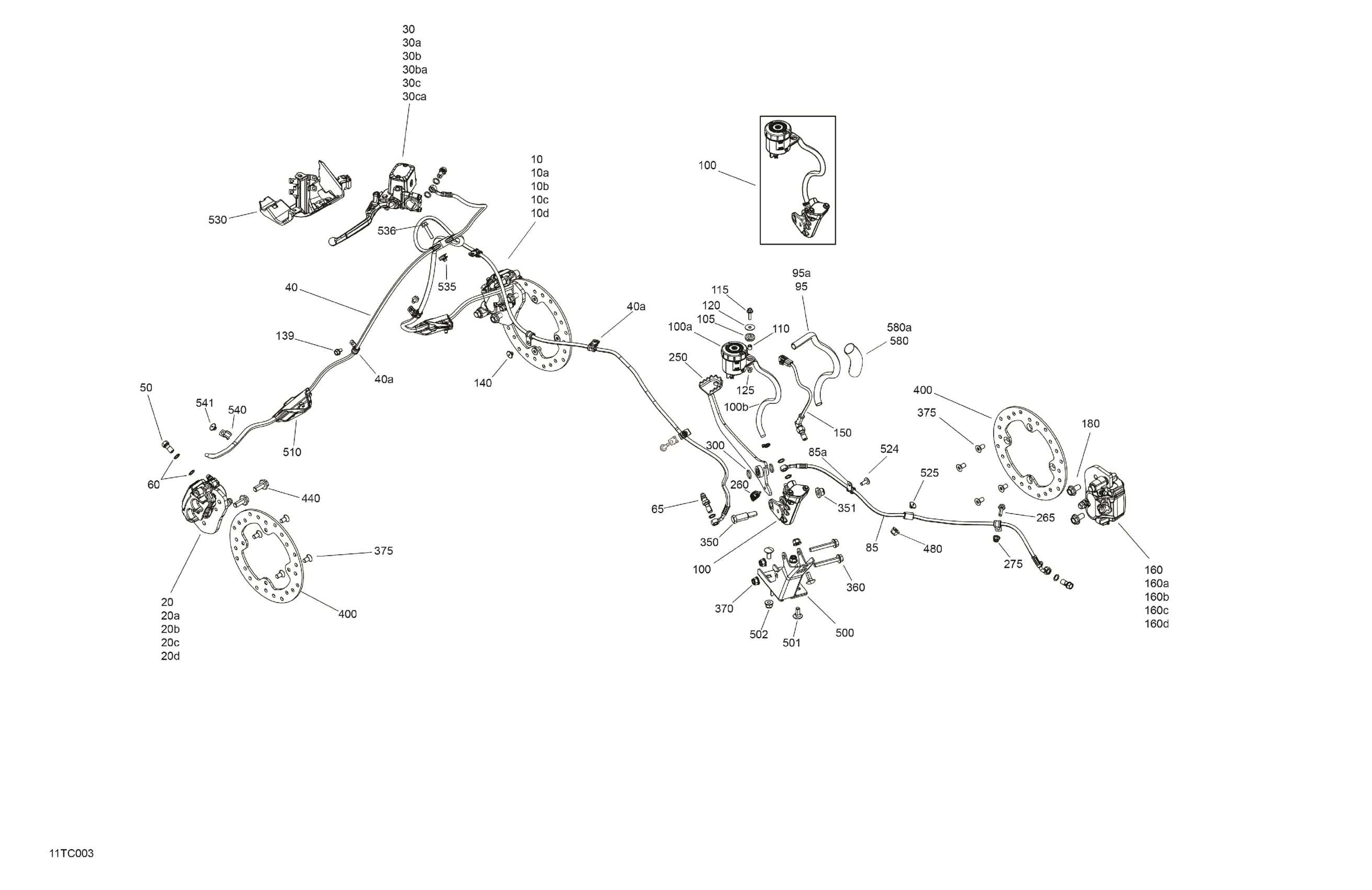

Can-Am Outlander MAX 850 EFI - DPS - 2023 Mechanic - Brake System Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10a

RH Organic Brake Pad Kit

705601014

$42.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20a

Pin Set

705601016

$9.26

20b

Bleeding Screw

705601017

$6.35

20c

Retaining Spring

705601018

$7.55

20d

LH Organic Brake Pad Kit

705601015

$42.49

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30ba

Hex. Flange Screw M6 X 25

250000447

$2.11

30c

Cap Set

219800096

$21.99

30ca

Screw M4 X 20

415129356

$2.22

40

Brake Line | Includes 40 to 40a

705601686

$179.99

40a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Washer

414920600

$1.90

65

Bleeding Screw

705601051

$12.16

85

RH Rear Hose

705601302

$41.49

85

RH Rear Hose | Includes 85 to 85a

705602057

Unavailable

85a

Clamp

293650256

$5.49

95

Tubing 10 MM 1000MM Long

219704407

$2.79

95a

Tubing 10 mm

415079900

Unavailable

100

Rear Master Cylinder | Includes 21 to 23

705601273

$269.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.79

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.90

120

Flat Washer

224060201

$1.26

125

Flange Elastic Nut M5

233251434

$2.00

139

Hex. Flange Screw M6 X 16

210261640

$2.11

140

Pop Rivet 3/16"

390406500

$0.88

150

Brake Switch

705601250

$59.49

160

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

160a

Pin Set

705601016

$9.26

160b

Bleeding Screw

705601017

$6.35

160c

Retaining Spring

705601018

$7.55

160d

RH Organic Brake Pad Kit

705601014

$42.49

180

Hex. Flange Screw M10 X 20

207502046

$2.11

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.00

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.77

351

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Hex. Flange Screw M8 X 55

207685544

$5.39

370

Hex. Flange Elastic Nut M8

233281414

$1.47

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Disc Brake

705600999

$67.99

440

Hex. Flange Screw M10 X 25

207502546

$2.11

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.90

502

Hex. Flange Elastic Nut M8

233281414

$1.47

510

Front Hose Guard

705602016

$4.55

524

Torx Screw M6 X 16

250000755

$0.87

525

Pop Rivet 3/16"

390402400

$0.35

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.11

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

540

Open Clamp

518321570

$7.69

541

Pop Rivet 3/16"

390402300

$0.75

580

Tubing 25 MM 1000MM Long

219704402

$15.99

580a

Tubing 25 mm

710009586

$15.35
