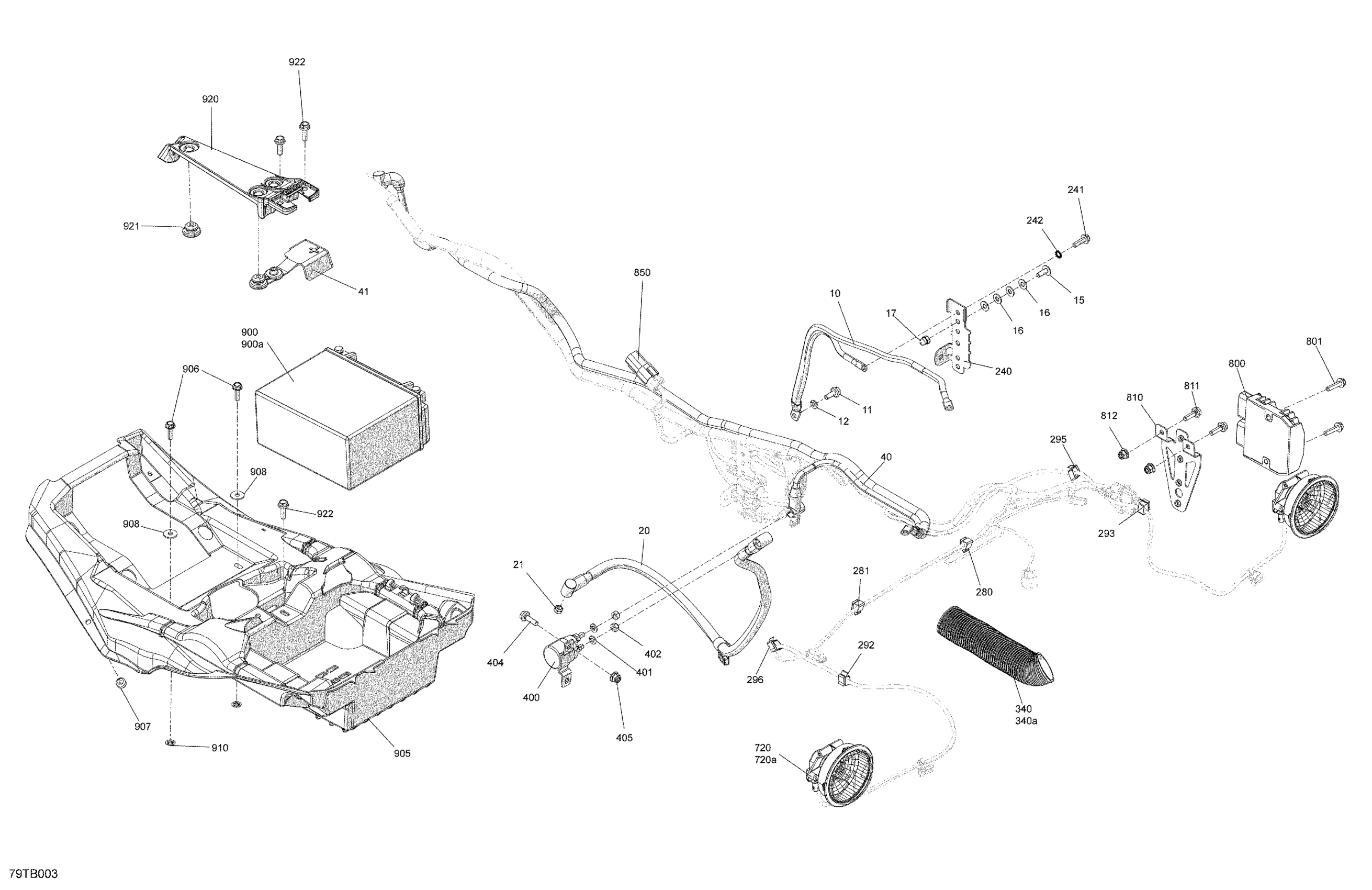

Can-Am Outlander MAX 650 EFI - XT - 2022 Electric - Rear Section Diagram

#

Description
Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561434

$1.99

40

Cable

710007437

$32.99

41

Battery Cable Cap

710006729

$7.20

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

292

Clip

414227300

$1.67

293

Clip

414227300

$1.67

295

Clip

414227300

$1.67

296

Clip

414227300

$1.67

340

Tubing 35 mm

515176260

Unavailable

340a

Tubing 35 mm

515176260

Unavailable

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561434

$1.99

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

720a

Bulb

520000758

$9.10

800

Voltage Regulator

710005842

$189.99

801

Hex Screw Forming M6 x 25

250001124

$2.40

810

Rectifier Support

710001752

$9.29

811

Hex. Flange Screw M6 X 20

207662044

$2.00

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

850

Housing

710003006

$8.79

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

910

Push Nut

732610072

$2.19

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01
