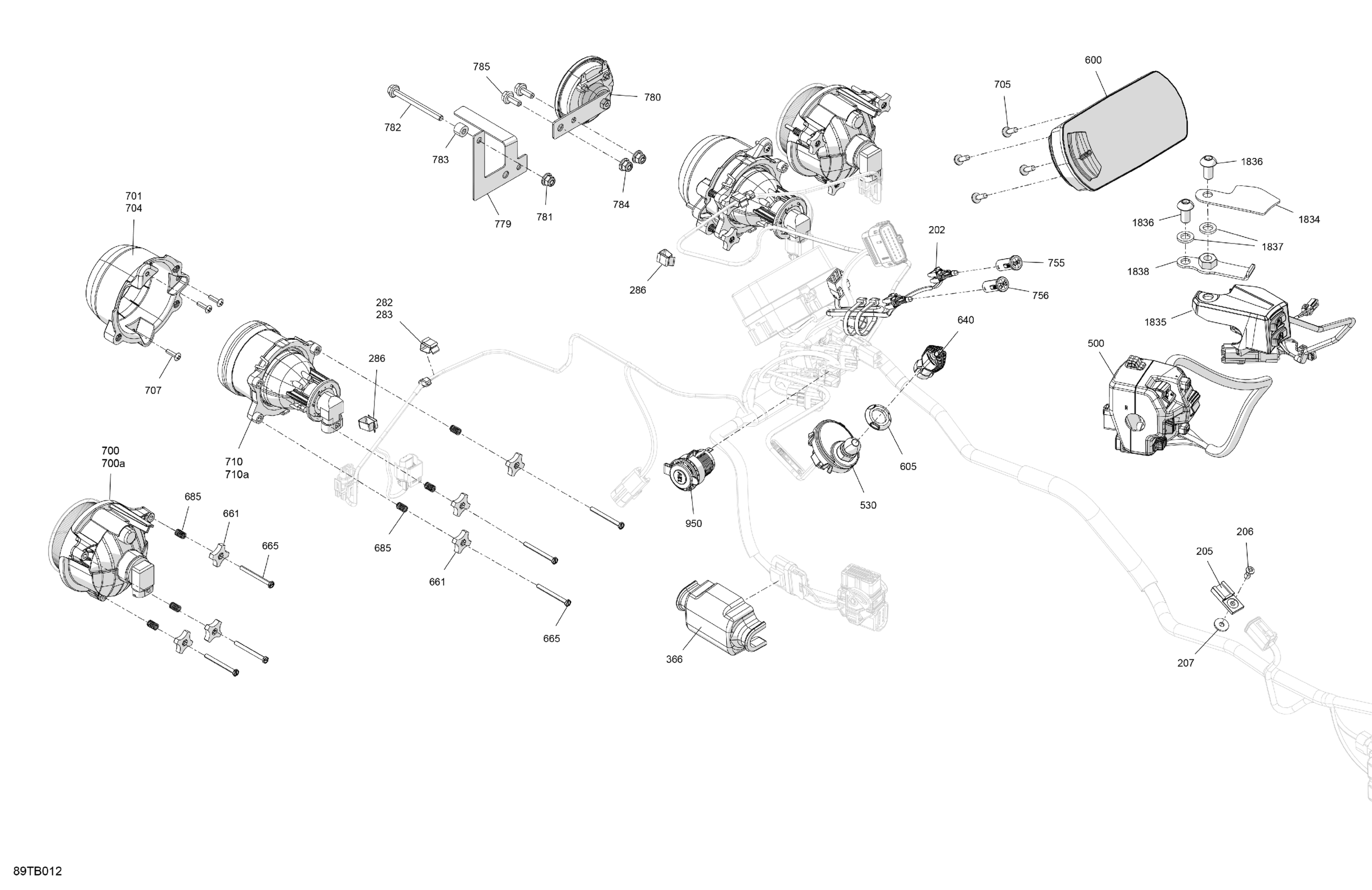

Can-Am Outlander T MAX 1000 EFI - XU+ - T Regulation, 2022 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

283

Clip

710010204

$1.40

286

Clip

710010204

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

LH Front Switch Housing

710006672

$228.33

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge Compact Mono

710008108

$364.90

605

Specialized Nut

278004274

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

705

Torx Screw K50 X 16

250000720

$1.39

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

779

Horn Support

710006113

$10.82

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$9.91

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1838

Housing Switch Support

710009590

$32.81
