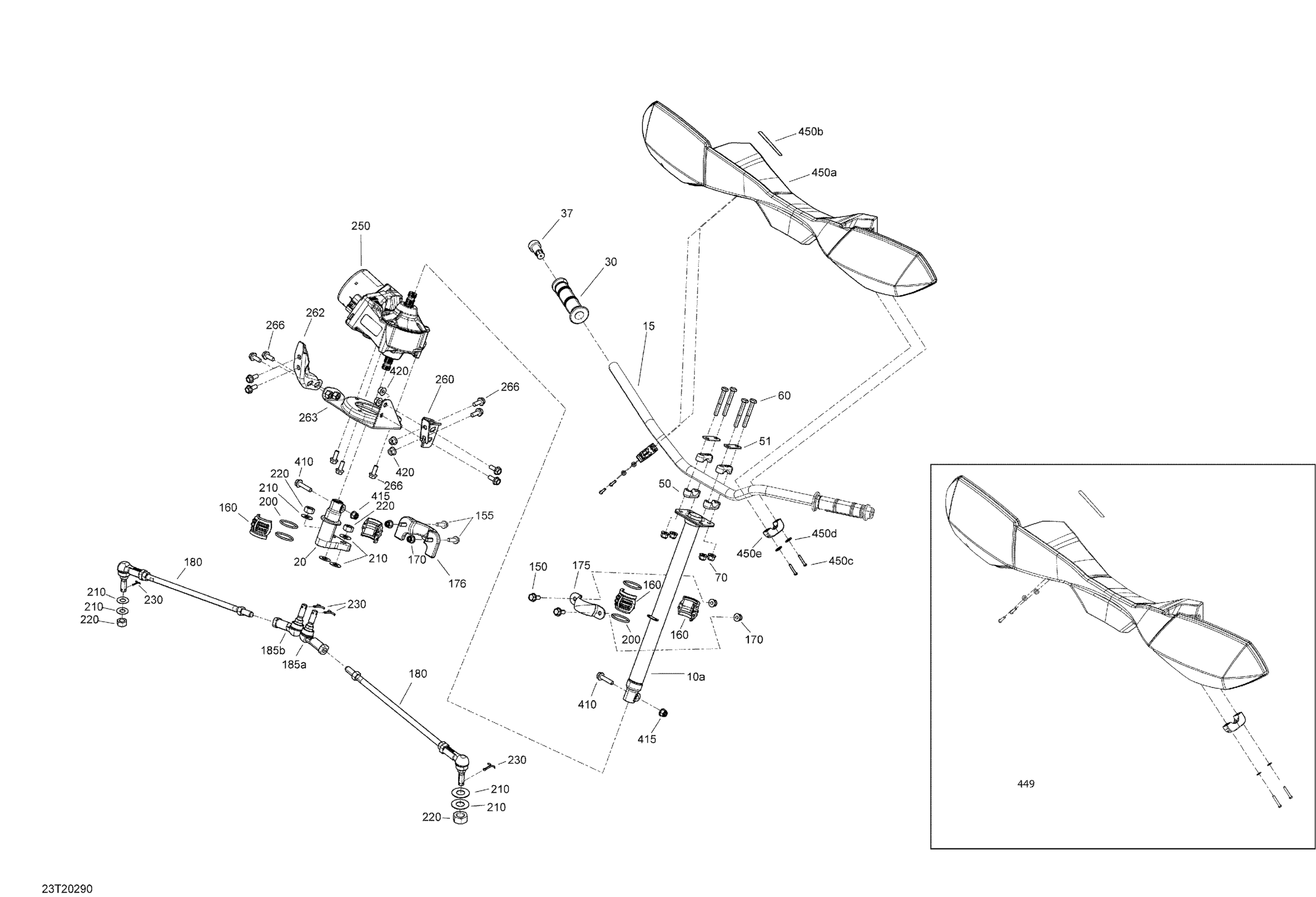

Can-Am 010 - Outlander MAX 650 EFI - XT - International - Non-European Communities, 2020 07- Steering Diagram

Main Tube Kit | Model With DPS

703501108

Unavailable

Black, Handle Bar

709401240

Unavailable

Pitman Arm | Model With DPS Except XMR

703501160

Unavailable

Handle Grip

709400493

Unavailable

End Piece

709400449

Unavailable

Steering Support

709401799

Unavailable

Stiffner

709400509

Unavailable

Hex. Screw M8 X 60

207086046

Unavailable

Hex. Elastic Flange Nut M8

233281416

Unavailable

Hex. Flange Screw M8 X 20

207682044

Unavailable

Hex. Flange Screw M8 X 25

207682544

Unavailable

Spherical Half Bushing

709400783

Unavailable

Hex. Flange Elastic Nut M8

233281414

Unavailable

Upper Column Attachment

709400827

Unavailable

Column Attachment

709401428

Unavailable

Tie-Rod Ass`y | Includes 180 to 180b

703501039

Unavailable

LH Ball Joint

709402303

Unavailable

RH Ball Joint

709402302

Unavailable

O-Ring

293300068

Unavailable

Hardened Washer

706200281

Unavailable

Nut M12

250100099

Unavailable

Cotter Pin

211400013

Unavailable

Power Steering Ass'y | Model With DPS

709403187

Unavailable

LH Power Steering Bracket | Model With DPS

709402184

Unavailable

RH Bracket | Model With DPS

709402185

Unavailable

Power Steering Support | Model With DPS

709401743

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

Hex. Flange Screw M8 X 35

250000986

Unavailable

Hex. Elastic Flange Nut M8

233281416

Unavailable

Hex. Flange Nut M8

233081416

Unavailable

Handle Guard Ass'y, XT

703100352

Unavailable

Handle Bar Protector | XT

709400822

Unavailable

DPS Decal

704902966

Unavailable

Hex. Flange Screw K40 X 25

241142560

Unavailable

Flat Washer | XT

211200035

Unavailable

U-Clamp | XT

517303264

Unavailable
