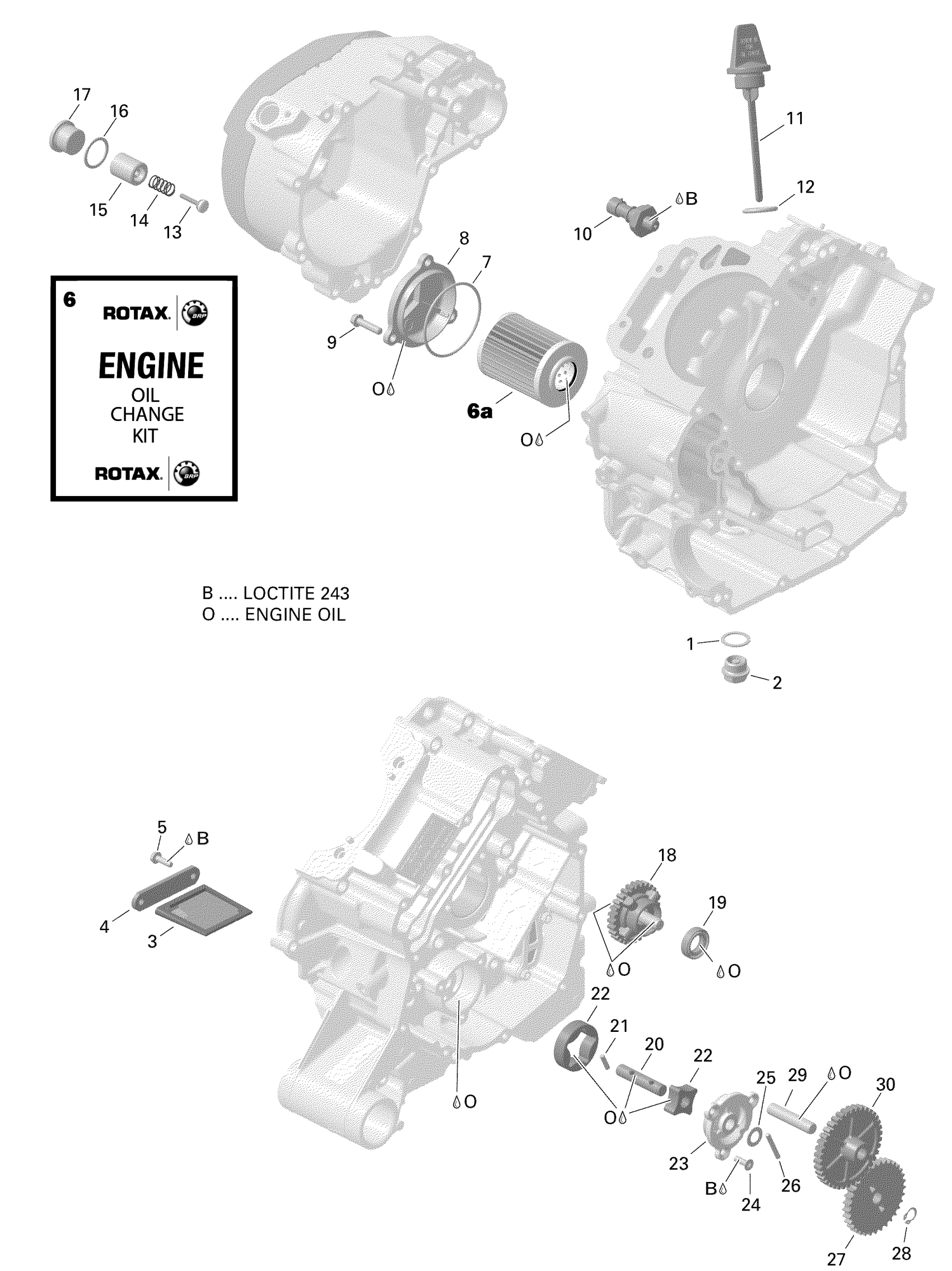

Can-Am Outlander 650 EFI - STD_DPS_XT_HUNTING - 2020 Engine Lubrication Version 1 Diagram

#

Description
Price

1

Copper Washer

420250640

$0.98

2

Plug screw

420841924

$14.28

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420210661

$14.28

5

Taptite Screw M5 X 16

420941928

Unavailable

6

4T 10W-50 Synthetic Oil Change Kit for Rotax 500 cc or more V-Twin engine

9779252

$70.99

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.99

6

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$72.99

6a

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420256915

$40.99

11

Oil Dipstick

420256802

$17.05

12

O-Ring

420631640

$2.11

13

Pressure Relief Valve

420656370

$19.19

14

Compression Spring

420939485

$12.99

15

Housing

420256487

$7.41

16

Gasket Ring

420650465

$13.16

17

Plug Screw

420640271

$13.77

18

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

19

Oil Seal

420430555

$19.99

20

Oil Pump Shaft

420237059

$29.49

21

Needle Pin

420232731

$4.01

22

Oil Pump Rotor

420256348

$77.99

23

Oil Pump Cover

420210646

$48.49

24

Torx Head Screw M5 X 16

420640823

$1.90

25

Thrust Washer

420827590

$4.01

26

Needle Pin

420232431

$4.39

27

Oil Pump Gear, 33 Teeth

420434320

$13.77

28

Circlip

504152282

$3.17

29

Idle Gear, 38 Teeth

420434300

$13.77

30

Not Available As Spare Parts

XXX

Unavailable
